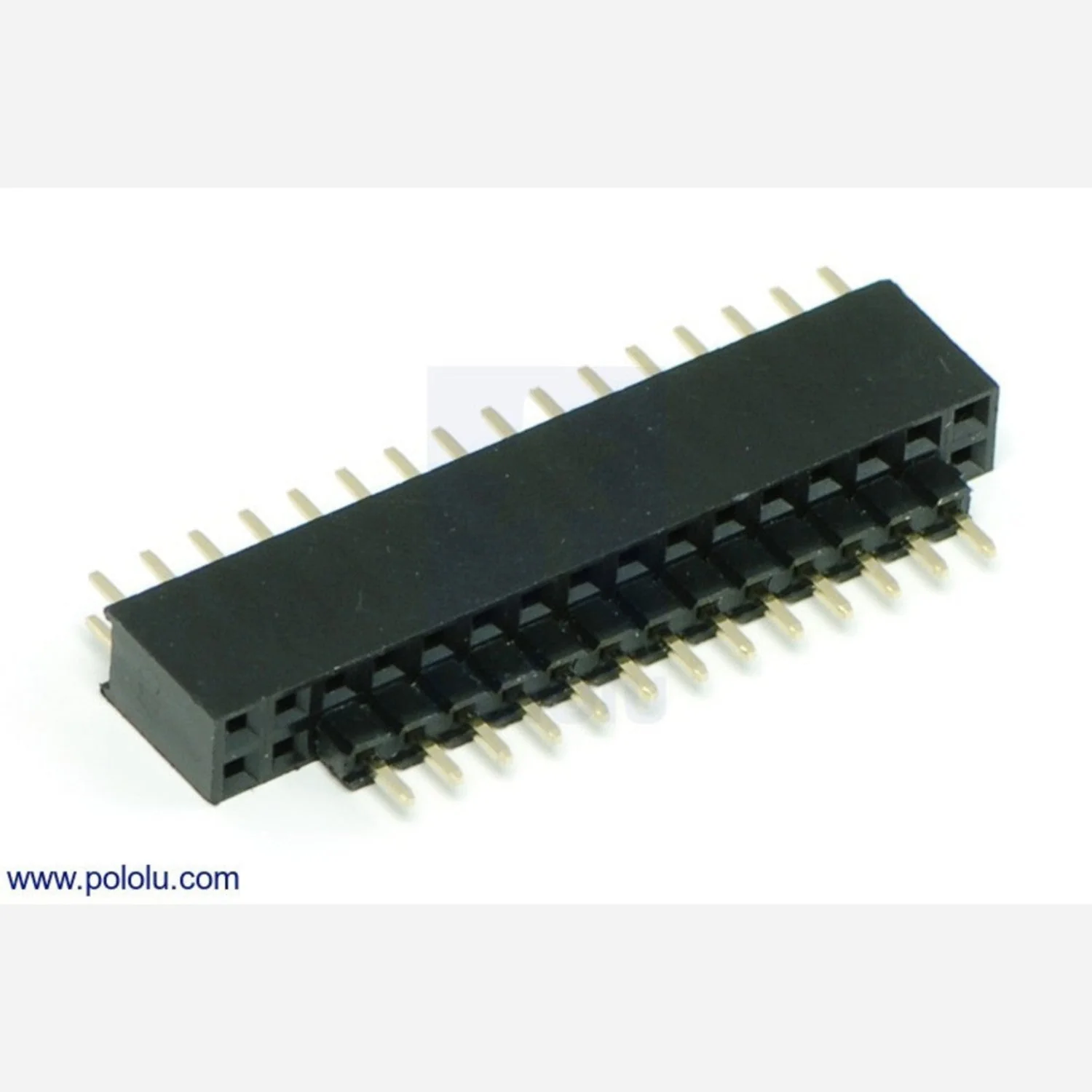

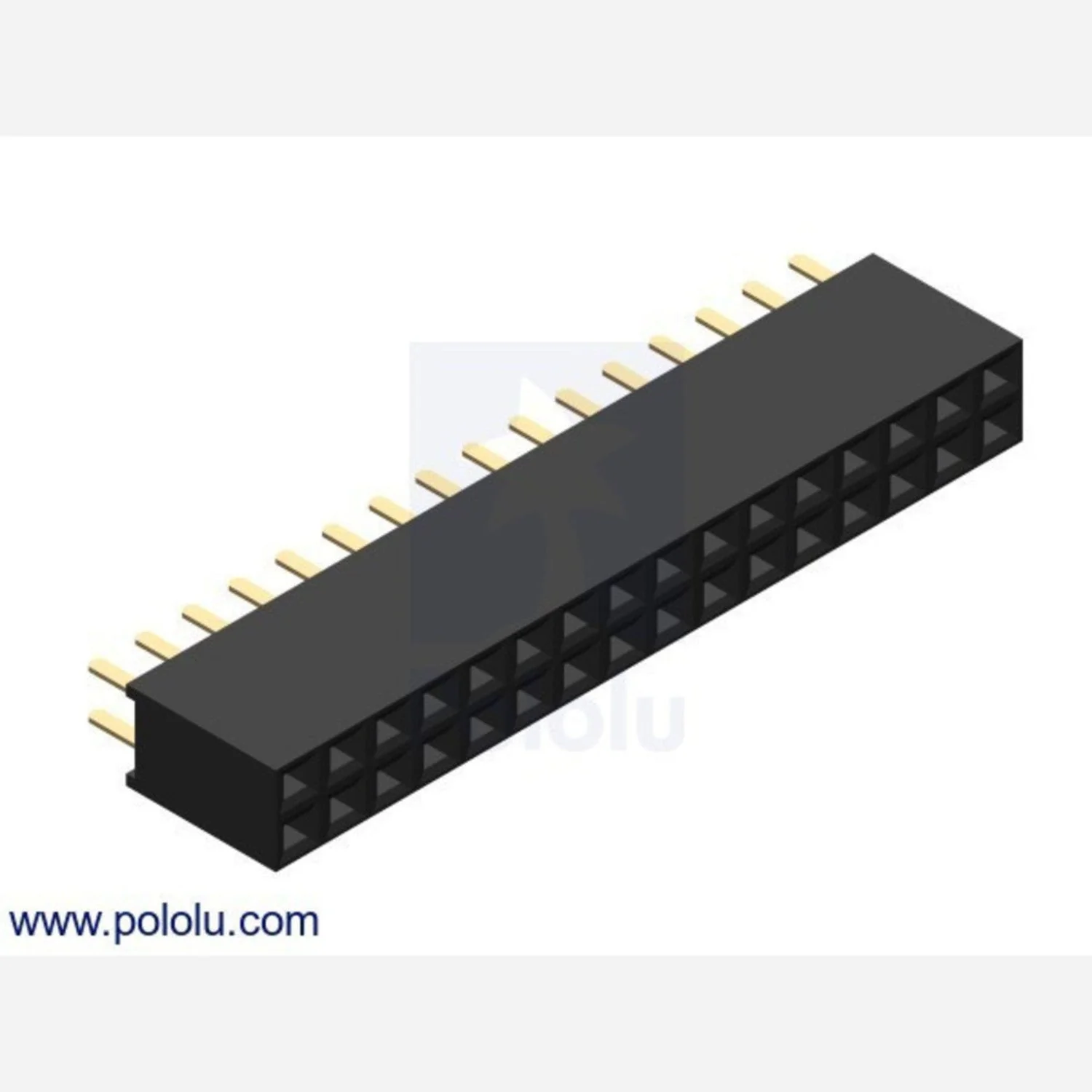

The 0.100″ (2.54 mm) 2×16-Pin Straight Female Header is a double-row, 32-pin socket strip designed to mate with standard 0.1″ pitch male headers. Its dual-row configuration makes it suitable for high-pin-count connections where board space is at a premium.

A 2×16 arrangement is commonly used for wide parallel bus interfaces, large breakout boards, and custom interconnects that require a dense pin layout.

Key Features

• 0.1″ (2.54 mm) Pitch – Industry-standard spacing compatible with perfboard and PCBs
• Straight Orientation – Mounts perpendicular to the PCB for standard vertical connections
• 2×16-Pin Configuration – Double-row, 32-position socket
• Through-Hole Mounting – Solders directly to standard PCBs

Ideal For

• Parallel bus and wide data interfaces
• Large breakout board connections
• Custom high-pin-count interconnects
• Prototyping and PCB design

Package Contents

• 1× 0.100″ (2.54 mm) 2×16-Pin Straight Female Header
