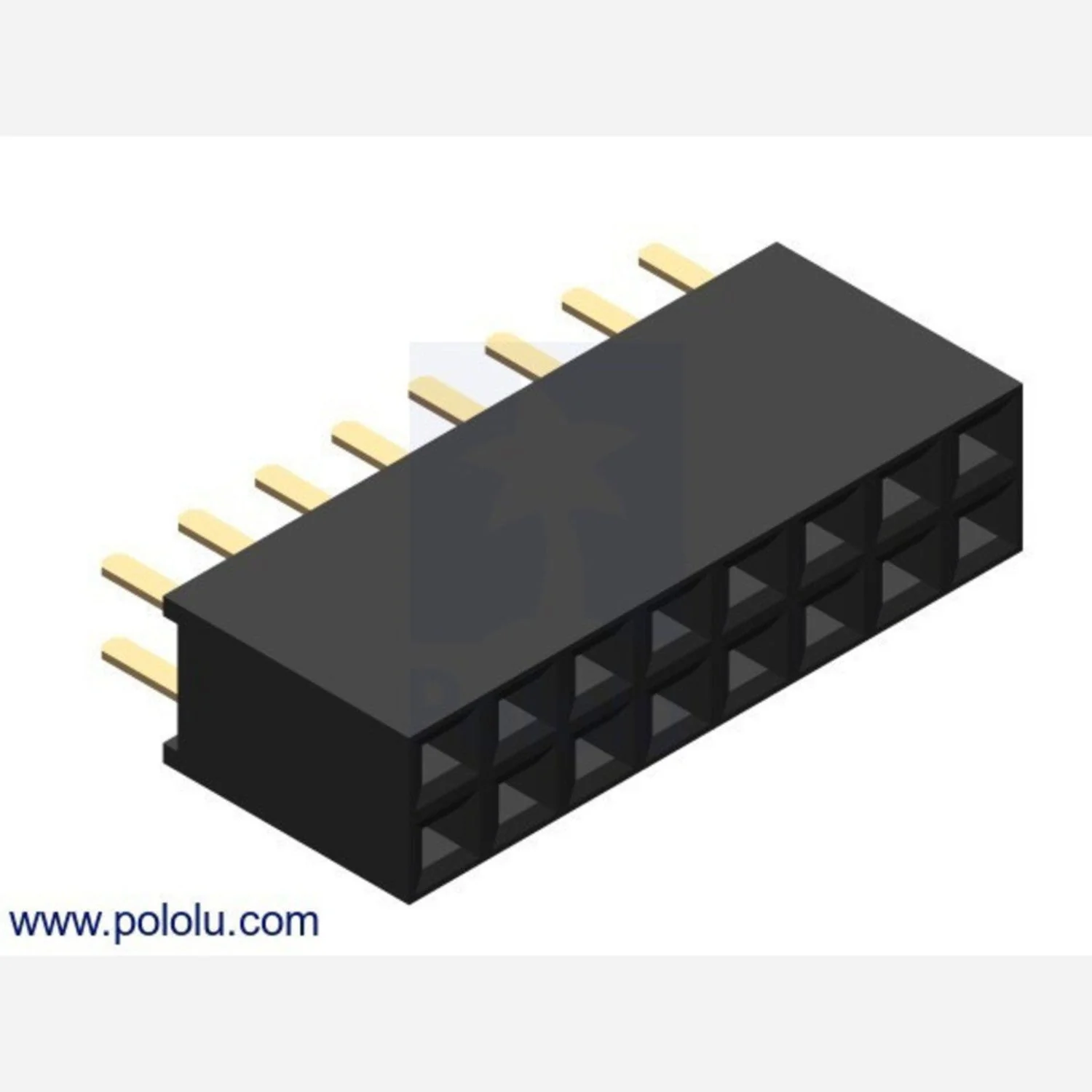

The 0.100″ (2.54 mm) 2×8-Pin Straight Female Header is a double-row, 16-pin socket strip designed to mate with standard 0.1″ pitch male headers. The 2×8 layout is a versatile medium-density connector used across a wide range of embedded and prototyping applications.

A 16-pin dual-row configuration is commonly used for LCD module interfaces, wider bus connections, and custom breakout boards that need a balance of pin count and compact size.

Key Features

• 0.1″ (2.54 mm) Pitch – Industry-standard spacing compatible with perfboard and PCBs
• Straight Orientation – Mounts perpendicular to the PCB for standard vertical connections
• 2×8-Pin Configuration – Double-row, 16-position socket
• Through-Hole Mounting – Solders directly to standard PCBs

Ideal For

• LCD and display module interfaces
• Wide bus and data connections
• Custom breakout boards
• Prototyping and board-to-board interconnects

Package Contents

• 1× 0.100″ (2.54 mm) 2×8-Pin Straight Female Header
