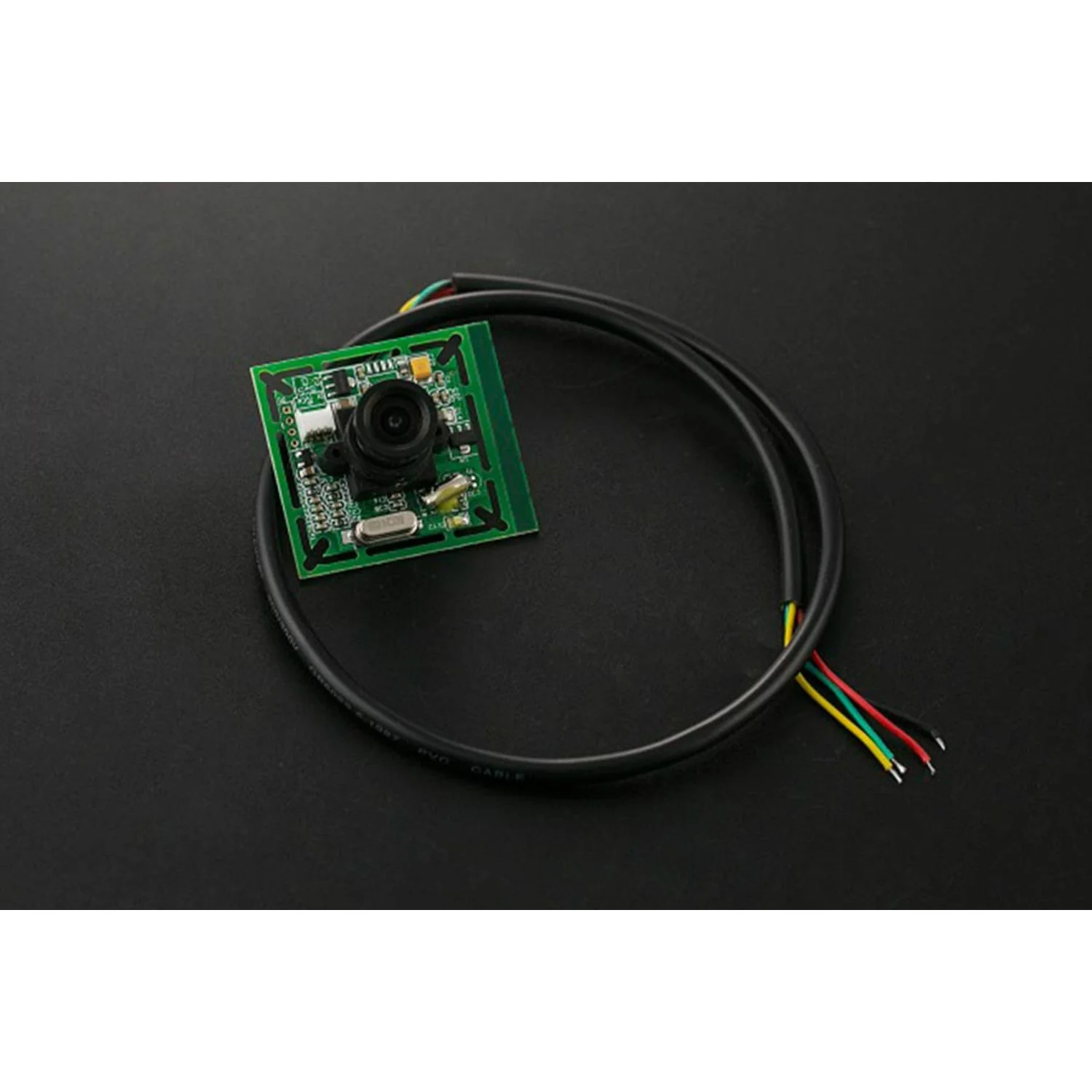

The ZM 0.3 Megapixel Serial JPEG Camera Module captures still images and transmits them over a serial (RS232) interface at up to 115200 bps. Built around the OmniVision OV7725 VGA colour sensor with built-in JPEG codec, this compact module requires no external DRAM and operates at low power.

With support for VGA, QVGA, and 160×120 resolutions, this camera is well suited for embedded imaging, remote monitoring, and robotics applications. A 5V supply and simple serial protocol make integration straightforward.

Key Features

• 0.3 Megapixel Sensor – OmniVision OV7725 VGA colour sensor
• Built-in JPEG Codec – Captures compressed images without external processing
• RS232 Serial Interface – Default 115200 baud for image transfer
• Multiple Resolutions – VGA, QVGA, and 160×120
• Low Power – 80–100 mA current consumption at 5V
• Compact Size – 38.35 × 38.35 × 32 mm

Specifications

• Supply Voltage: 5V DC
• Current Consumption: 80–100 mA
• Interface: RS232
• Resolutions: VGA / QVGA / 160×120
• Default Baud Rate: 115200
• Dimensions: 38.35 × 38.35 × 32 mm

Wiring (Included Cable)

• Red – +5V
• Black – GND
• Green – RS232 RX
• Yellow – RS232 TX

Ideal For

• Embedded imaging and control systems
• Security and remote monitoring
• Object detection and recognition
• Robotics, industrial, and vehicle applications

Package Contents

• 1× 0.3M Pixel Serial JPEG Camera Module
• 1× 4-Wire Cable

Resources

• 0.3M Pixel Camera Datasheet
• DFRobot Wiki / Tutorial
