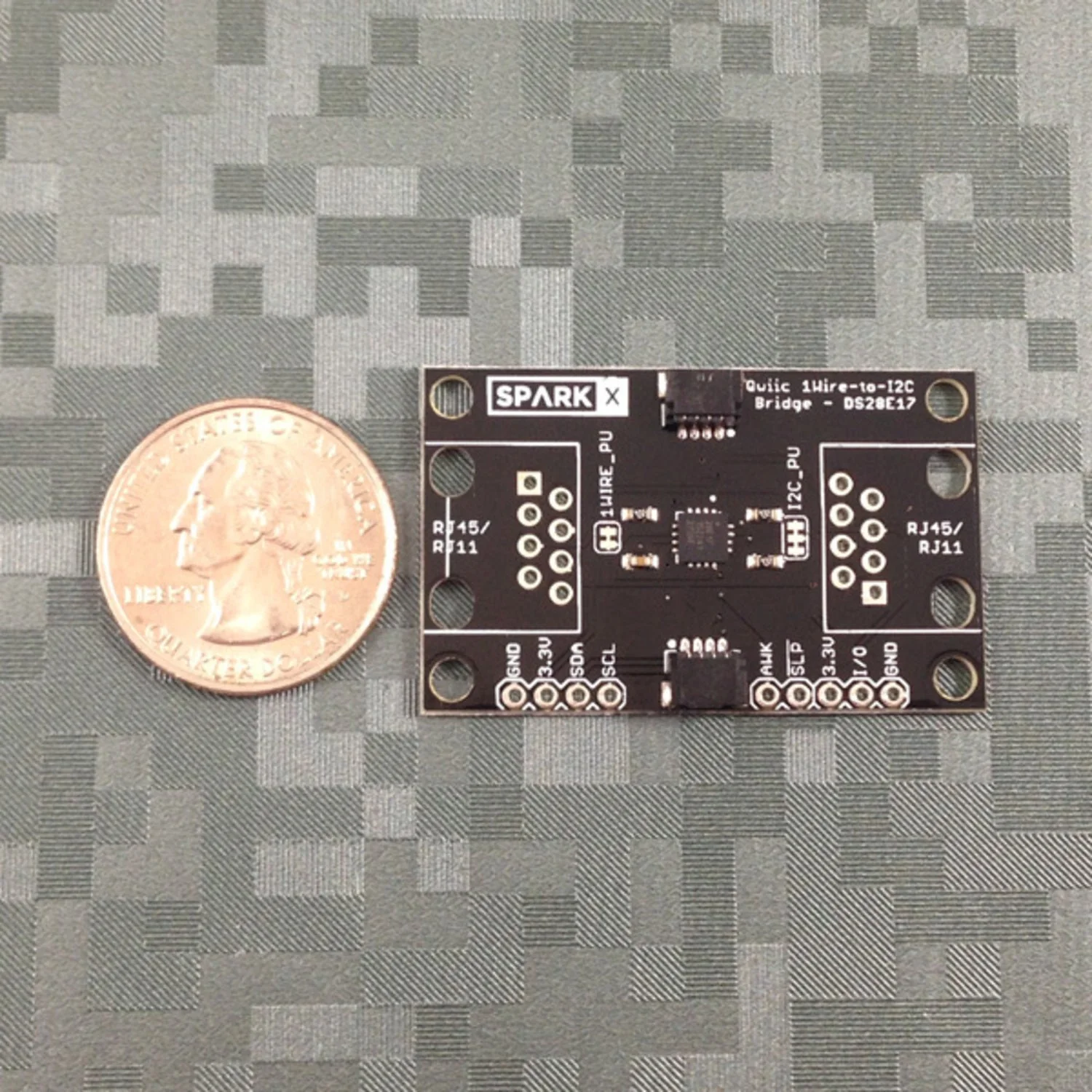

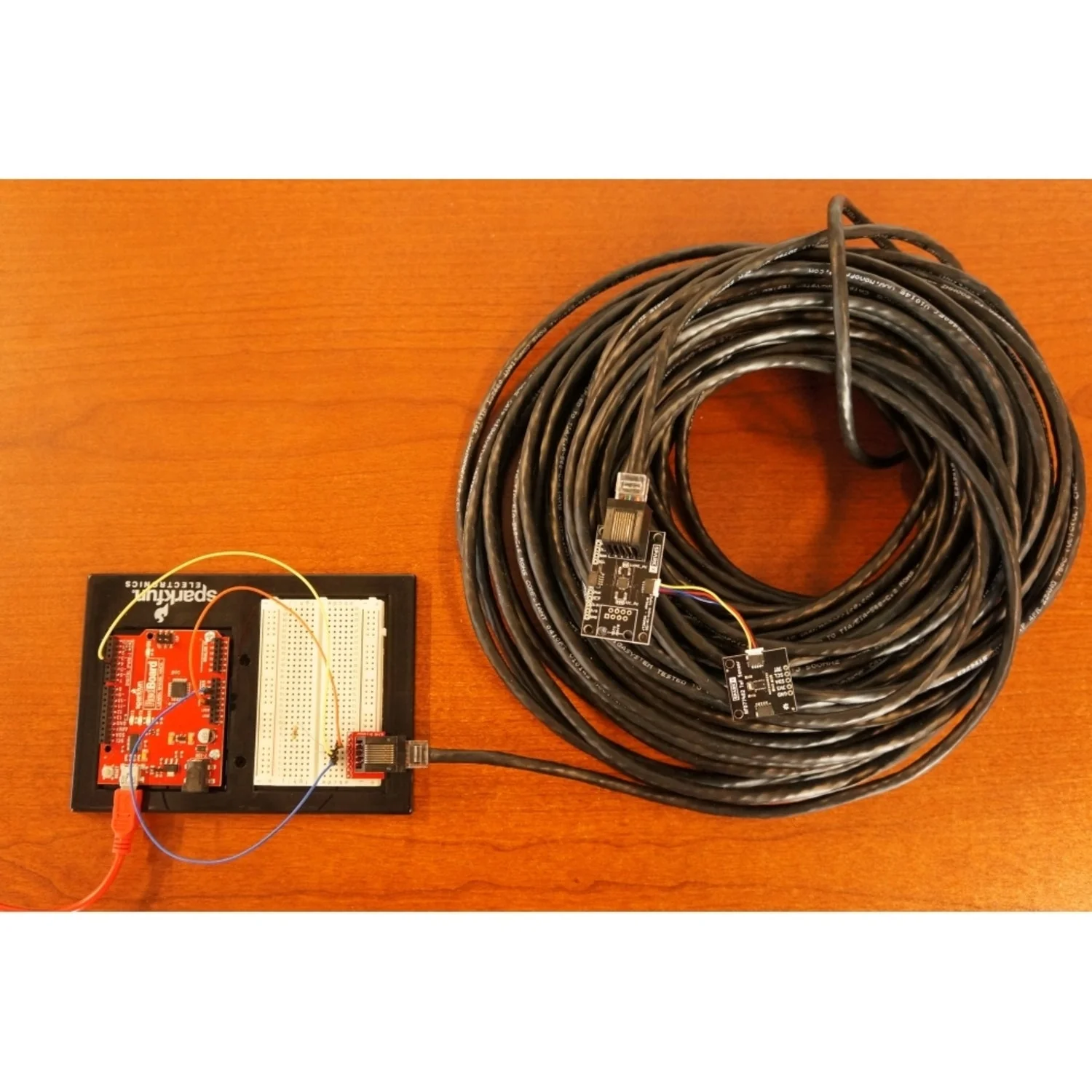

The 1-Wire to Qwiic Bridge lets you communicate via I2C over very long distances — up to approximately 100 metres depending on the application. It works by packetising I2C data as 1-Wire packets, sending them over the 1-Wire bus to the DS28E17 bridge chip, which translates them back to I2C for any connected slave device. Communication is bidirectional.

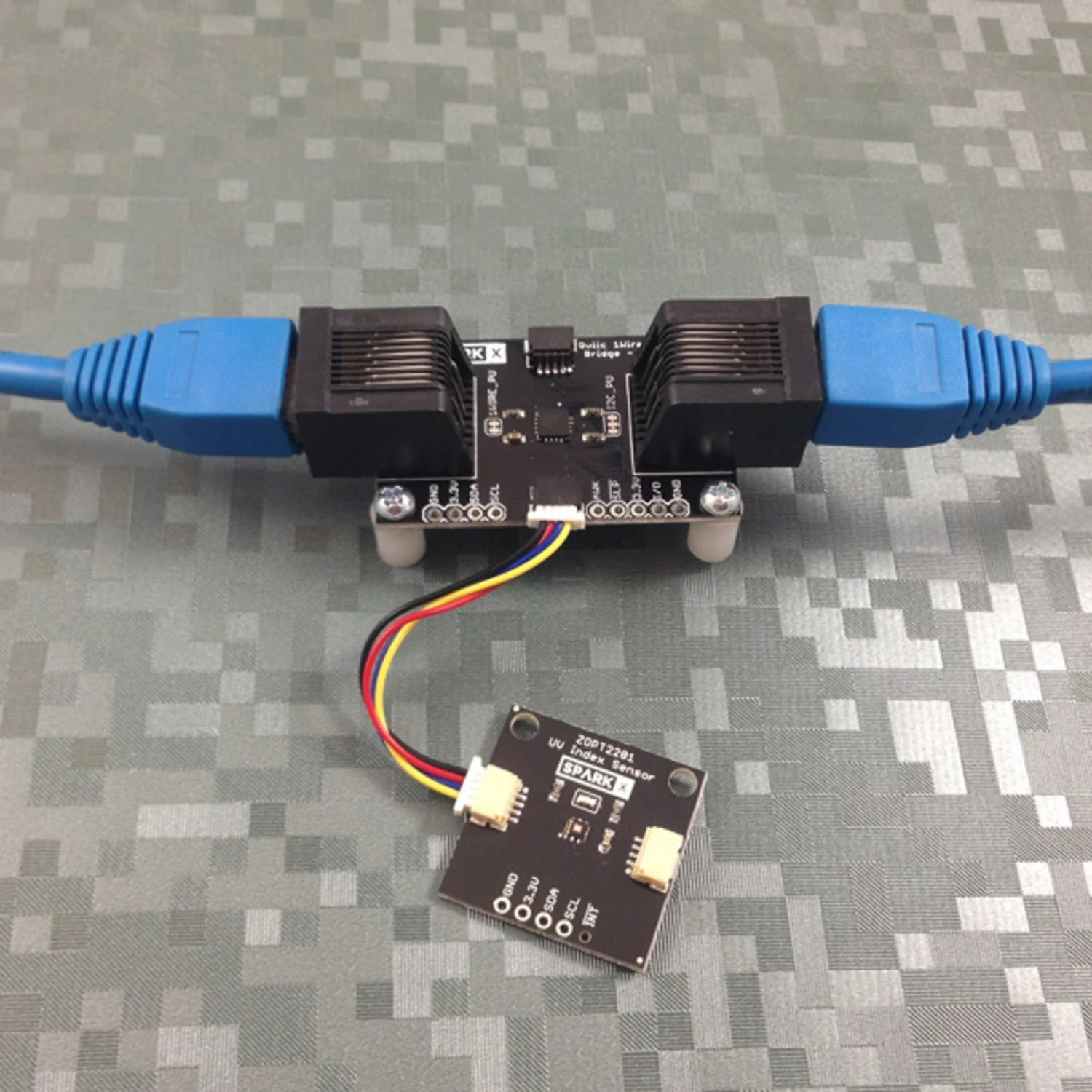

Multiple bridges can be daisy-chained for multi-node networks, with footprints for both RJ45 and RJ11 connectors provided for convenient wiring. Each DS28E17 has a unique 64-bit ROM address, allowing I2C devices with limited addressing to be attached to separate bridges and addressed individually — no multiplexer needed.

Key Features

• Bridge Chip – DS28E17 (1-Wire IN / I2C OUT)
• Communication Range – Up to ~100 m over 1-Wire bus
• Unique Addressing – 64-bit ROM registration number per bridge

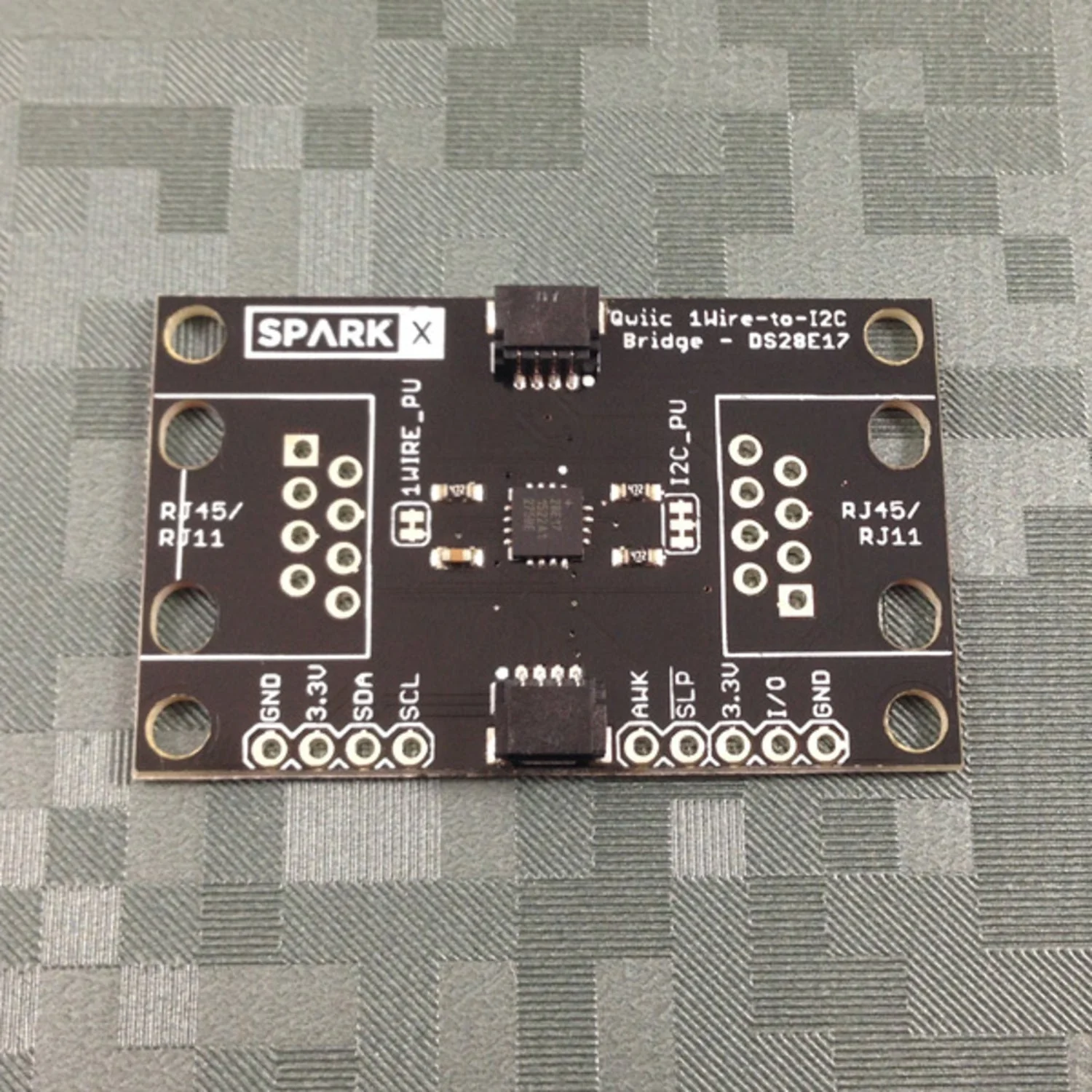

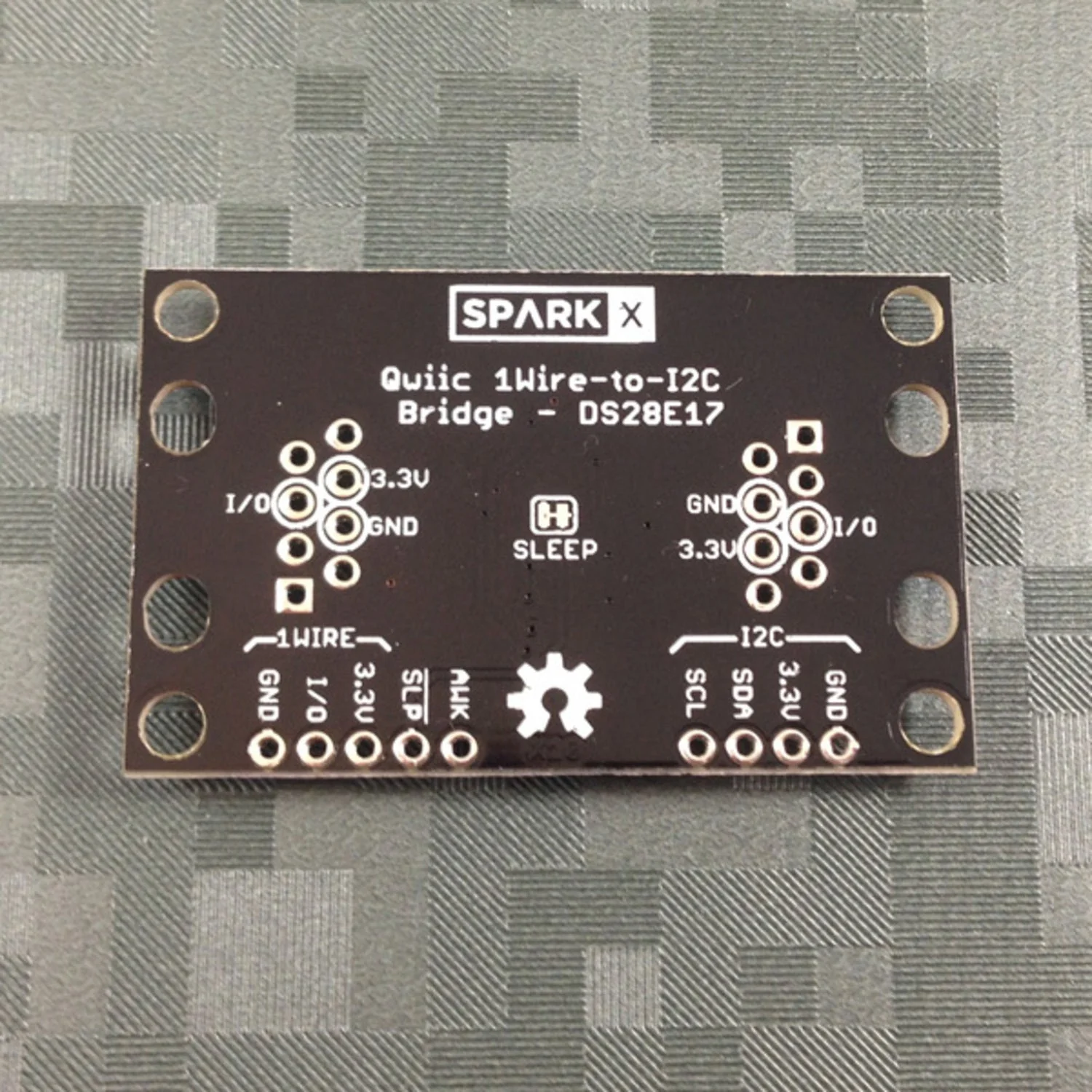

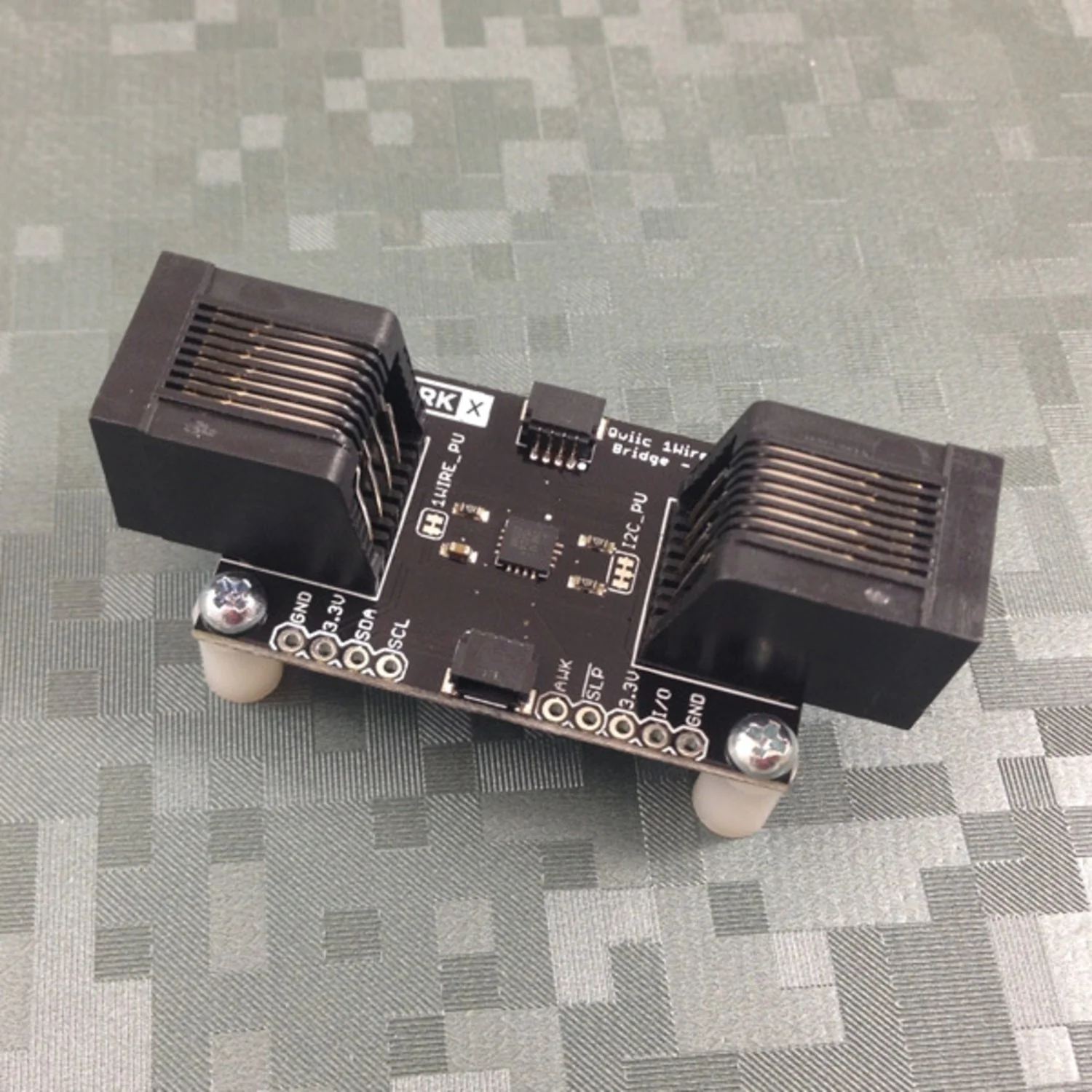

• Connectors – Qwiic (I2C side), footprints for RJ45 and RJ11 (1-Wire side)
• Daisy-chainable – Multiple bridges on one 1-Wire bus
• Qwiic Compatible – Solderless connection to Qwiic-enabled boards and sensors

Ideal For

• Long-distance I2C communication (sensor networks, building automation)
• Multi-node I2C networks without address conflicts
• Extending Qwiic sensor reach beyond typical I2C cable lengths

Package Contents

• 1× 1-Wire to Qwiic Bridge (DS28E17)
