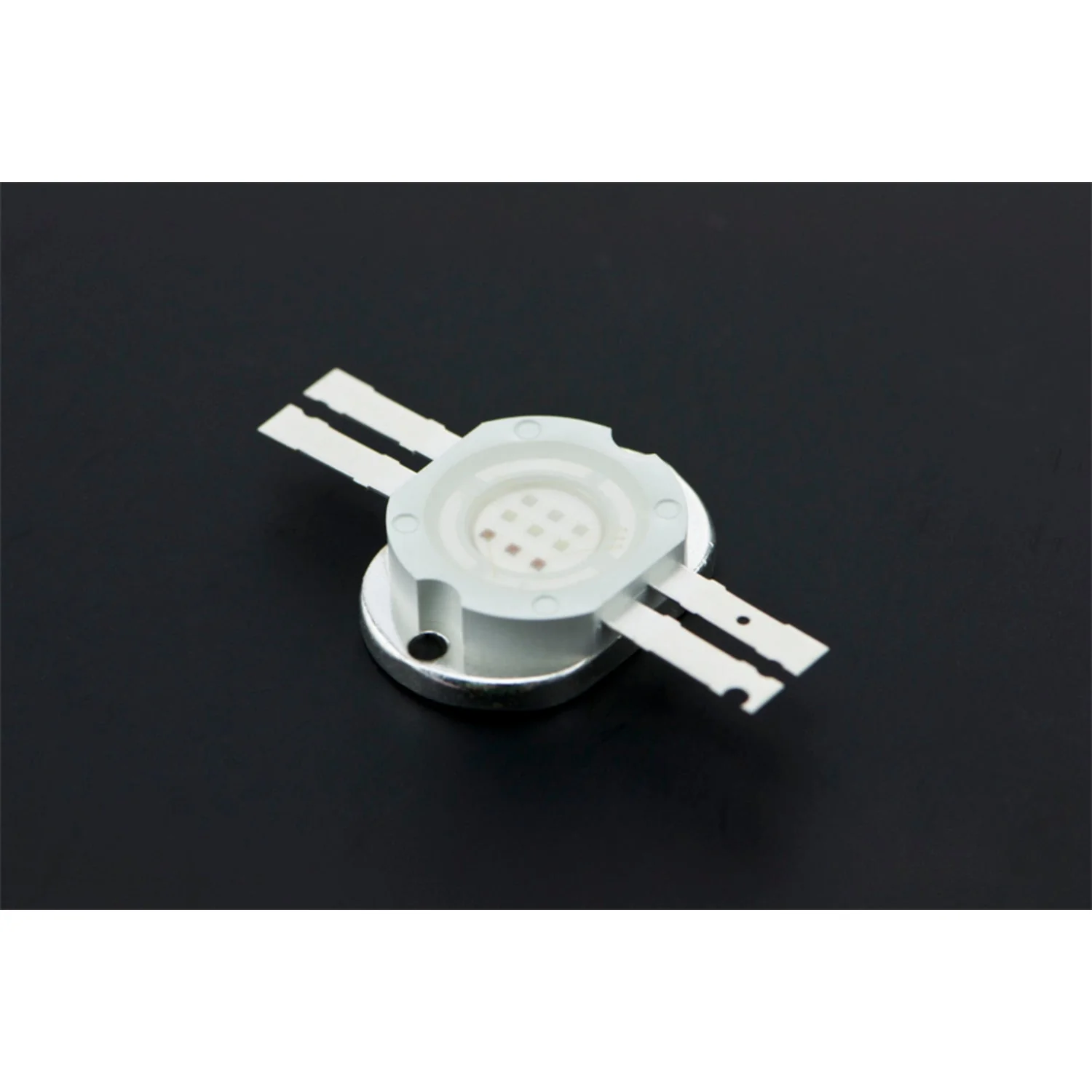

A 10W high-power RGB LED module consisting of nine separate LED dies (red, green, and blue) on a single aluminium substrate. With a combined luminous output of up to 500 lumens, it delivers enough brightness for searchlights, stage lighting effects, and colour-mixing displays.

Each colour channel has independent connections, allowing individual control of red, green, and blue intensity for full-colour mixing. The wide 105° beam angle provides broad, even illumination.

Key Features

• 10W Total Power – High-brightness LED with up to 500 lumens
• RGB Colour Mixing – Independent red, green, and blue channels
• 9 LED Dies – Multiple emitters on a single substrate
• 105° Beam Angle – Wide, even light distribution
• Aluminium Substrate – Aids heat dissipation when mounted to a heat sink

Specifications

• Rated Power – 10W
• Luminous Output – Red: 110 lm, Green: 165 lm, Blue: 45 lm
• Working Voltage (with heat sink) – Red: 6–7V, Green: 9–11V, Blue: 9–11V
• Working Voltage (without heat sink) – Red: 5–5.5V, Green: 7.5–8.5V, Blue: 7.5–8.5V
• Rated Current – Red: 400mA, Green: 350mA, Blue: 350mA
• Beam Angle – 105°
• Colour Temperature – 3000K–4000K
• Operating Temperature – −20°C to 60°C
• Dimensions – 38mm × 23mm
• Weight – 10g

Ideal For

• Robot searchlights and headlamps
• Stage and theatrical lighting effects
• RGB colour-mixing displays
• High-brightness indicator or signal lighting

Package Contents

• 1× 10W Super Bright LED – RGB

Resources

• Datasheet (PDF)
