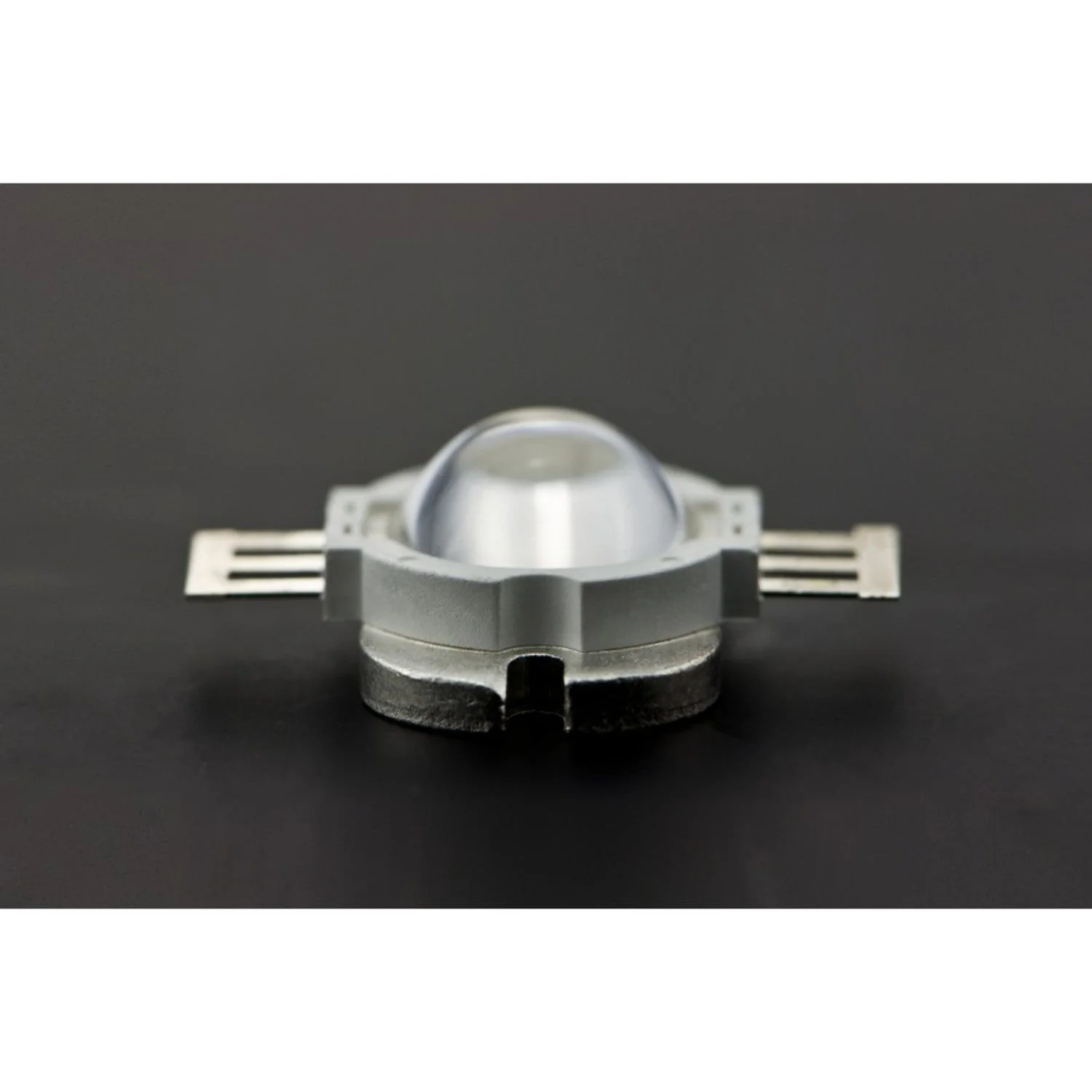

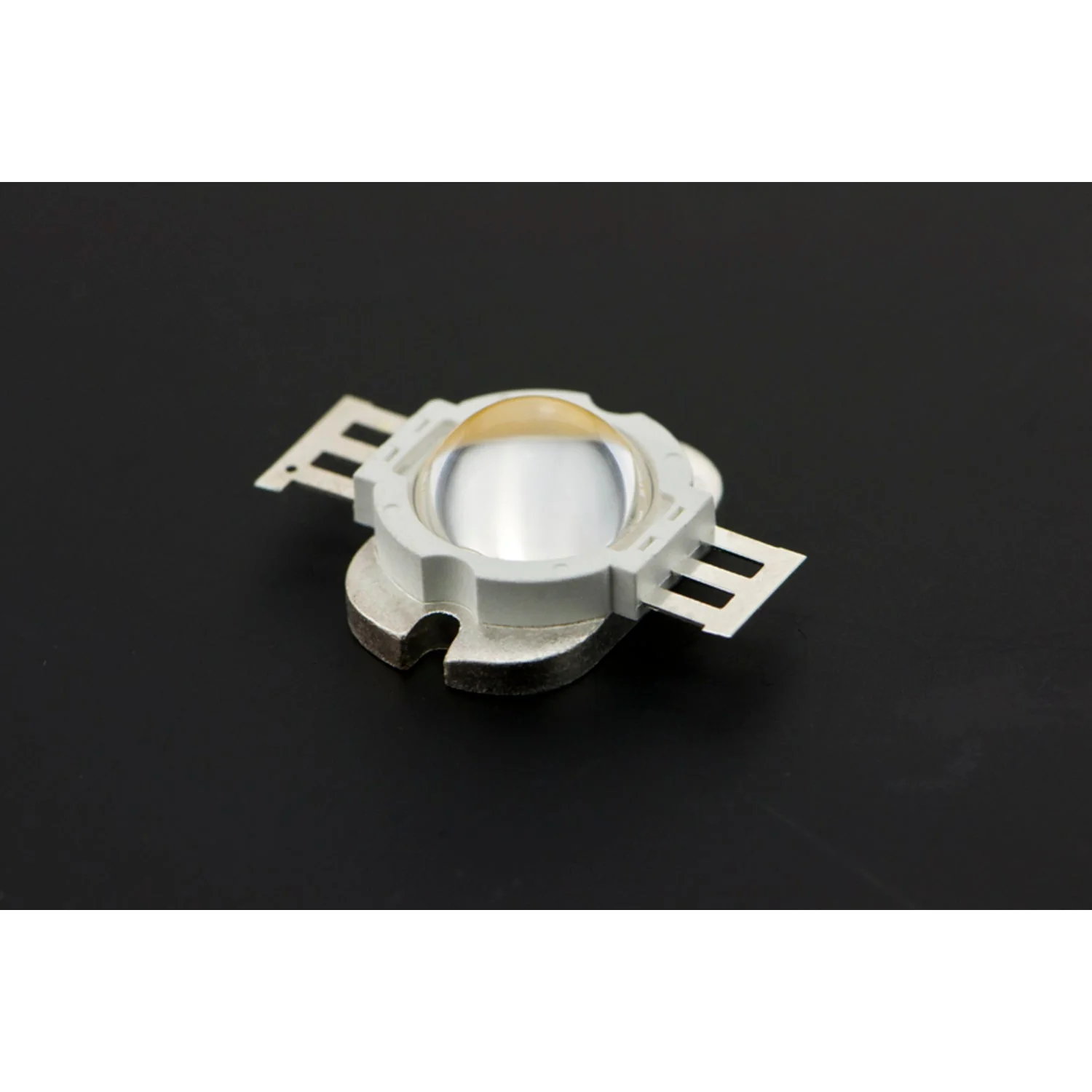

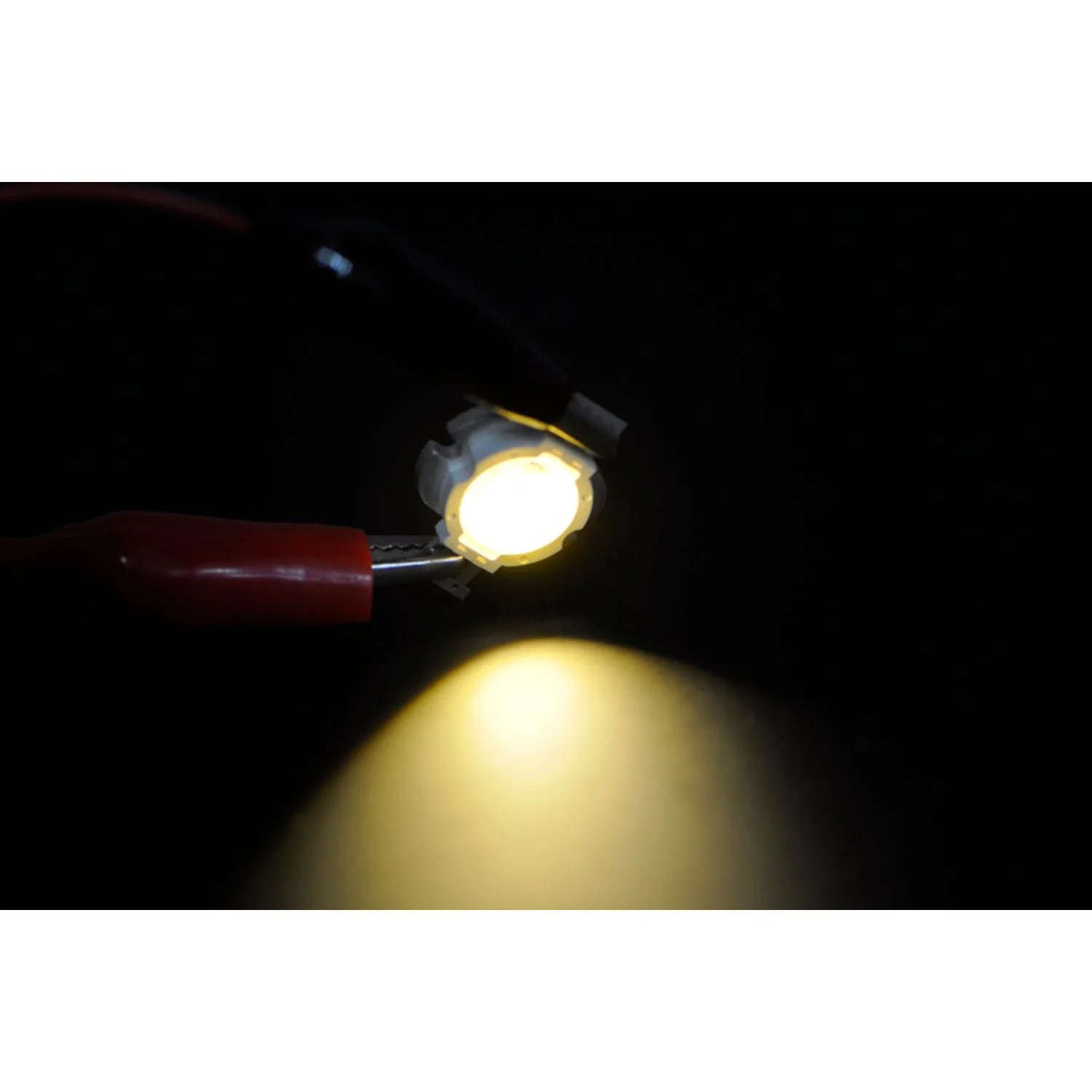

A 10W high-power warm white LED module with an integrated 60° focusing lens. The lens narrows the beam compared to the standard 120° version, concentrating the 500-lumen output into a tighter spot — ideal for searchlights, spotlights, and directional lighting.

The module consists of nine separate LED dies on a single aluminium substrate with a warm 3000–4000K colour temperature. The aluminium substrate helps dissipate heat when mounted to an appropriate heat sink.

Key Features

• 60° Focusing Lens – Concentrates light into a tighter beam for spotlighting
• 10W Total Power – High-brightness LED with 500 lumens output
• Warm White (3000–4000K) – Comfortable, warm colour temperature
• 9 LED Dies – Multiple emitters on a single substrate

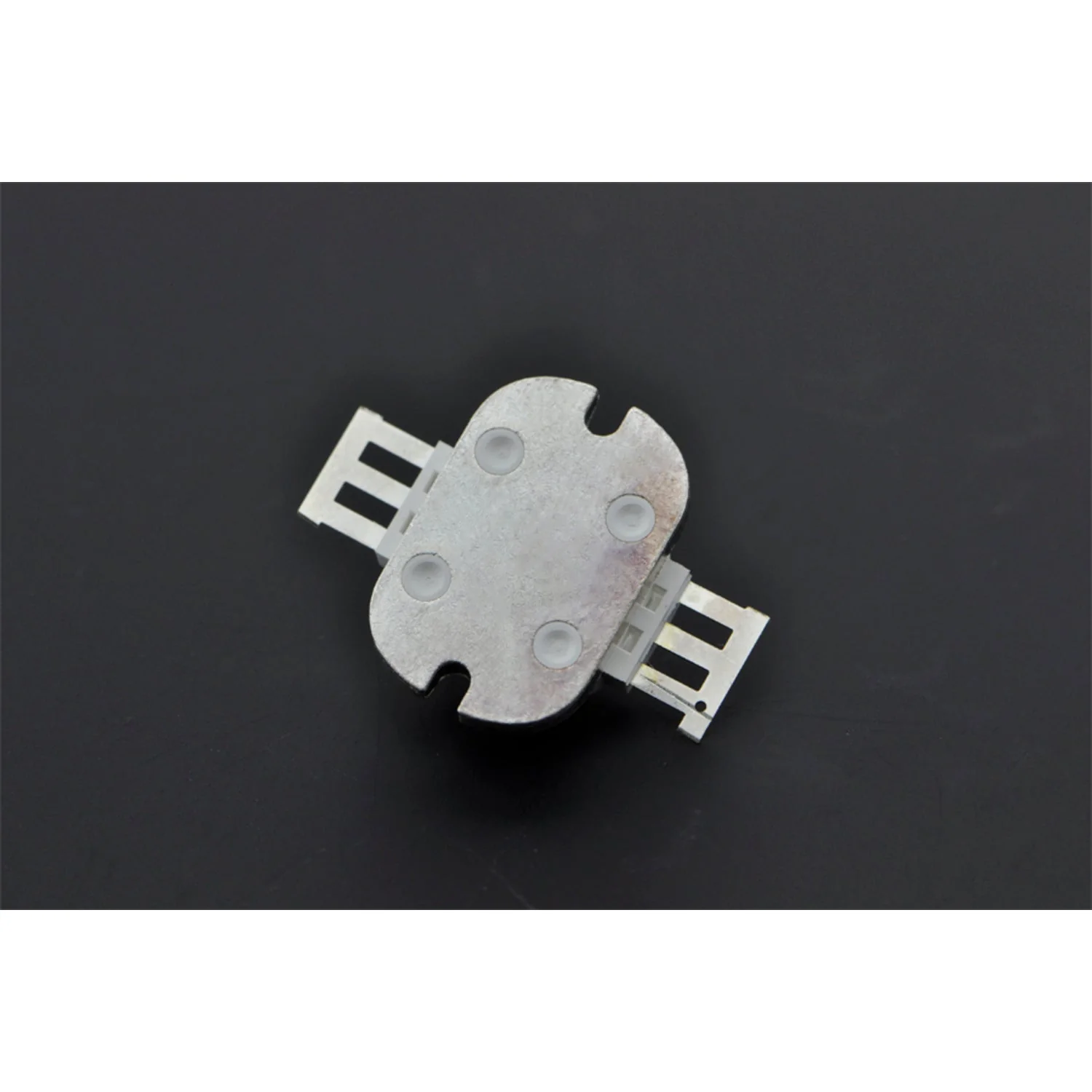

• Aluminium Substrate – Aids heat dissipation when mounted to a heat sink

Specifications

• Rated Power – 10W
• Luminous Output – 500 lm
• Colour Temperature – 3000–4000K (warm white)
• Lens Beam Angle – 60°
• Working Voltage (with heat sink) – 9–11V
• Working Voltage (without heat sink) – 7.5–8.5V
• Rated Current – 1000mA
• Operating Temperature – −20°C to 60°C
• Dimensions – 29mm × 23mm
• Weight – 10g

Ideal For

• Robot searchlights and spotlights
• Directional task lighting
• Focused work lamps
• DIY torch and lantern projects

Package Contents

• 1× 10W Super Bright LED – Warm White with 60° lens

Resources

• Datasheet (PDF)
• Internal circuit diagram
