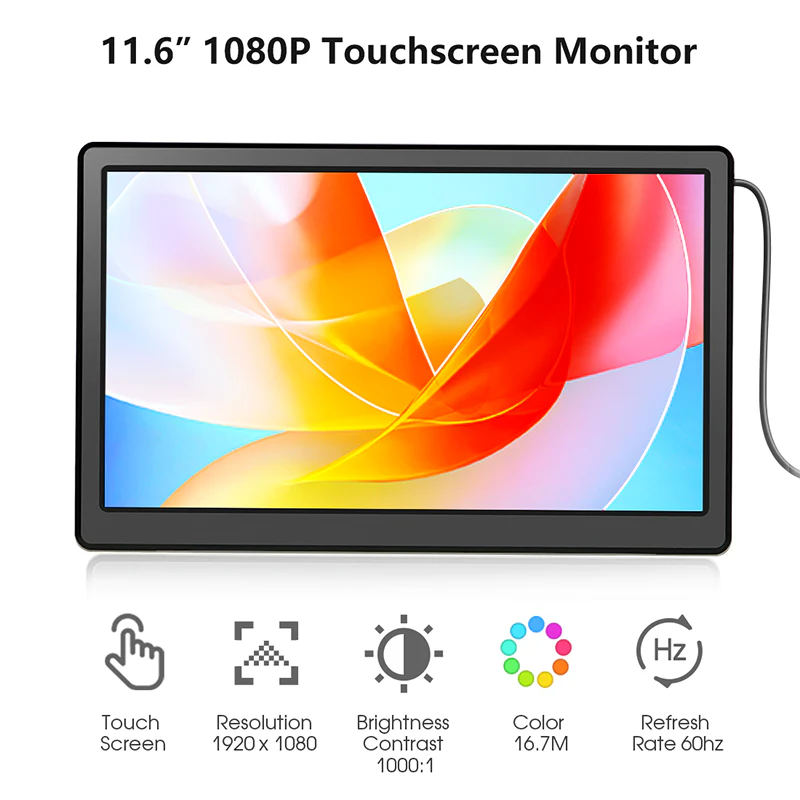

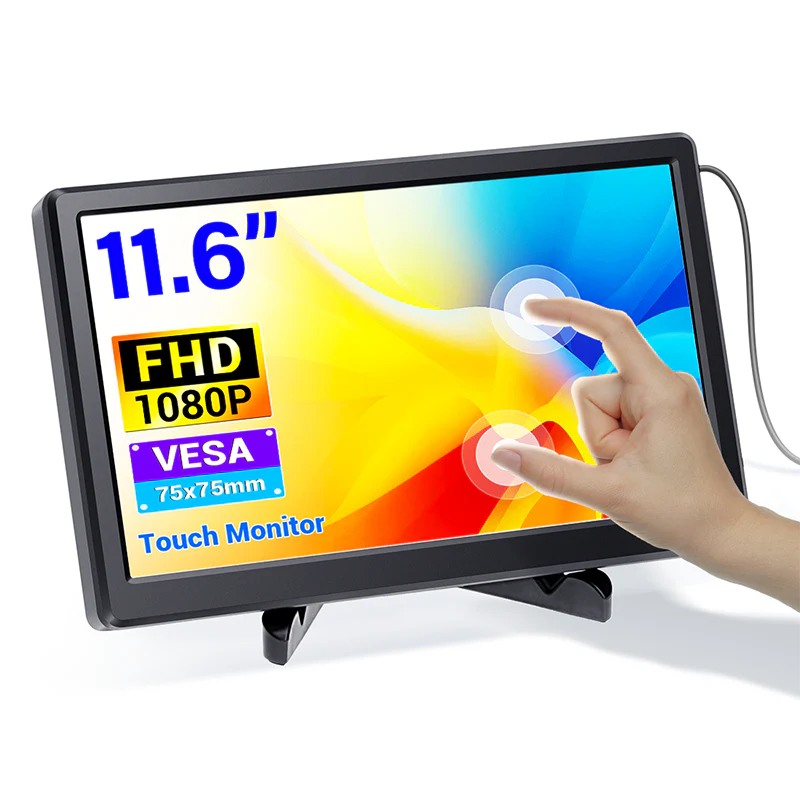

An 11.6-inch 1920×1080 IPS touchscreen monitor with HDMI and VGA inputs. The 10-point capacitive touch panel is plug-and-play over USB — no drivers required. Built-in dual speakers, a 3.5mm headphone jack, and a 3.5mm audio input round out the connectivity.

Compatible with Raspberry Pi (3, 4, 5), Jetson Nano, BeagleBone, Windows, macOS, and Linux PCs. The 75×75mm VESA mounting holes allow wall or arm mounting, and the included stand supports desktop use.

Key Features

• 1920×1080 Full HD IPS – Clear images with rich colours
• 10-Point Capacitive Touch – Plug-and-play via USB, no drivers needed
• HDMI + VGA Inputs – Two connection options for flexible setup
• Built-In Dual Speakers – Audio output without external speakers
• 75×75mm VESA Mount – Wall or arm mounting for flexible placement

Specifications

• Screen Size – 11.6 inches
• Resolution – 1920×1080
• Panel Type – IPS
• Touch – Capacitive, 10-point
• Display Colours – 16.7M
• Viewing Angle – 85° (per side)
• Brightness – 220 cd/m²
• Contrast Ratio – 1000:1
• Response Time – 35ms
• Backlight Life – 3000 hours
• Interfaces – HDMI, VGA, USB (touch), 3.5mm headphone out, 3.5mm audio in
• OS Support – Windows, macOS, Linux
• VESA Mount – 75×75mm
• Display Area – 256.3mm × 144.2mm

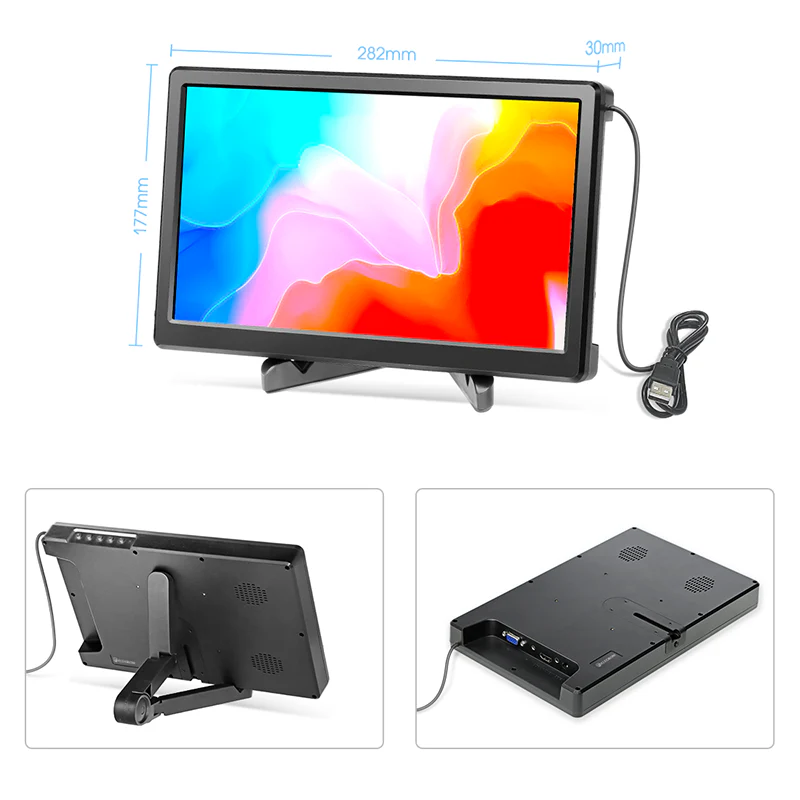

• Overall Dimensions – 282mm × 177mm × 30mm
• Weight – 790g
• Operating Temperature – −20°C to 70°C
• Storage Temperature – −30°C to 80°C

Ideal For

• Raspberry Pi, Jetson Nano, and BeagleBone projects
• Portable secondary monitor for laptops
• Kiosk and HMI touch interfaces
• Industrial and medical display applications

Package Contents

• 1× 11.6-inch touchscreen monitor
• 1× HDMI cable
• 1× Power supply
• 1× Stand
• 1× User manual

Resources

• User manual (PDF)
• CE certificate (PDF)
