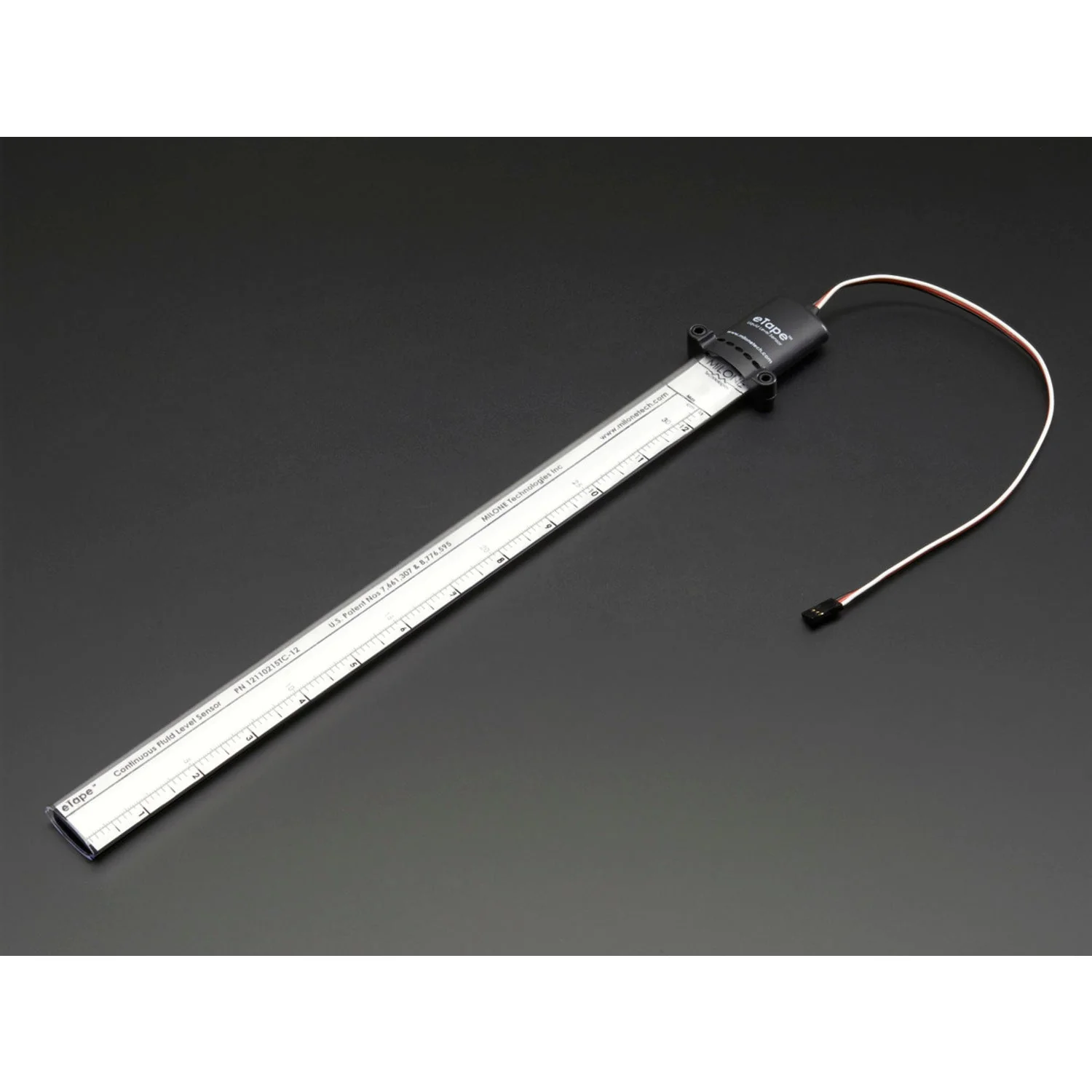

The Standard eTape Liquid Level Sensor with plastic casing is a solid-state resistive sensor that measures fluid level without mechanical floats. The hard plastic jacket makes this version more robust and less susceptible to physical damage than the bare-tape models.

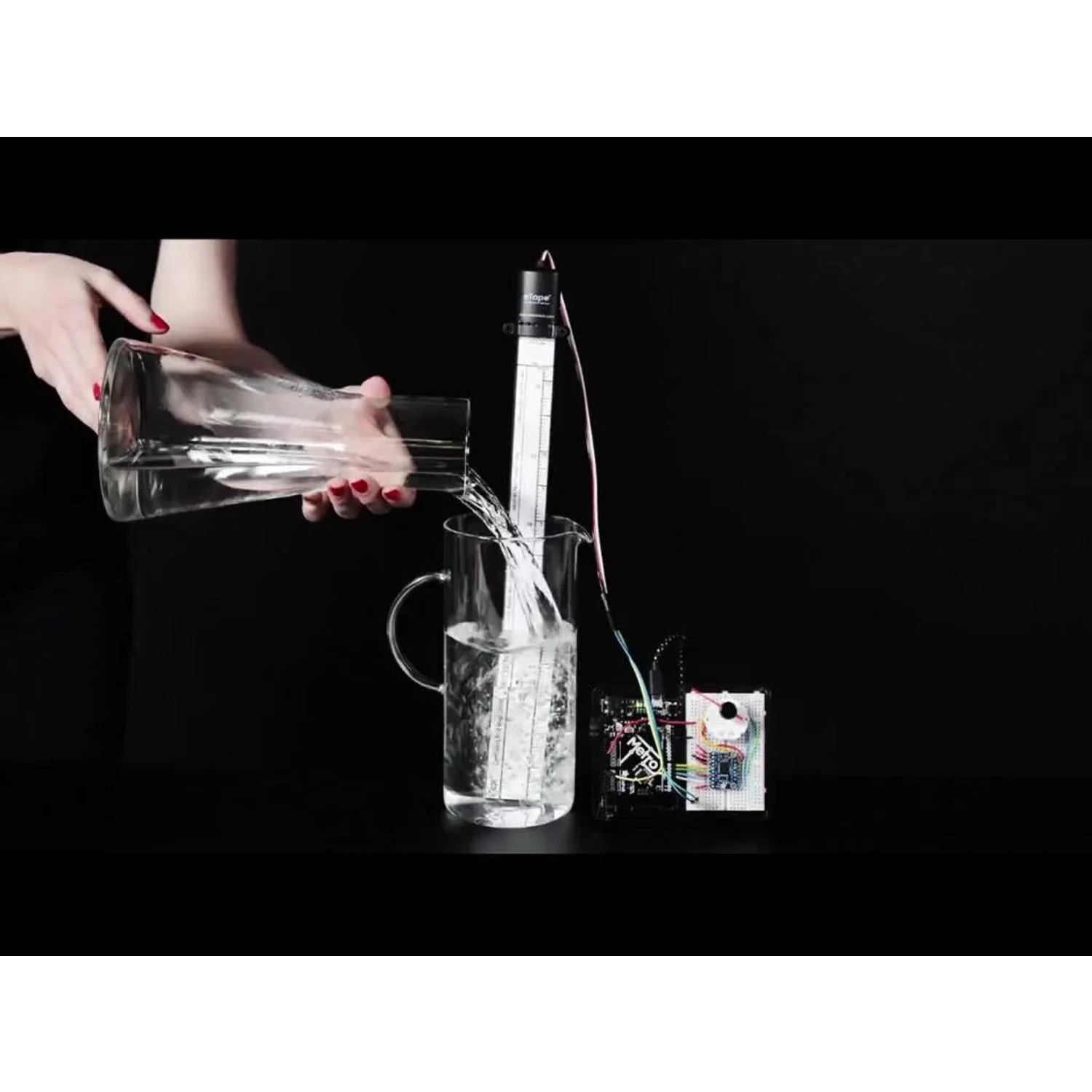

As the liquid level rises, the hydrostatic pressure compresses the sensor envelope, decreasing its resistance. The output is inversely proportional to the liquid height — lower liquid means higher resistance, higher liquid means lower resistance. This version includes a 3-pin JST connector with power (red), ground (black), and analogue output (white) — simply connect to 3V or 5V and read the analogue voltage with any ADC or Arduino analogue pin.

Key Features

• Hard Plastic Casing – More durable than bare-tape sensors
• Solid-State Design – No mechanical floats or moving parts
• Built-In Voltage Divider – Analogue output via 3-pin JST connector
• 3V or 5V Compatible – Works with a wide range of microcontrollers
• 12" Sensing Length – Suitable for tanks and containers up to 30cm deep

Wiring

• Red – 3V or 5V power
• Black – Ground
• White – Analogue output (connect to ADC pin)

Ideal For

• Hydroponics and aquaponics systems
• Aquarium and fountain level monitoring
• Rain gauge and weather station projects
• Pool and water tank controllers

Package Contents

• 1× 12" Standard eTape Liquid Level Sensor (plastic casing, 3-pin JST connector)
