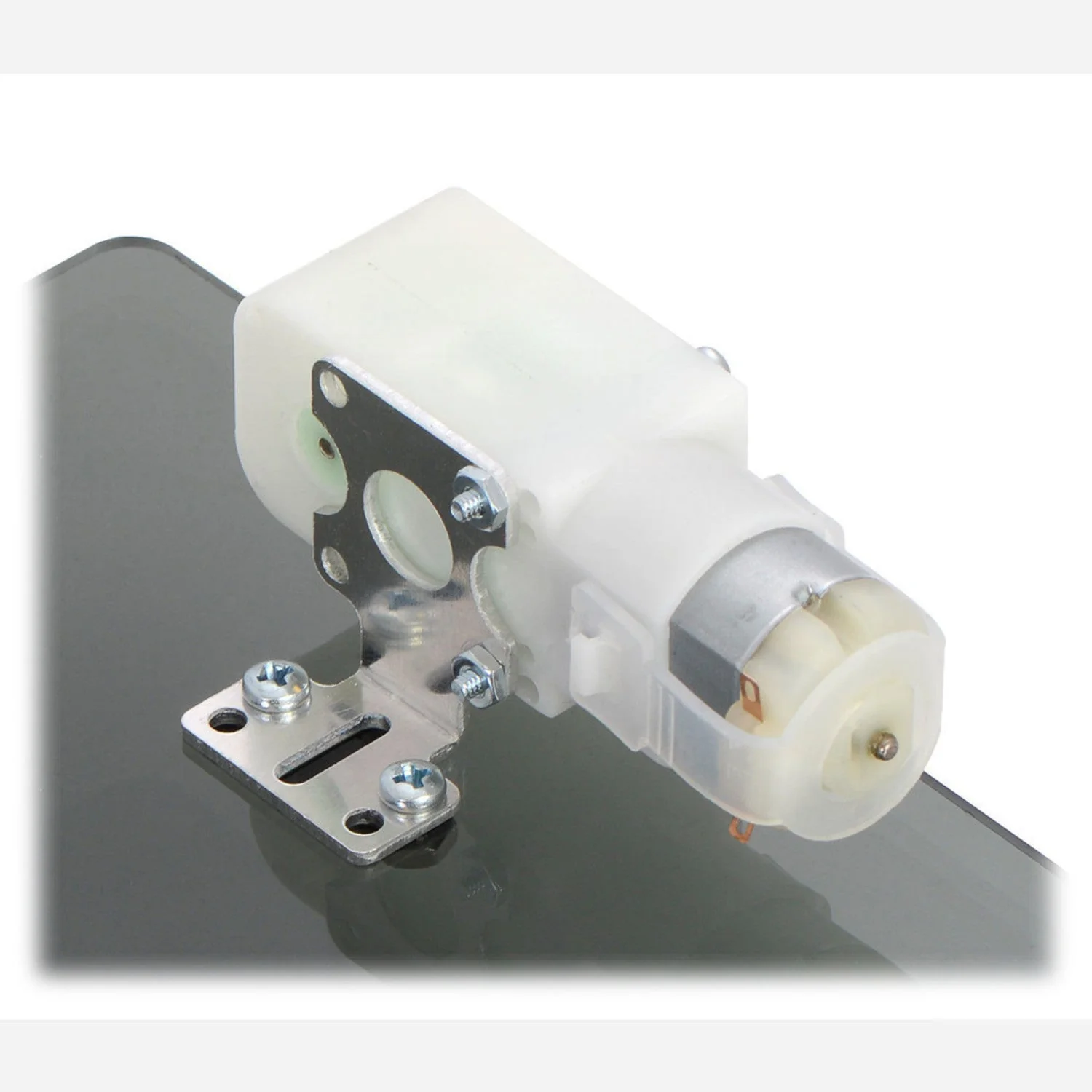

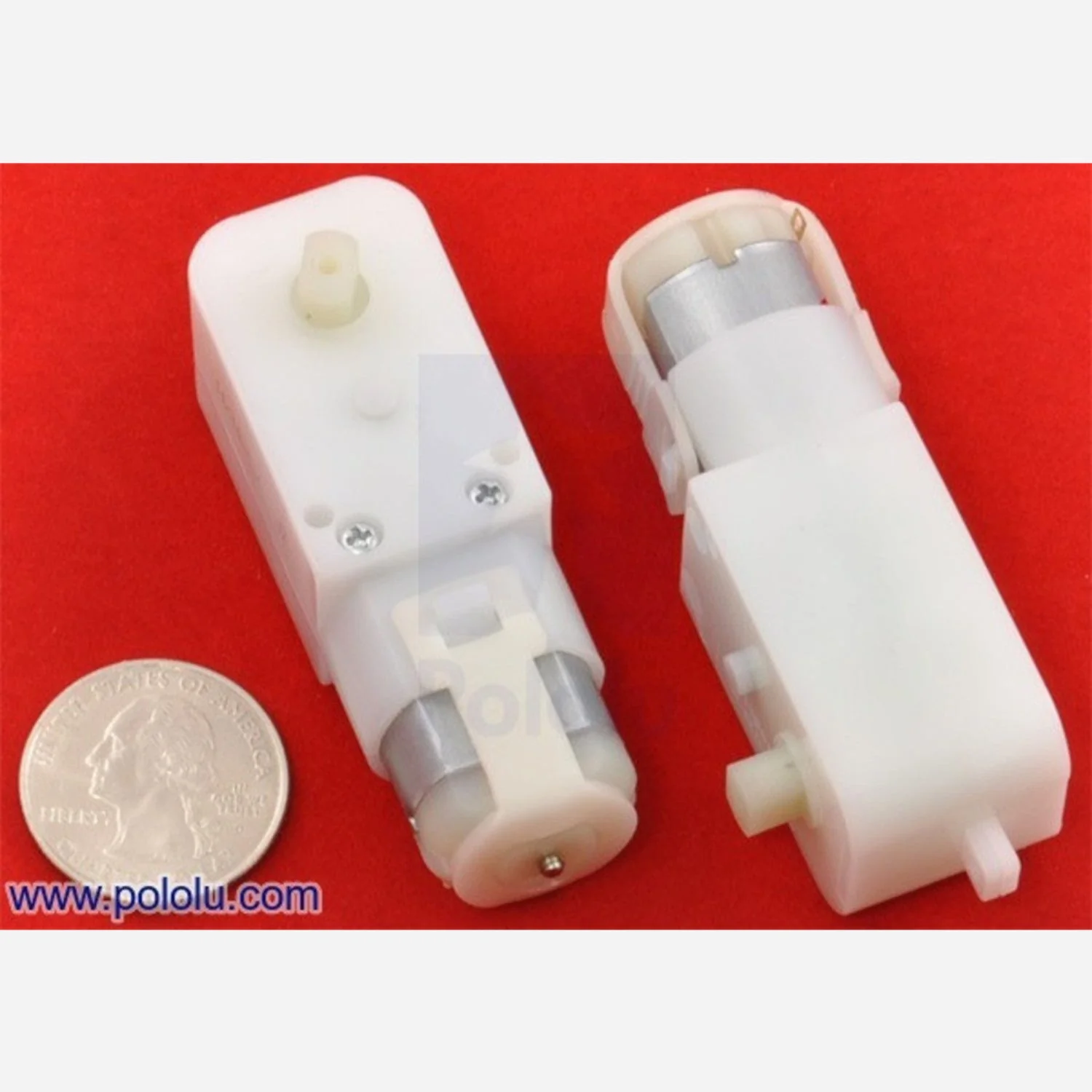

A 120:1 plastic gearmotor with a 90° output shaft — the output is perpendicular to the motor axis, making it a compact choice for small robot designs where side-mounted wheels or mechanisms are needed. The enclosed gearbox and low-current brushed DC motor run on 3–12V, with a built-in safety clutch that slips before gear teeth can shear.

At 6V, the motor delivers approximately 75 oz·in of torque at 85 RPM, with a low 70mA free-running current that makes it a good match for small motor drivers and robot controllers.

Key Features

• 120:1 Gear Ratio – Good balance of speed and torque
• 90° Output Shaft – Perpendicular to the motor axis for compact mounting
• 3–12V Operating Range – Flexible voltage for different battery configurations
• Built-In Safety Clutch – Protects gears from excessive loads
• Enclosed Gearbox – Pre-assembled, fully enclosed gears

Specifications (at 6V)

• No-Load Speed – 85 RPM
• No-Load Current – 70mA
• Stall Torque – ~75 oz·in
• Stall Current – 800mA
• Operating Voltage – 3–12V
• Gear Ratio – 120:1
• Output Shaft – 7mm diameter × 6mm long, two flattened sides, 90° to motor axis

Ideal For

• Small robot drives with side-mounted wheels
• Compact wheeled platforms
• Educational robotics projects
• Low-cost alternative to modified hobby servos

Package Contents

• 1× 120:1 plastic gearmotor (90° output)
