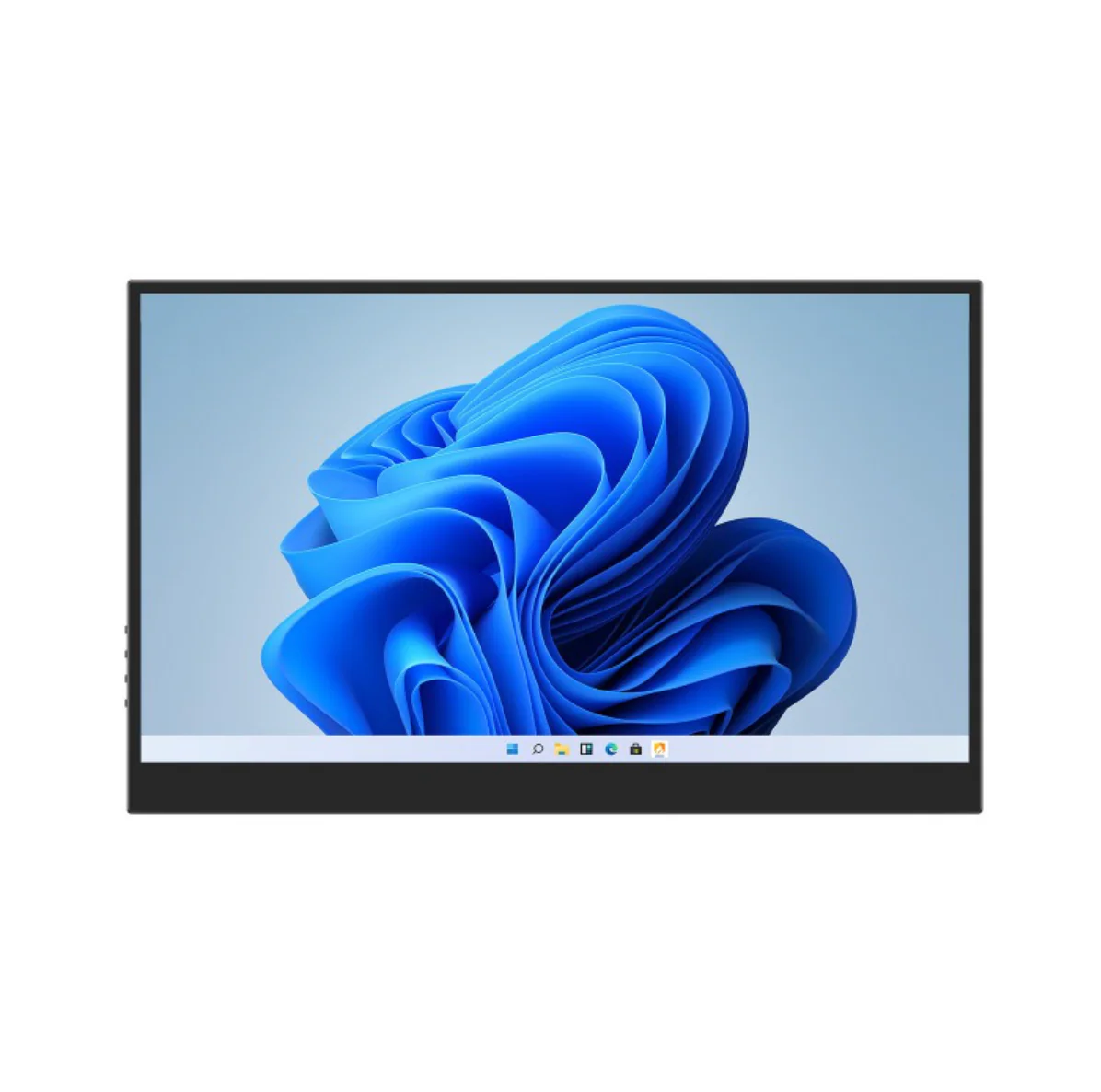

The Waveshare 15.6" FHD Monitor (C) is a portable touchscreen display with 1920×1080 IPS panel, 10-point capacitive touch, and a built-in 10,000mAh battery providing 3–4 hours of untethered use. The screen is optically bonded to toughened glass with 6H hardness, reducing glare and improving touch responsiveness while protecting against scratches.

Connect via a single USB-C cable for video, touch, and power, or use the Mini HDMI input for display-only connections. A built-in Hi-Fi speaker and 3.5 mm audio jack handle sound output. The monitor works with PCs, laptops, smartphones (with USB-C DisplayPort Alt Mode), single-board computers, and gaming consoles — no drivers required on most platforms.

Key Features

• 15.6" IPS Display – 1920×1080 Full HD, 178° viewing angle, 62% NTSC colour gamut
• 10-Point Capacitive Touch – Optically bonded toughened glass with 6H hardness
• 10,000mAh Battery – 3–4 hours of portable use on a single charge
• USB-C Connectivity – Single cable for video, touch, and power delivery
• Mini HDMI Input – Alternative video connection for devices without USB-C output
• Built-in Audio – Hi-Fi speaker with 3.5 mm jack for external audio output
• Polycarbonate Enclosure – Lightweight and durable construction

Specifications

• Screen Size – 15.6"
• Resolution – 1920 × 1080 (Full HD)
• Panel Type – IPS
• Viewing Angle – 178°
• Colour Gamut – 62% NTSC
• Touch – 10-point capacitive
• Touch Panel – Optically bonded toughened glass (6H hardness)
• Battery – 10,000mAh (3–4 hours)

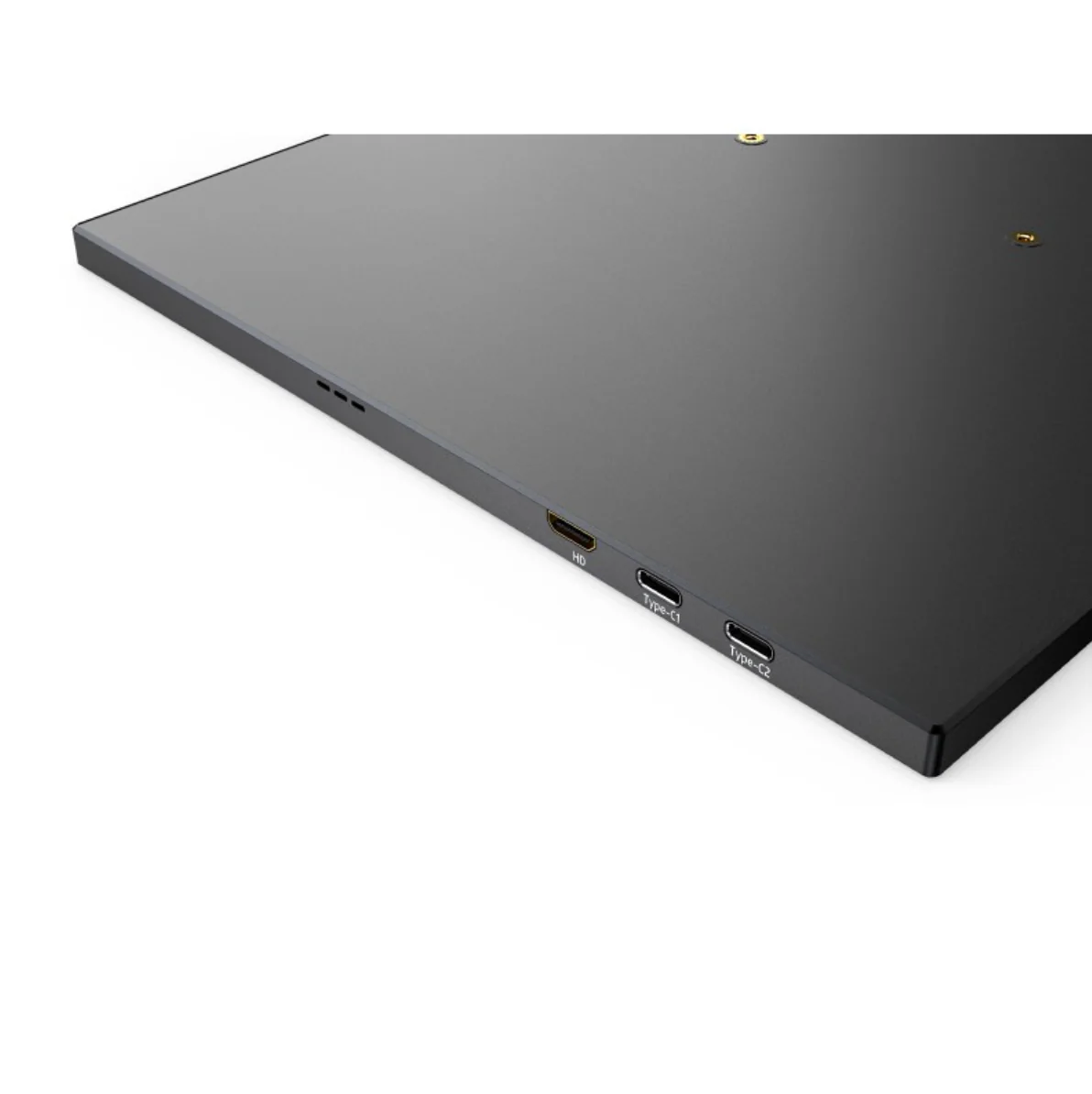

• Display Interfaces – USB-C / Mini HDMI

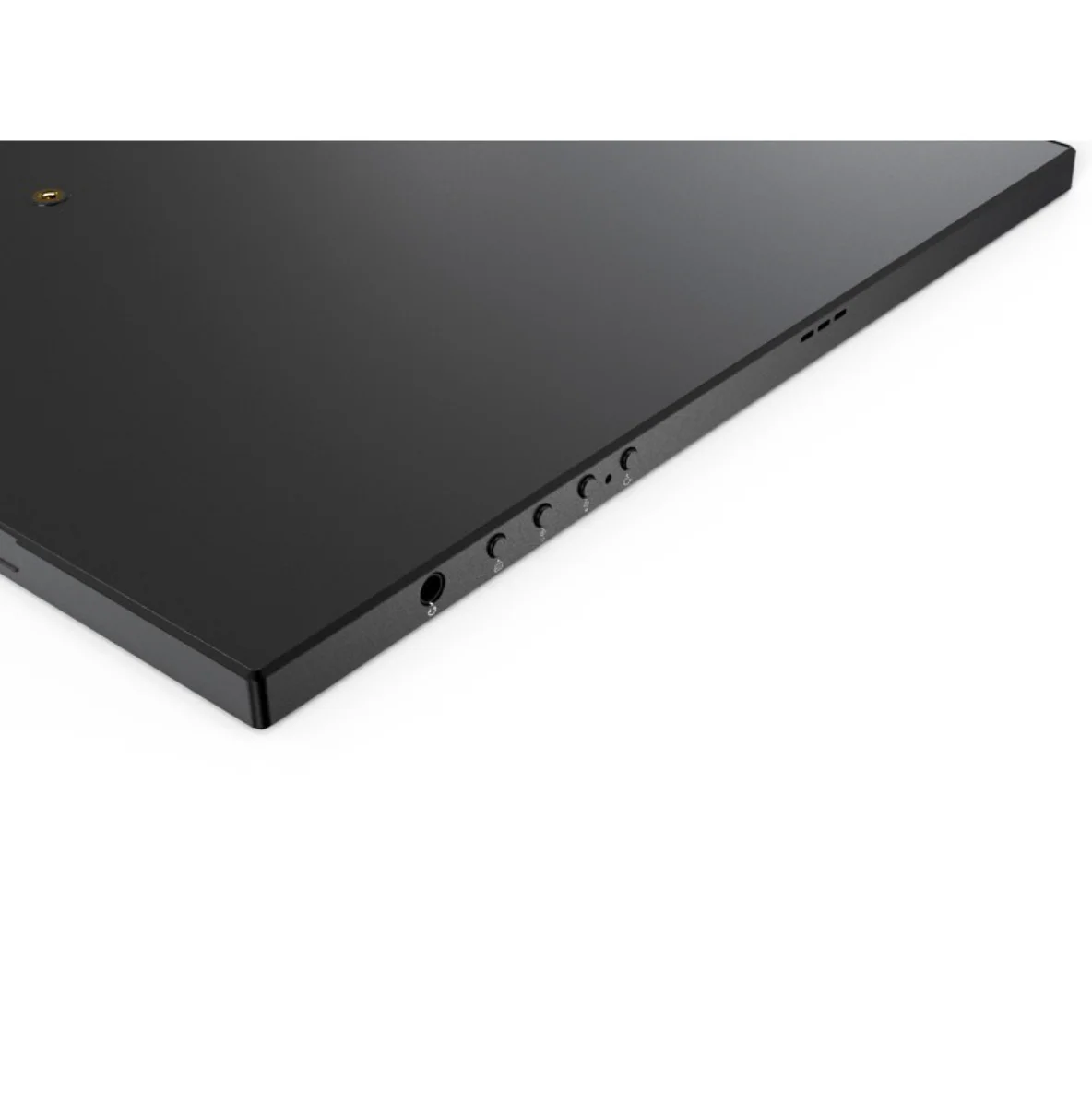

• Audio – Built-in speaker + 3.5 mm jack
• Enclosure – Polycarbonate

Compatibility

• Operating Systems – Windows 11/10/8.1/8/7, Raspberry Pi OS, Ubuntu, Kali, RetroPie
• Single-Board Computers – Raspberry Pi, Jetson series
• Smartphones – Samsung, Huawei, and other Android phones with USB-C DisplayPort Alt Mode
• Gaming Consoles – Xbox 360, PS5, Nintendo Switch
• Laptops & PCs – Apple, Huawei, Lenovo, HP, Dell, and others

Ideal For

• Portable second monitor for laptops
• Raspberry Pi and SBC projects requiring a touch display
• Portable gaming display for consoles
• Presentations and field work

Package Contents

• 1× 15.6" FHD Monitor (C)
• 1× Mini HDMI to HDMI cable (~1.5 m)
• 1× USB-A to USB-C cable (~1 m)
• 1× Dual-plug USB-C cable (~1 m)

Optional Accessories (may be included)

• 1× 5V 3A power adapter
• 1× HDMI to Micro HDMI adapter

Resources

• Product Wiki
