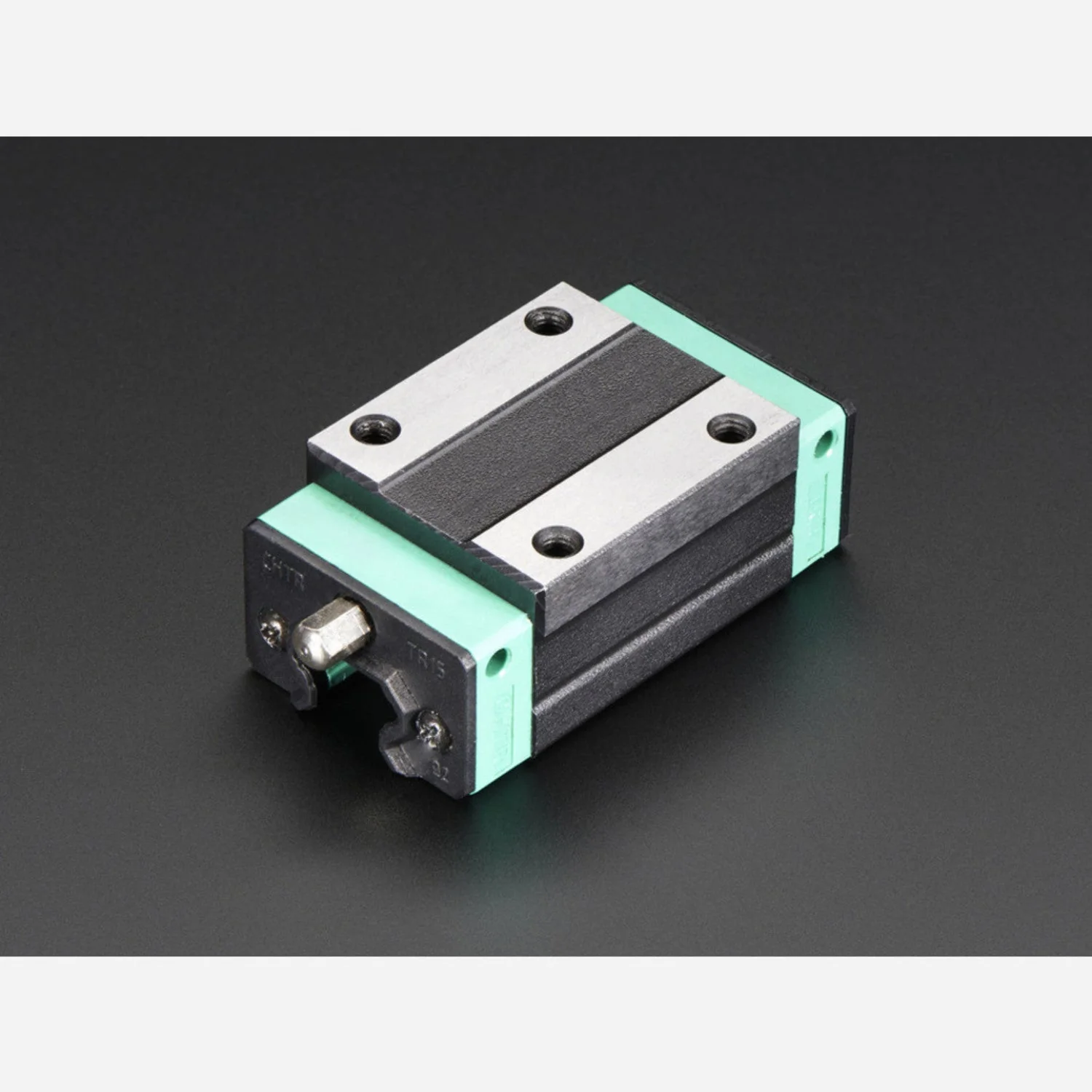

A sliding ball-bearing platform designed for 15 mm T-shaped supported slide rails, commonly used in CNC machines, robotics, and linear motion projects. The pillow block features a plastic interior with circulating ball bearings for smooth, low-friction travel along the rail.

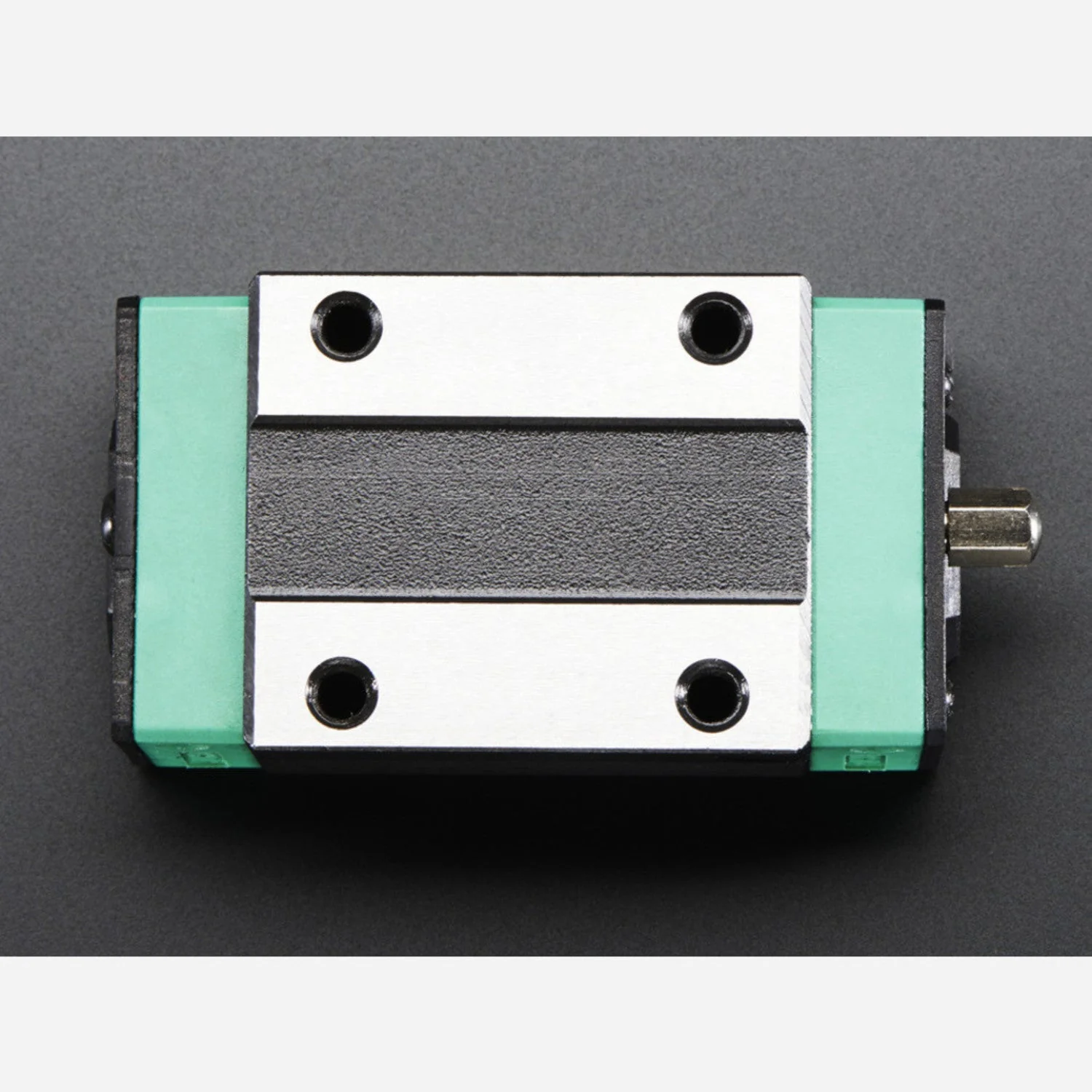

The 60 × 35 mm platform has four M4 tapped mounting holes for attaching custom platforms, tool holders, or other components. The T-shaped rail profile prevents the bearing from detaching once installed, and provides sufficient support for loads up to approximately 2.3 kg (~5 lb) on a single rail. For heavier loads or wider platforms, use two parallel rails.

Key Features

• Ball Bearing Pillow Block – Smooth, low-friction linear motion on 15 mm supported rails
• M4 Mounting Holes – Four tapped holes on a 60 × 35 mm platform

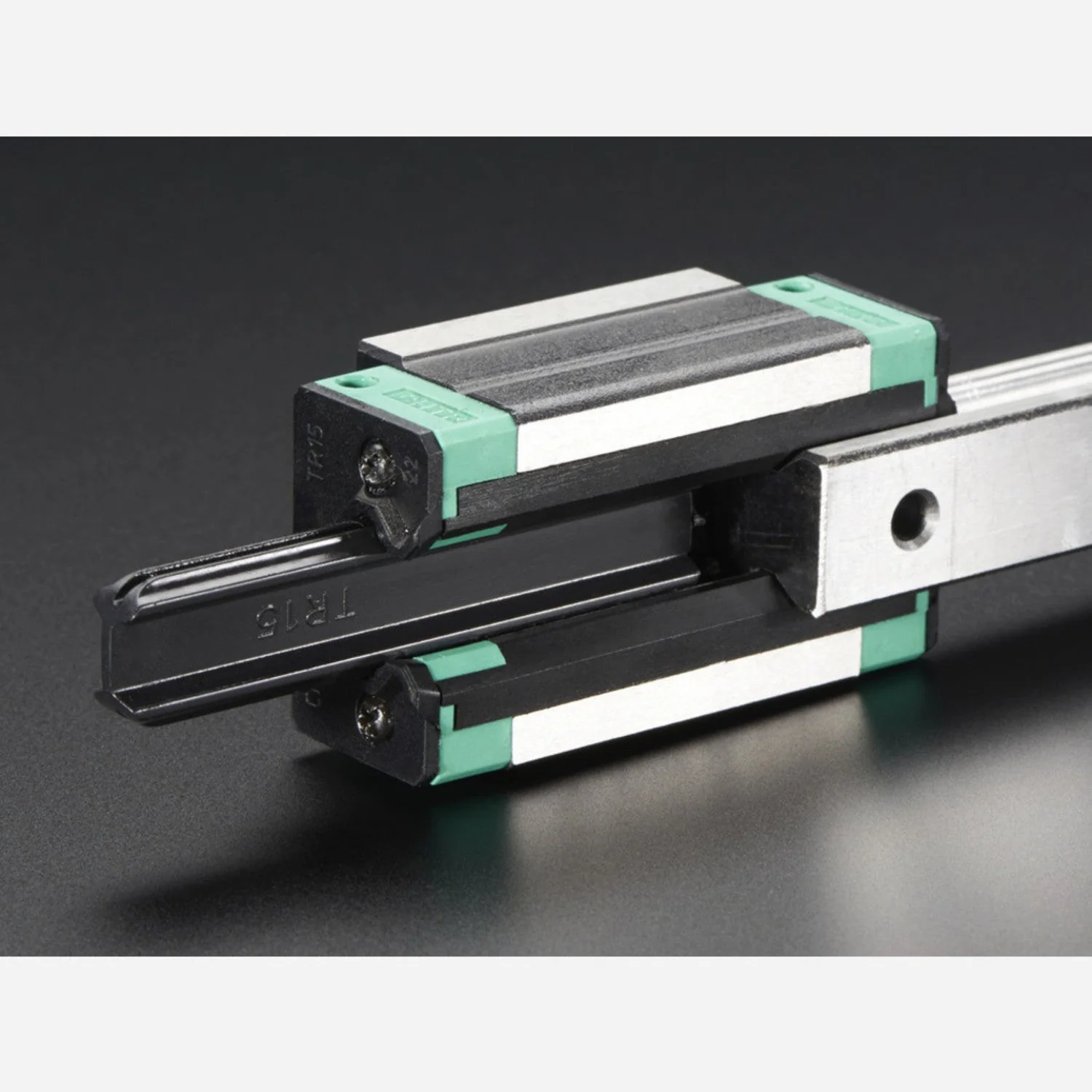

• T-Rail Captive Design – Cannot detach from the rail once installed
• Circulating Ball Bearings – Plastic insert retains bearings for easy assembly

Specifications

• Rail Compatibility – 15 mm diameter T-shaped supported slide rail
• Platform Size – 60 × 35 mm
• Mounting – 4× M4 tapped holes

Ideal For

• DIY CNC machines and 3D printers
• Robotics linear motion systems
• Camera sliders and positioning systems

Package Contents

• 1× 15 mm linear bearing pillow block
