A 16.000 MHz quartz crystal in the HC49/US short-style package, supplied with two 20pF load capacitors. The crystal provides higher precision than ceramic resonators, with 30 PPM tolerance and 50 PPM stability — suitable for USB timing, long-term timekeeping, and RF/PLL/VCO applications.

The breadboard-friendly package has two pins with symmetric pinout. Connect one pin to XTAL-in and the other to XTAL-out on your microcontroller, with one 20pF capacitor from each crystal pin to ground. Check your microcontroller datasheet for any additional components (e.g. a 1 MΩ feedback resistor).

Specifications

• Frequency – 16.000 MHz
• Tolerance – ±30 PPM
• Stability – ±50 PPM
• Package – HC49/US (short style)
• Load Capacitance – 20pF (capacitors included)

Ideal For

• Arduino-compatible builds requiring precise 16 MHz clocking
• USB timing on ATmega32U4 and similar MCUs
• Applications requiring higher precision than ceramic resonators

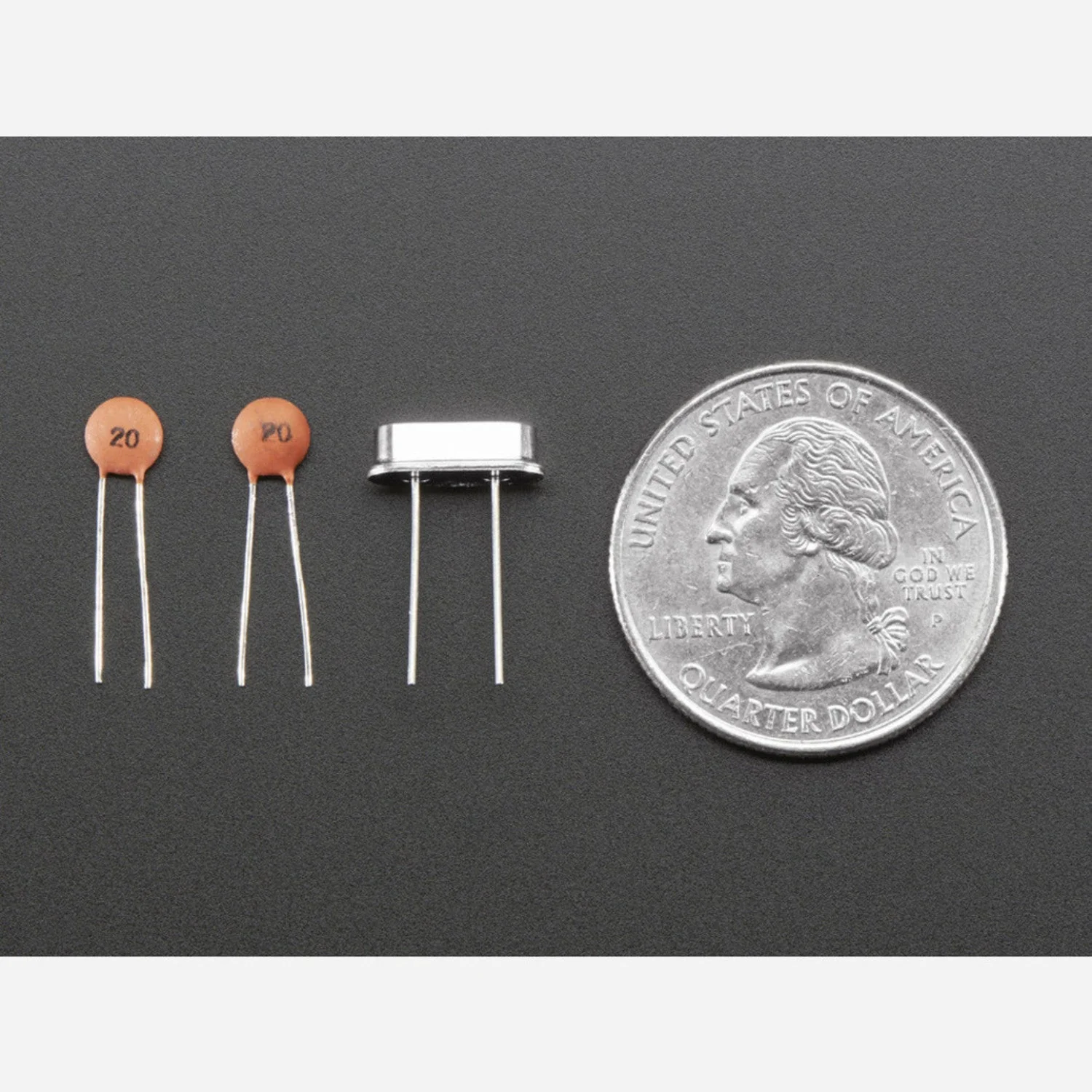

Package Contents

• 1× 16 MHz quartz crystal (HC49/US)
• 2× 20pF ceramic capacitors
