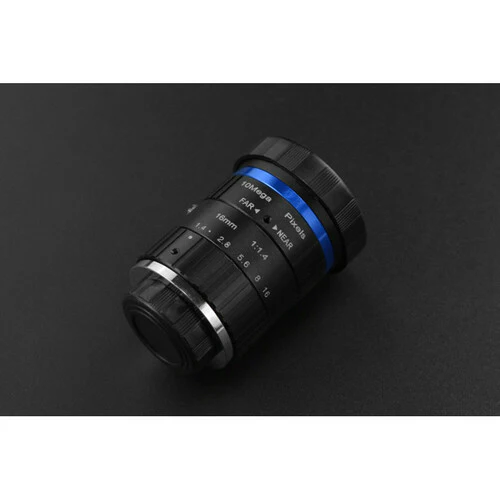

A 16mm telephoto lens designed for the Raspberry Pi High Quality Camera and Jetson Nano 12.3MP camera module. With a narrow field of view and manual focus, this lens is ideal for capturing distant subjects with clarity.

The C-mount lens screws directly into the HQ Camera module. A C/CS adapter ring is included for compatibility with CS-mount cameras. Features a manually adjustable iris from F1.4 to F16 and includes front and back protective covers.

Key Features

• 16mm Focal Length – Telephoto lens for targeting distant subjects
• 10 Megapixel Resolution – Sharp imagery for 1" sensor format
• Adjustable Aperture – Manual iris from F1.4 to F16
• Manual Focus – Fine-tune focus with 0.2m minimum object distance
• C-Mount – Standard thread mount with C/CS adapter ring included
• Protective Covers – Front and back caps included

Specifications

• Resolution – 10MP
• Image Format – 1" (12.8 × 9.6 mm)
• Focal Length – 16mm
• Aperture – F1.4–F16 (manual iris)
• Mount – C-mount
• Angle of View (H×V) – 44.6° × 33.6° (1"), 30.0° × 23.2° (2/3"), 24.7° × 18.6° (1/1.8"), 21.8° × 16.4° (1/2")
• Distortion – -0.7% (1"), -0.5% (1/2")
• Minimum Object Distance – 0.2m
• Flange Back Focal Length – 17.53mm
• Lens Structure – 9 elements
• Filter Size – M37.0 × 0.75P (UV)
• Dimensions – Φ39 × 50mm
• Optical Total Length – 69.53mm
• Weight – 135.3g
• Operating Temperature – -20°C to 80°C

Ideal For

• Raspberry Pi and Jetson Nano camera projects requiring telephoto reach
• Wildlife and nature observation
• Machine vision and industrial inspection at distance
• Security and surveillance applications

Package Contents

• 1× 16mm Telephoto Lens (with front and back covers)
• 1× C/CS Connecting Ring
