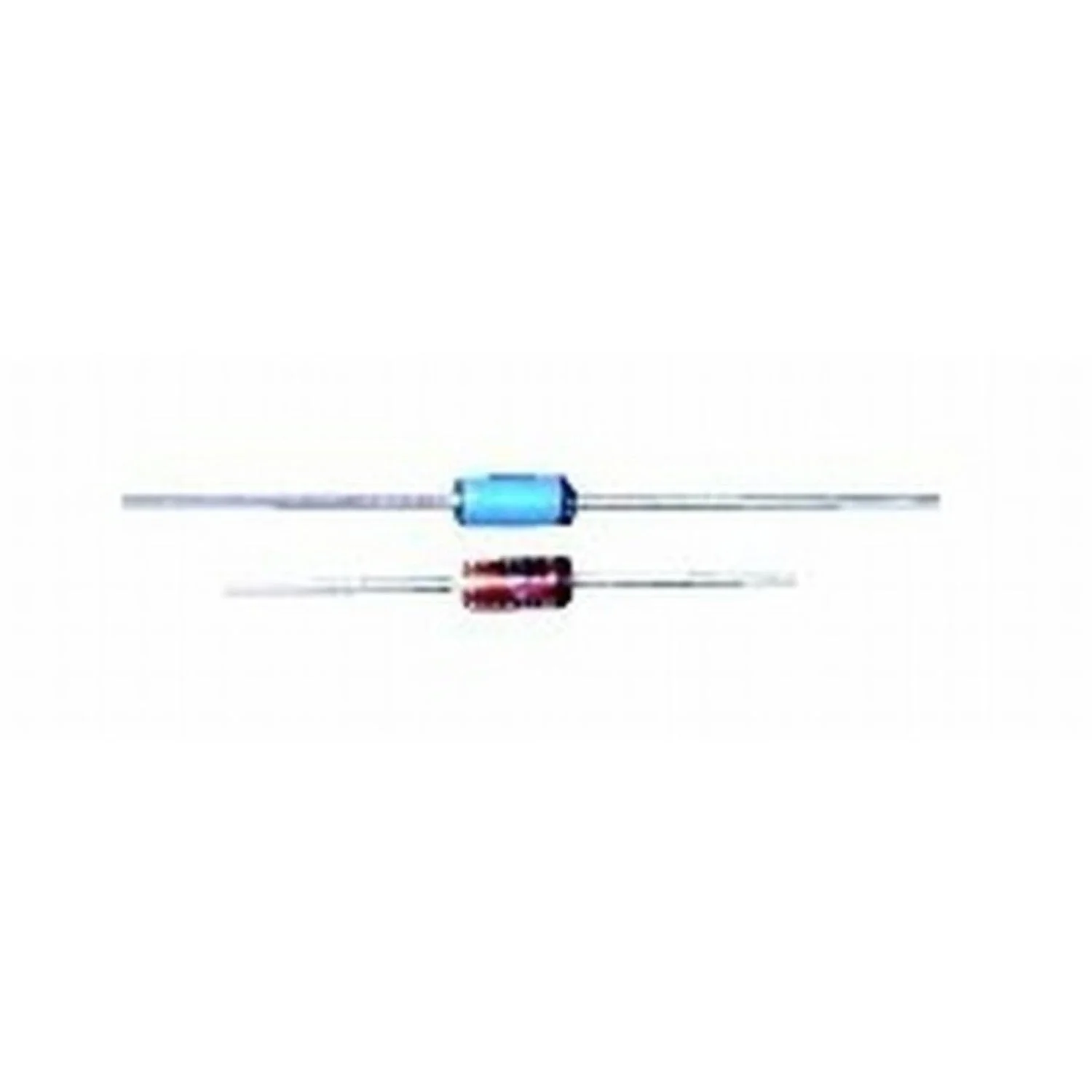

1N4007 1A 1000V Diode - Pk.4
A 4-pack of 1N4007 general-purpose silicon rectifier diodes, the highest voltage rating in the 1N400x family. Rated for 1 A continuous forward current and 1000 V peak reverse voltage, making them suitable for a wide range of rectification and protection applications.
Specifications
- Part Number: 1N4007
- Max Forward Current: 1 A (average)
- Peak Reverse Voltage: 1000 V
- Forward Voltage Drop: ~0.7 V (typical)
- Composition: Silicon
- Package: DO-41 (axial)
Common Applications
- AC-to-DC rectification in power supplies
- Reverse polarity protection for DC circuits
- Flyback protection across relay coils, solenoids, and motors
- Bridge rectifier circuits
Package Contents
- 4× 1N4007 rectifier diodes
$1.01
1N4007 1A 1000V Diode - Pk.4—
$1.01
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
A 4-pack of 1N4007 general-purpose silicon rectifier diodes, the highest voltage rating in the 1N400x family. Rated for 1 A continuous forward current and 1000 V peak reverse voltage, making them suitable for a wide range of rectification and protection applications.
Specifications
- Part Number: 1N4007
- Max Forward Current: 1 A (average)
- Peak Reverse Voltage: 1000 V
- Forward Voltage Drop: ~0.7 V (typical)
- Composition: Silicon
- Package: DO-41 (axial)
Common Applications
- AC-to-DC rectification in power supplies
- Reverse polarity protection for DC circuits
- Flyback protection across relay coils, solenoids, and motors
- Bridge rectifier circuits
Package Contents
- 4× 1N4007 rectifier diodes
