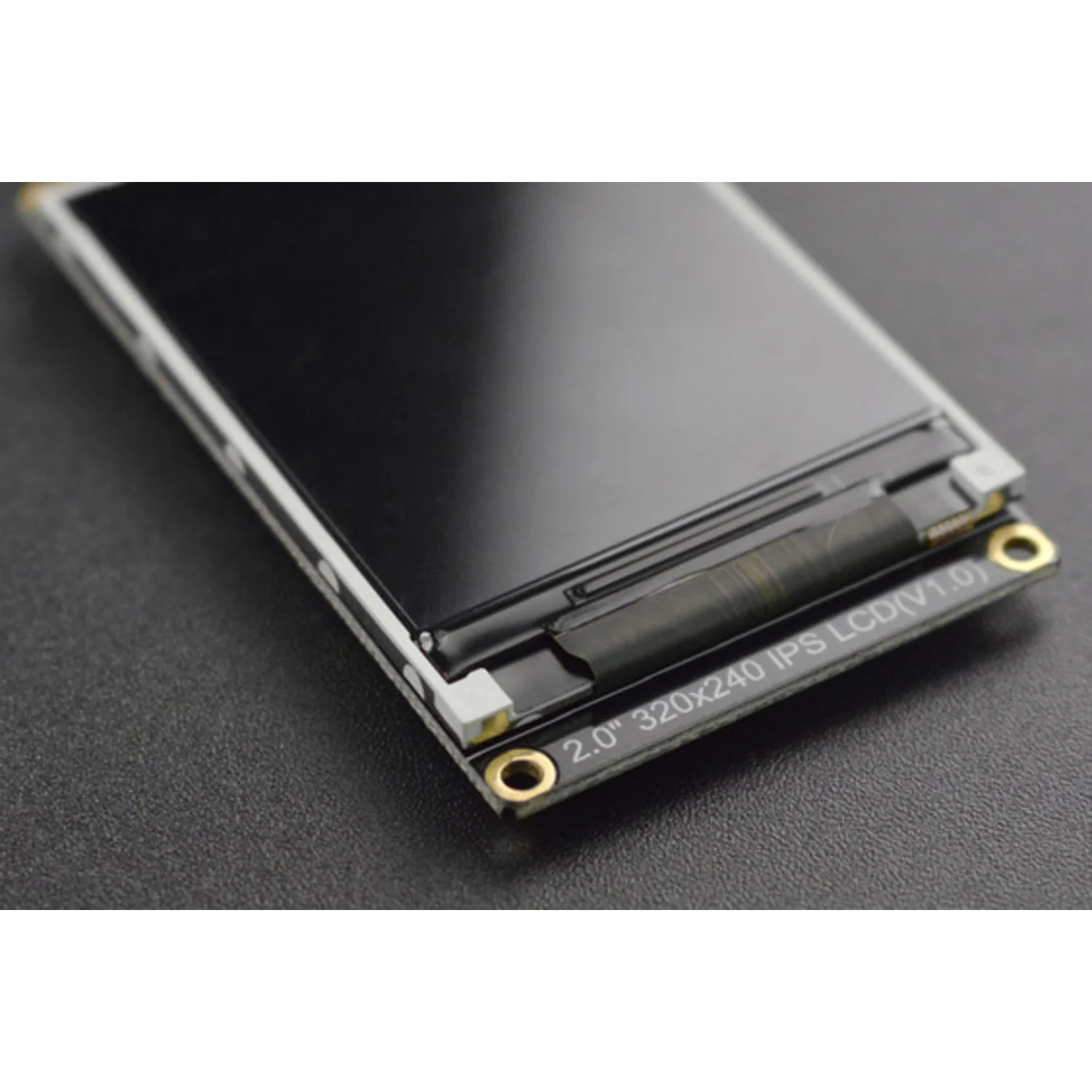

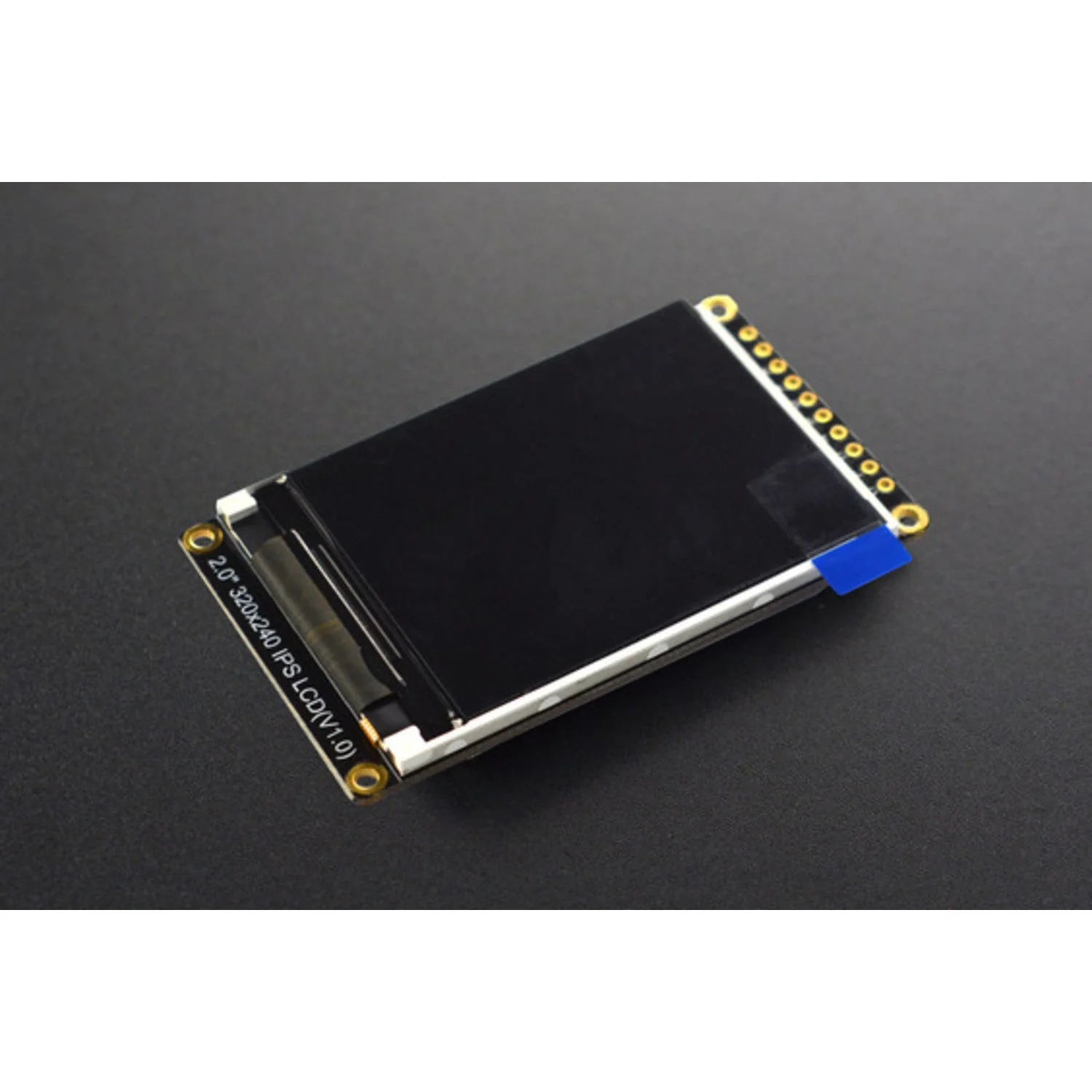

A 2.0" IPS TFT LCD display breakout with 320×240 resolution (RGB565), driven by the ST7789V controller. The wide 80° viewing angles in all directions ensure clear visibility, and the SPI interface makes it compatible with a broad range of microcontrollers including Arduino Uno, Leonardo, ESP32, ESP8266, and FireBeetle M0.

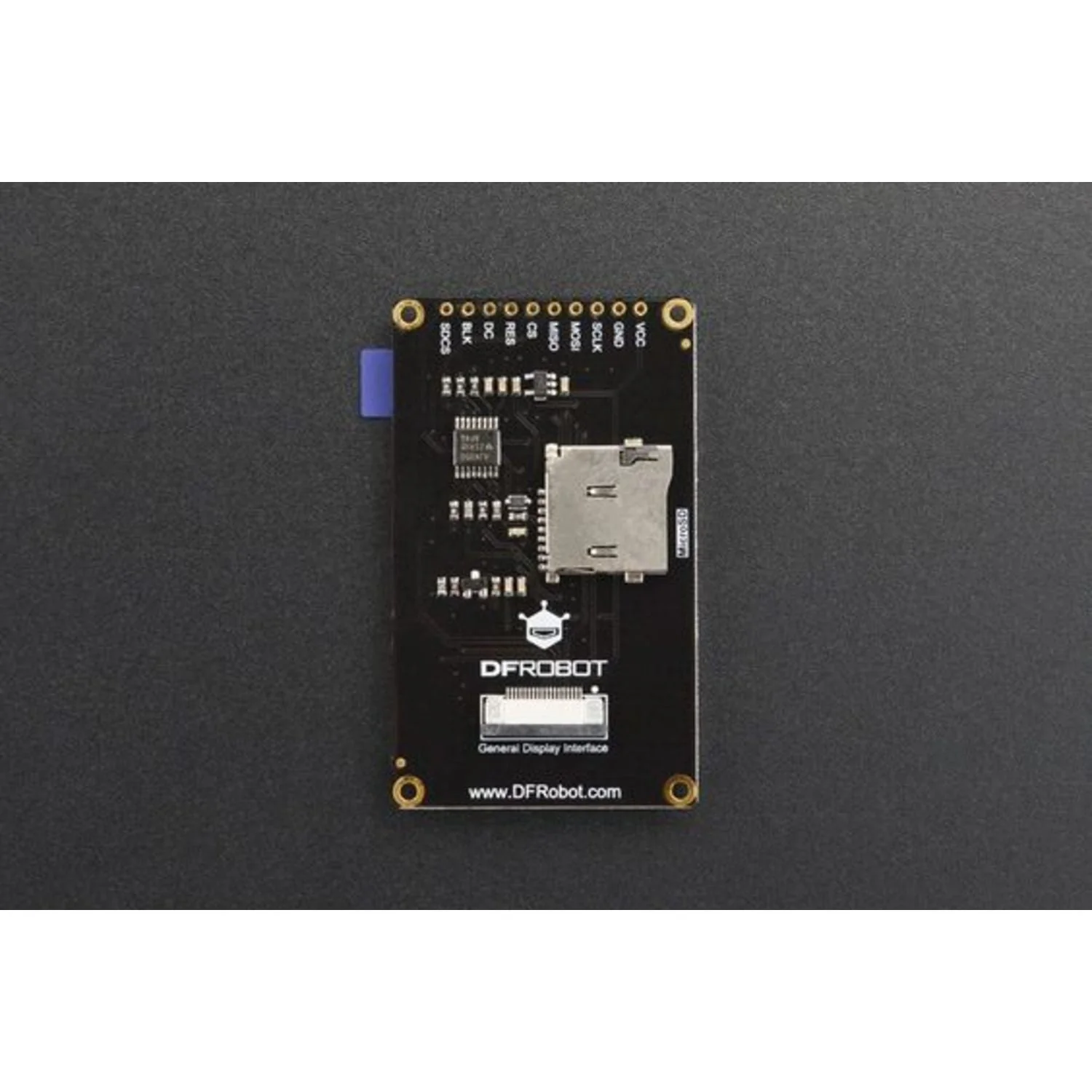

Features a GDI port for plug-and-play connection with compatible DFRobot boards, reducing wiring complexity. An on-board microSD card slot allows loading and displaying bitmap images from FAT-formatted cards.

Key Features

• 2.0" IPS Panel – Wide 80° viewing angle in all directions
• 320×240 Resolution – 16-bit colour depth (RGB565, 65,536 colours)
• ST7789V Driver – Reliable, well-documented display controller
• SPI Interface – 4-wire SPI communication
• GDI Port – Plug-and-play with compatible DFRobot M0 boards
• 3.3–5.5 V Compatible – Works with both 3.3 V and 5 V systems

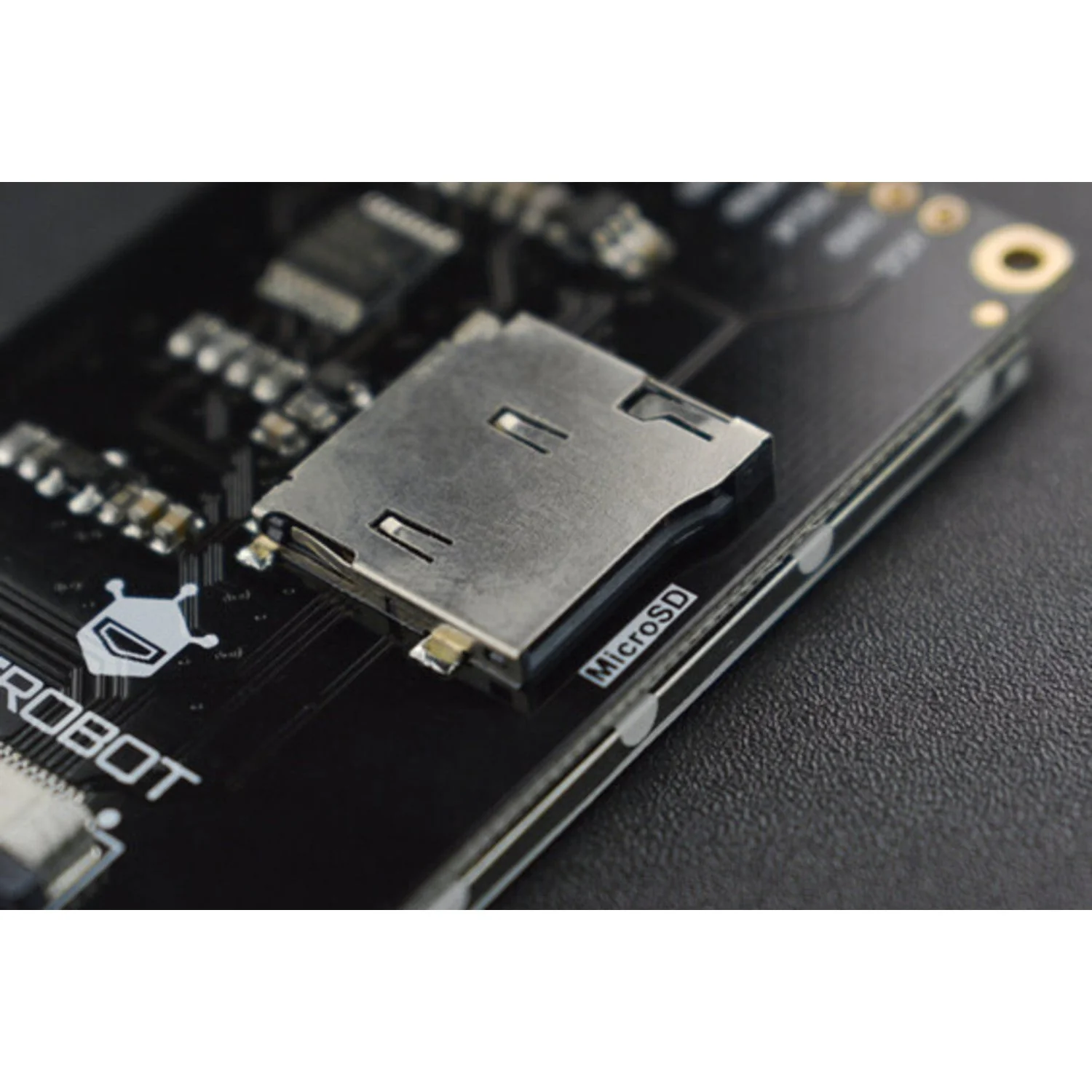

• MicroSD Card Slot – Load and display bitmap images

Specifications

• Operating Voltage: 3.3–5.5 V
• Colour Depth: 16-bit (RGB565)
• Resolution: 320 × 240 pixels
• Brightness: 250 cd/m² (typical)
• Current Consumption: ~29 mA (typical)
• Operating Temperature: -30°C to +70°C
• Display Area: 30.6 × 40.8 mm
• Module Dimensions: 35.70 × 60.00 mm
• Mounting Holes: 2 mm diameter
• Weight: 26 g

Ideal For

• Waveform monitors and data displays
• Weather stations and clock displays
• Graphical user interfaces
• Image and bitmap viewers

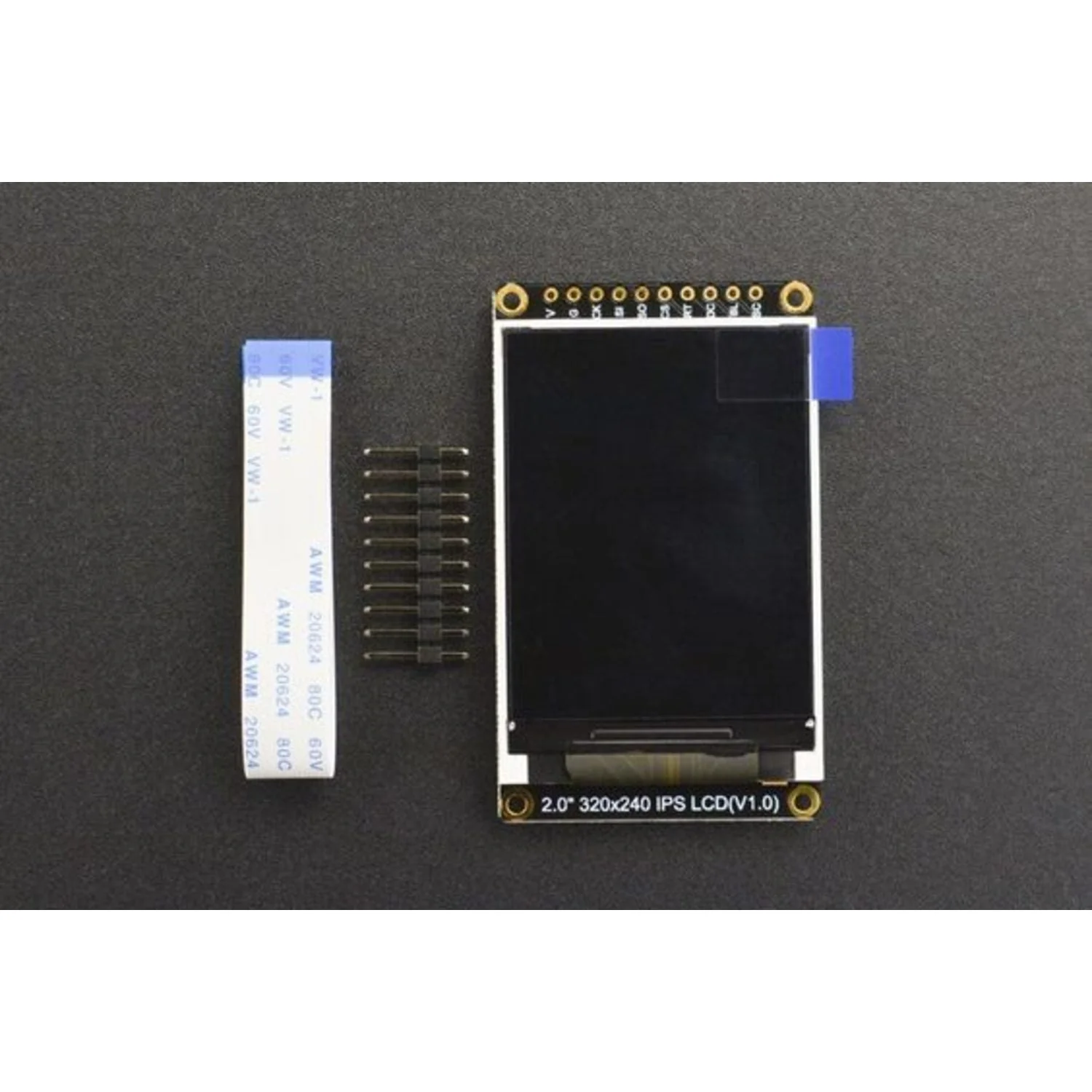

Package Contents

• 1× 2.0" IPS TFT LCD display breakout with microSD slot

Resources

• DFRobot Product Wiki – Documentation, wiring, and example code
