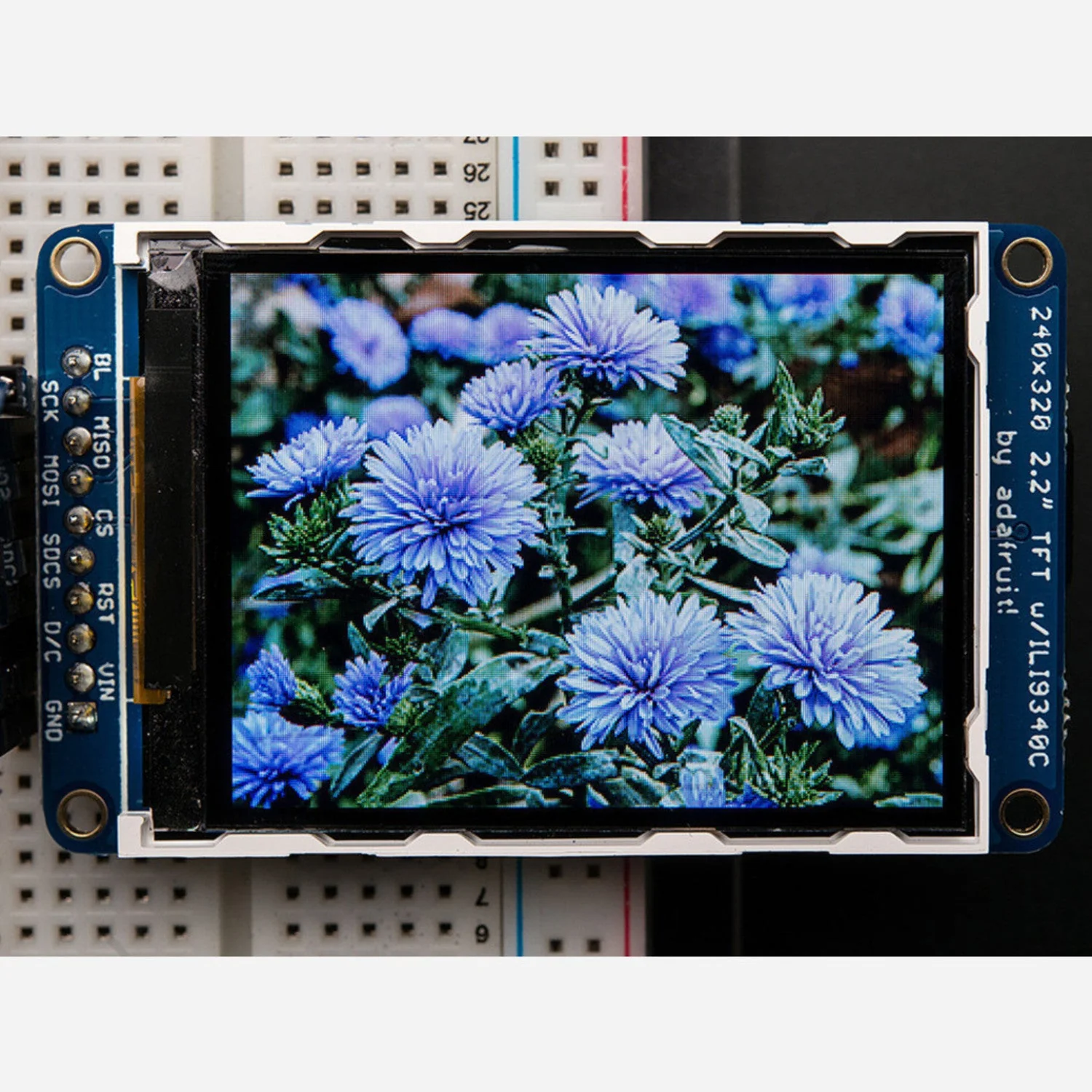

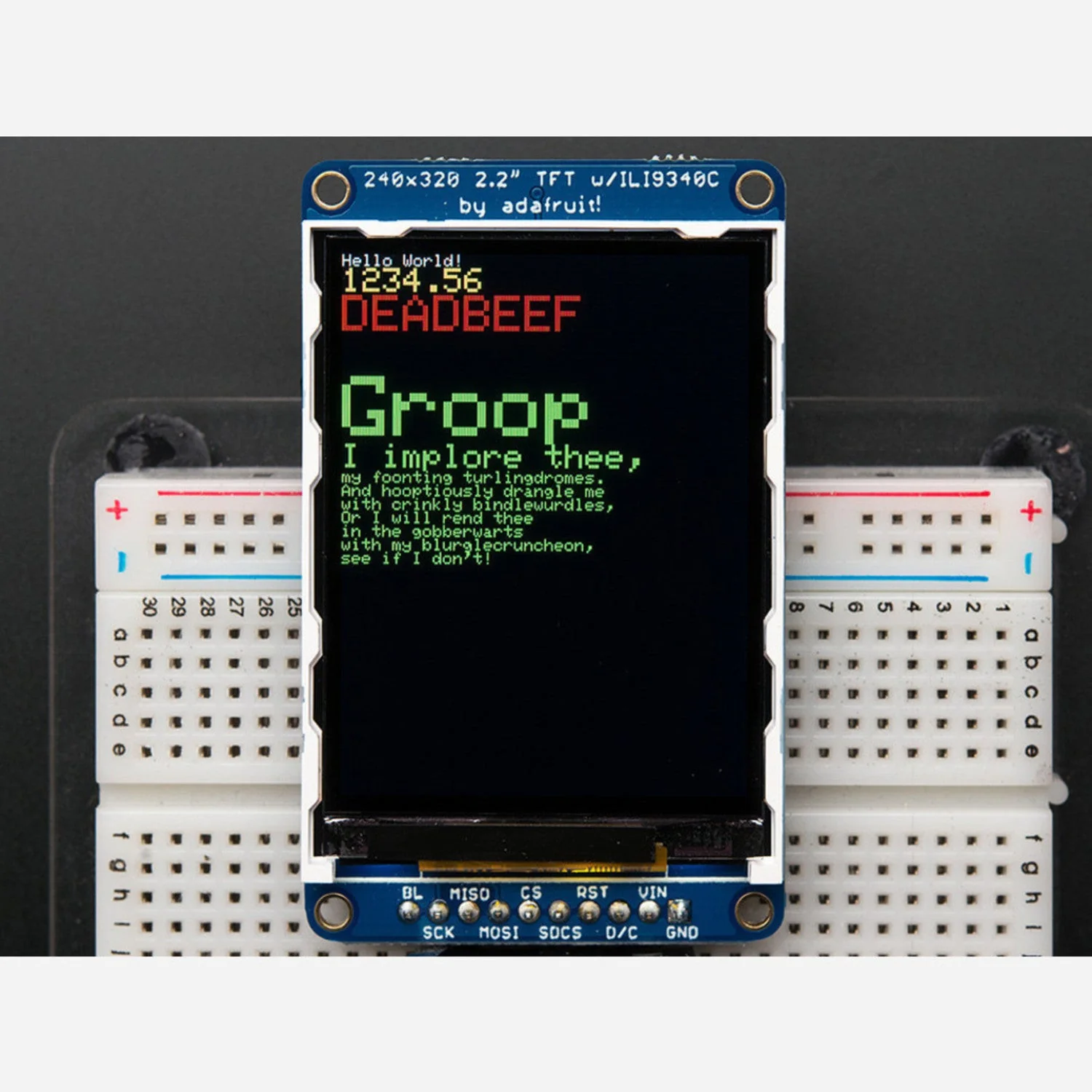

A 2.2″ TFT LCD breakout with 320 × 240 resolution and full 18-bit colour (262,144 shades), driven by an ILI9340 (or compatible) controller over 4-wire SPI. The onboard frame buffer means even low-memory microcontrollers can drive this display without issues.

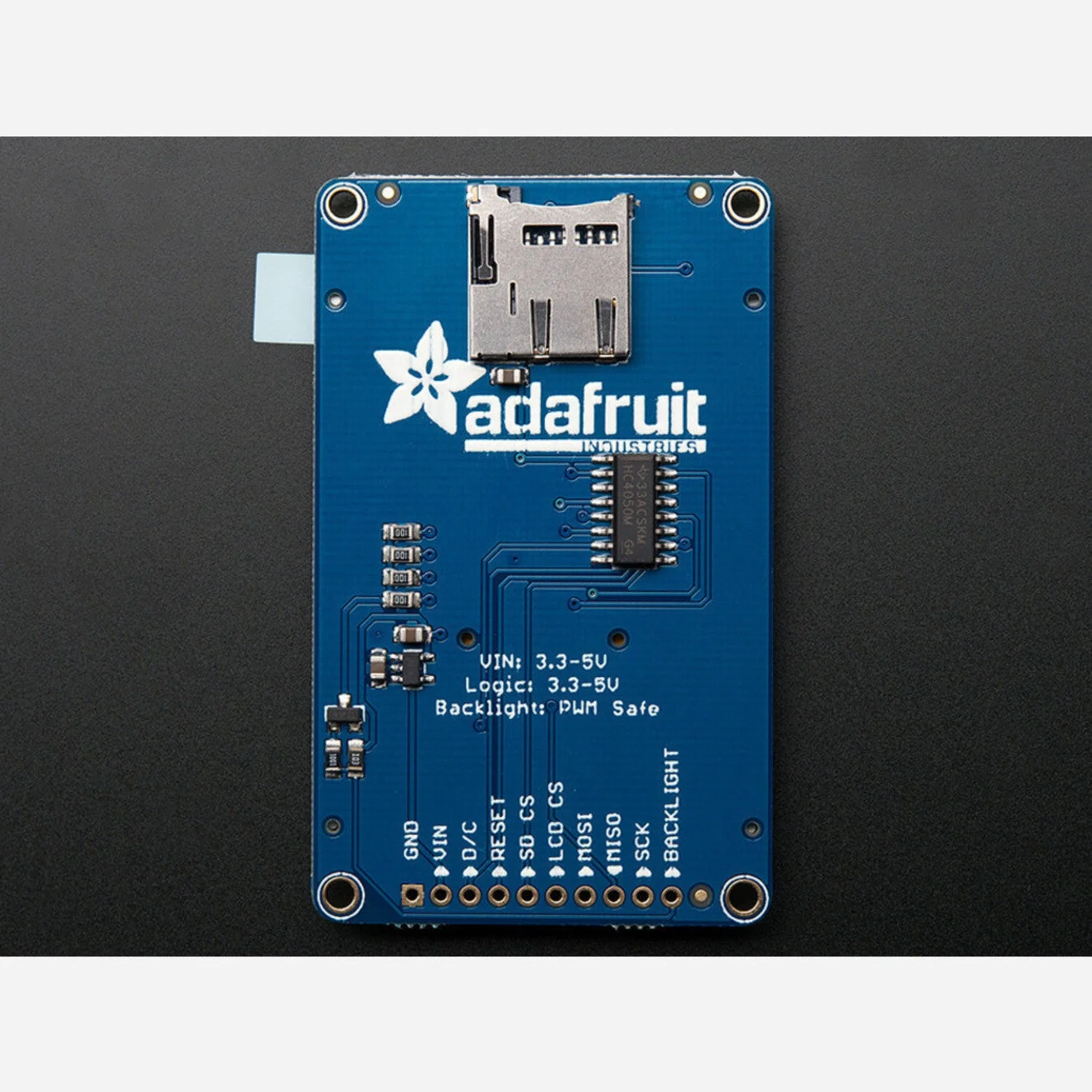

The breakout includes an ultra-low-dropout 3.3 V regulator and a 3 V / 5 V level shifter, so it works with both 3.3 V and 5 V logic. A microSD card slot on the board lets you load full-colour bitmaps from a FAT16/FAT32 formatted card.

Key Features

• 320 × 240 TFT Display – Bright, vivid colour with fast refresh rates
• 18-Bit Colour – 262,144 shades for rich, detailed graphics
• ILI9340 Driver – Consistent driver chip across all units for reliable code compatibility
• 4-Wire SPI Interface – Works with any microcontroller; hardware SPI recommended for best performance
• 3.3 V / 5 V Compatible – Onboard regulator and level shifter
• MicroSD Card Slot – Load bitmaps directly from a FAT16/FAT32 card (card not included)

Ideal For

• Adding a colour display to Arduino and microcontroller projects
• Displaying sensor data, menus, and status information

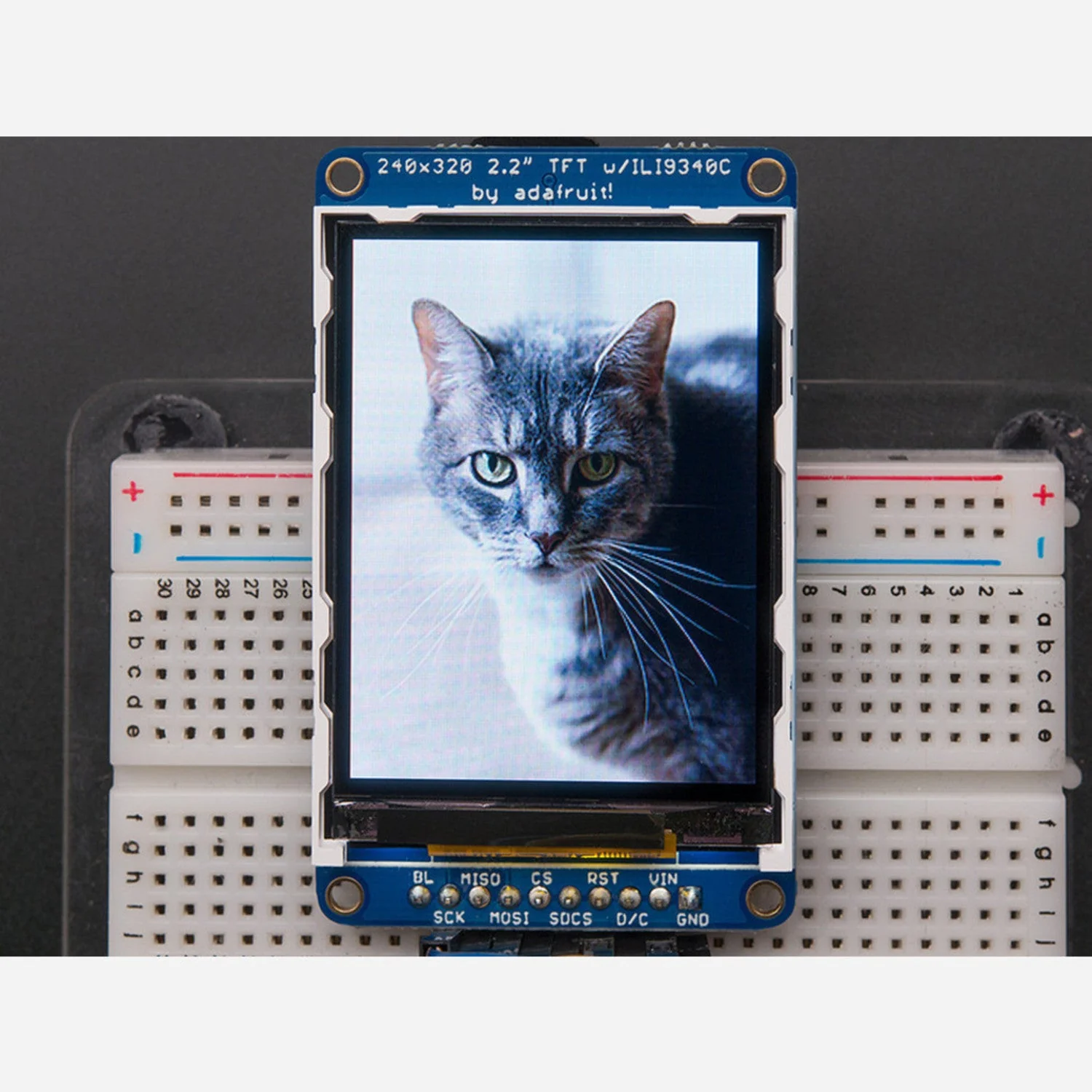

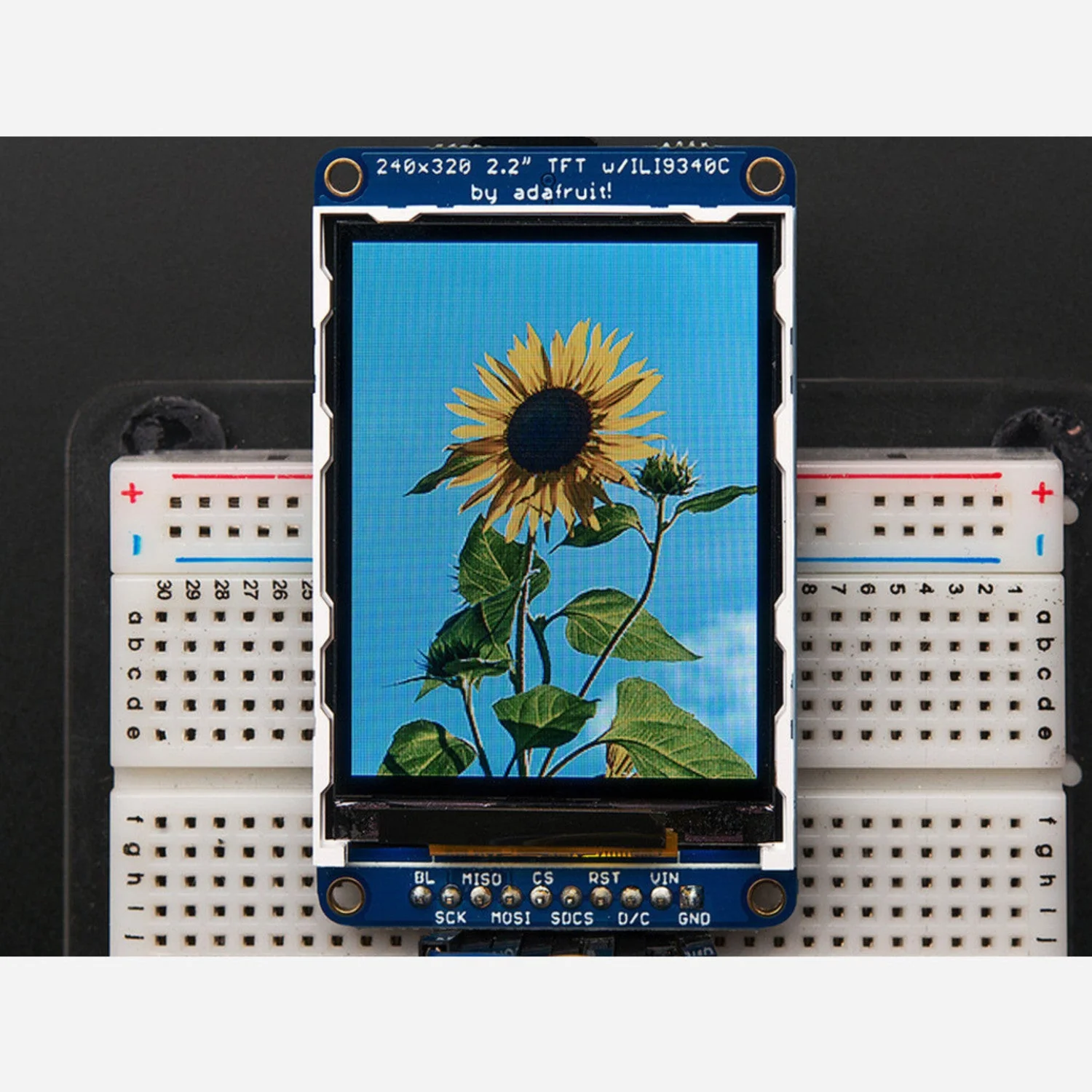

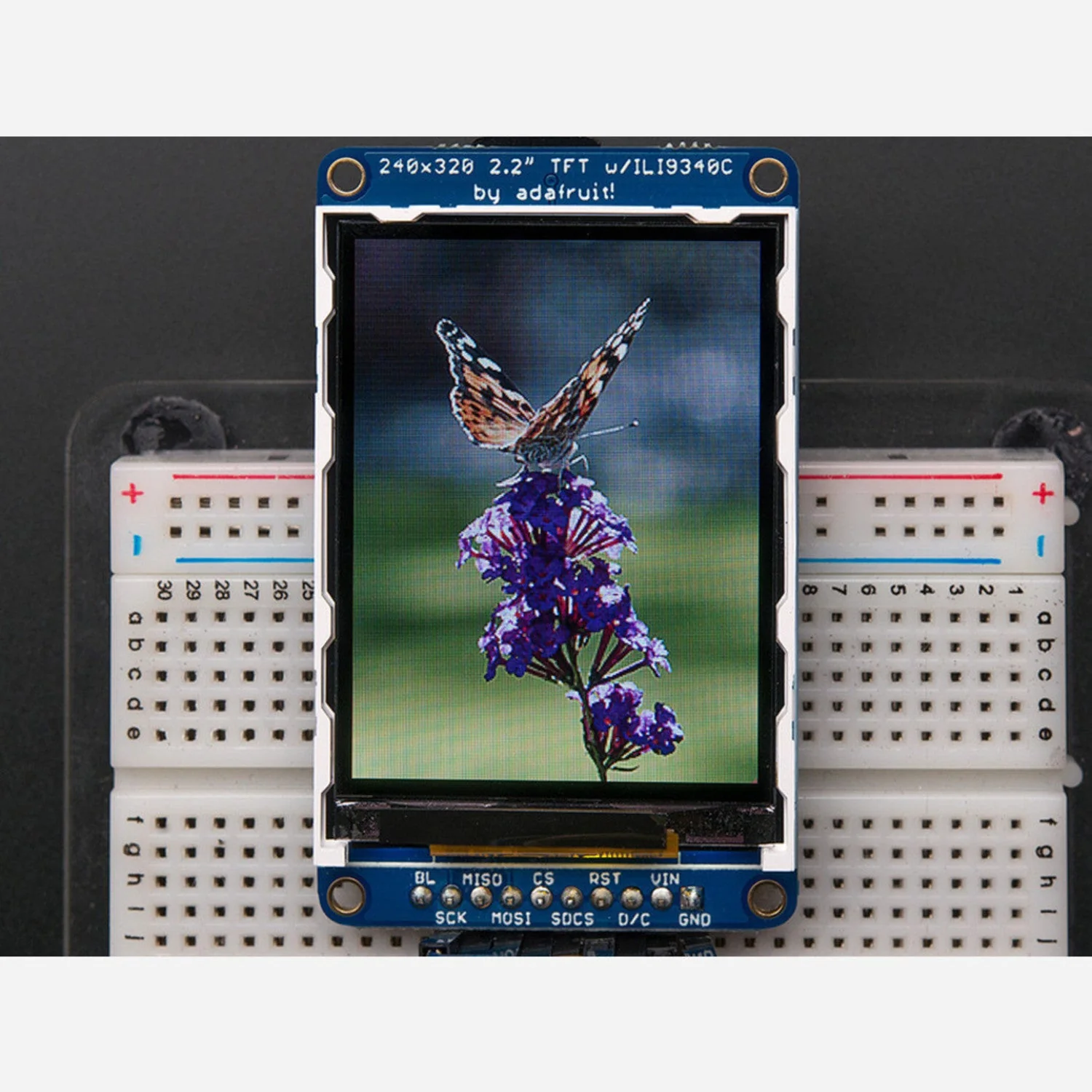

• Showing bitmap images loaded from microSD
• Portable and embedded display applications

Package Contents

• 1× 2.2″ 18-Bit Colour TFT LCD Breakout with MicroSD Slot

Resources

• Adafruit ILI9340 Library (GitHub)
