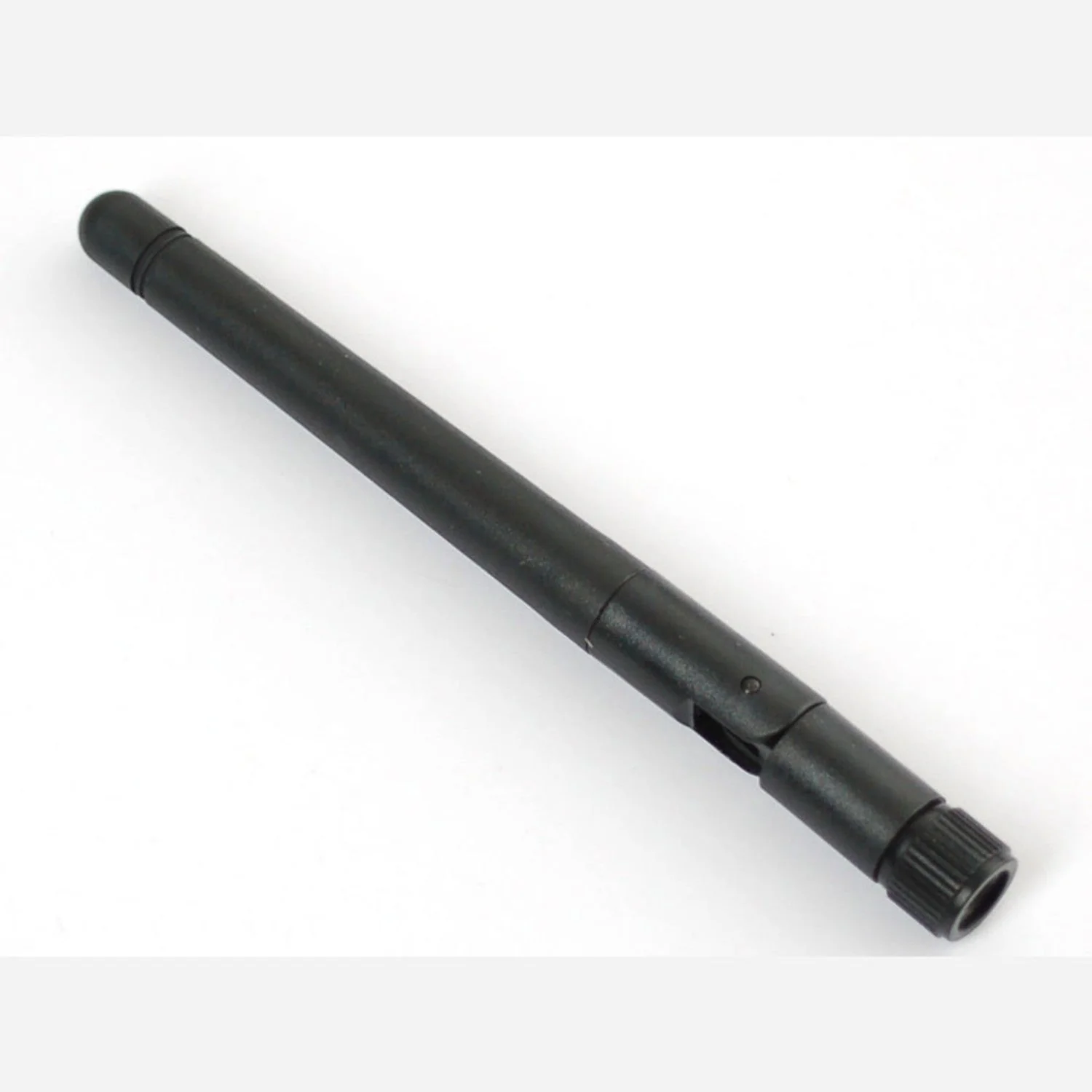

A 100 mm (4″) swivel dipole antenna with 2 dBi gain and an RP-SMA connector — the industry-standard fitting found on most WiFi routers and wireless modules. The swivel joint lets you angle the antenna for optimal signal direction.

Key Features

• 2 dBi Gain – Omni-directional coverage for short-to-medium range

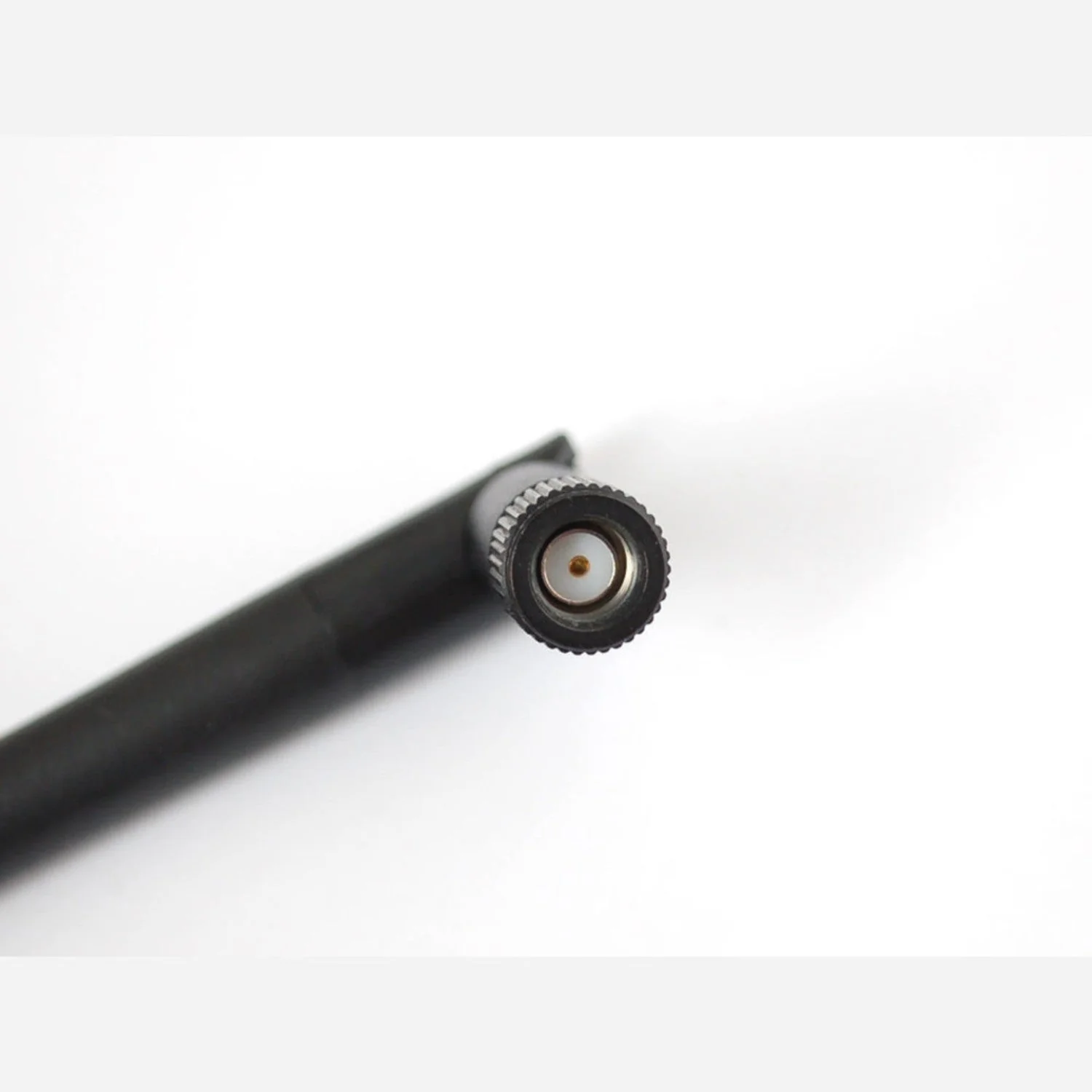

• RP-SMA Connector – Standard fitting for WiFi and wireless devices

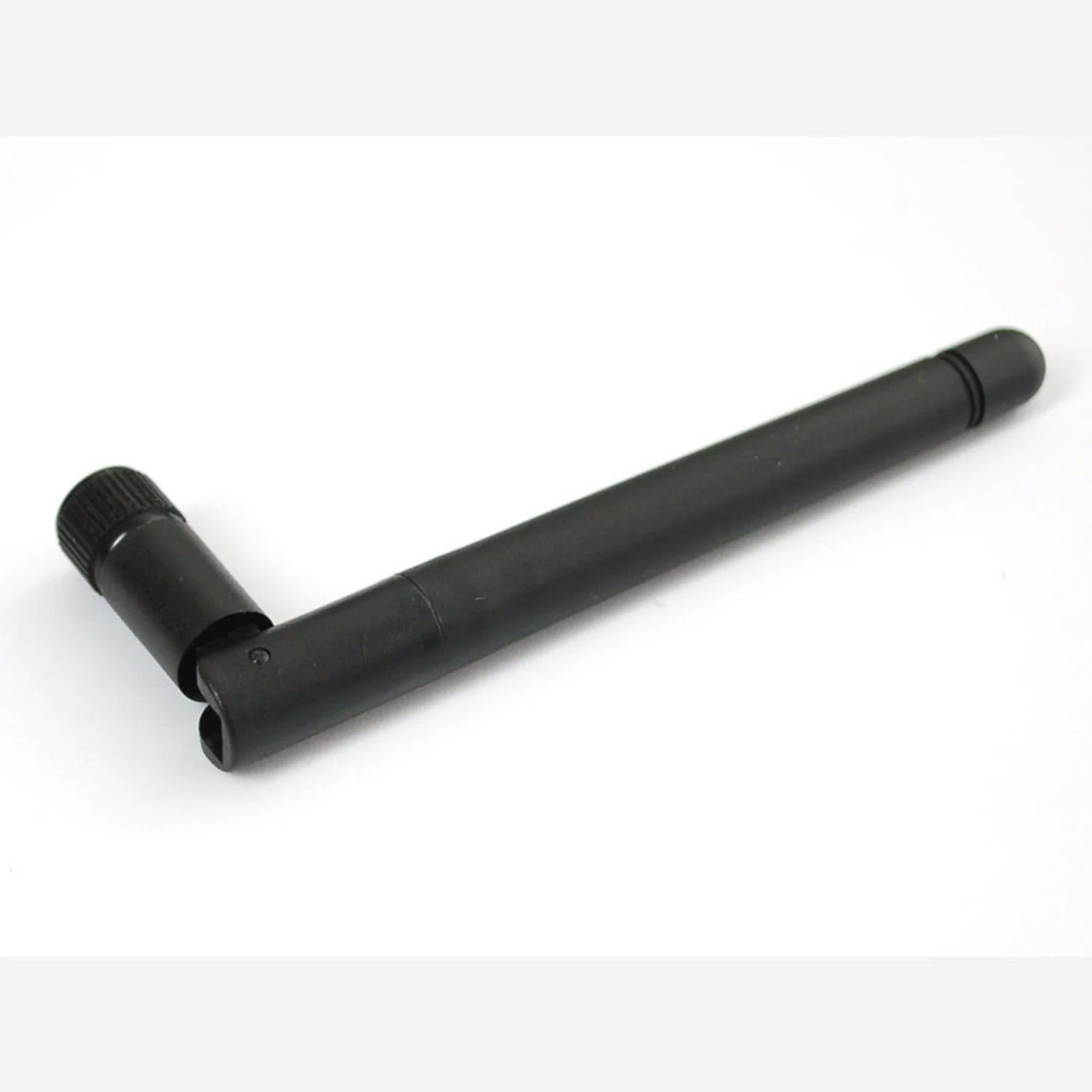

• Swivel Joint – Adjustable angle for optimal positioning
• 50 Ω Impedance – Matched for standard RF circuits
• 100 mm Length – Compact rubber duck form factor

Compatible With

• 2.4 GHz WiFi (802.11b/g/n)
• 2.4 GHz XBee modules
• Bluetooth transceivers
• Other 2.4–2.5 GHz wireless devices with RP-SMA sockets

Package Contents

• 1× 2.4 GHz 2 dBi Dipole Swivel Antenna (RP-SMA)
