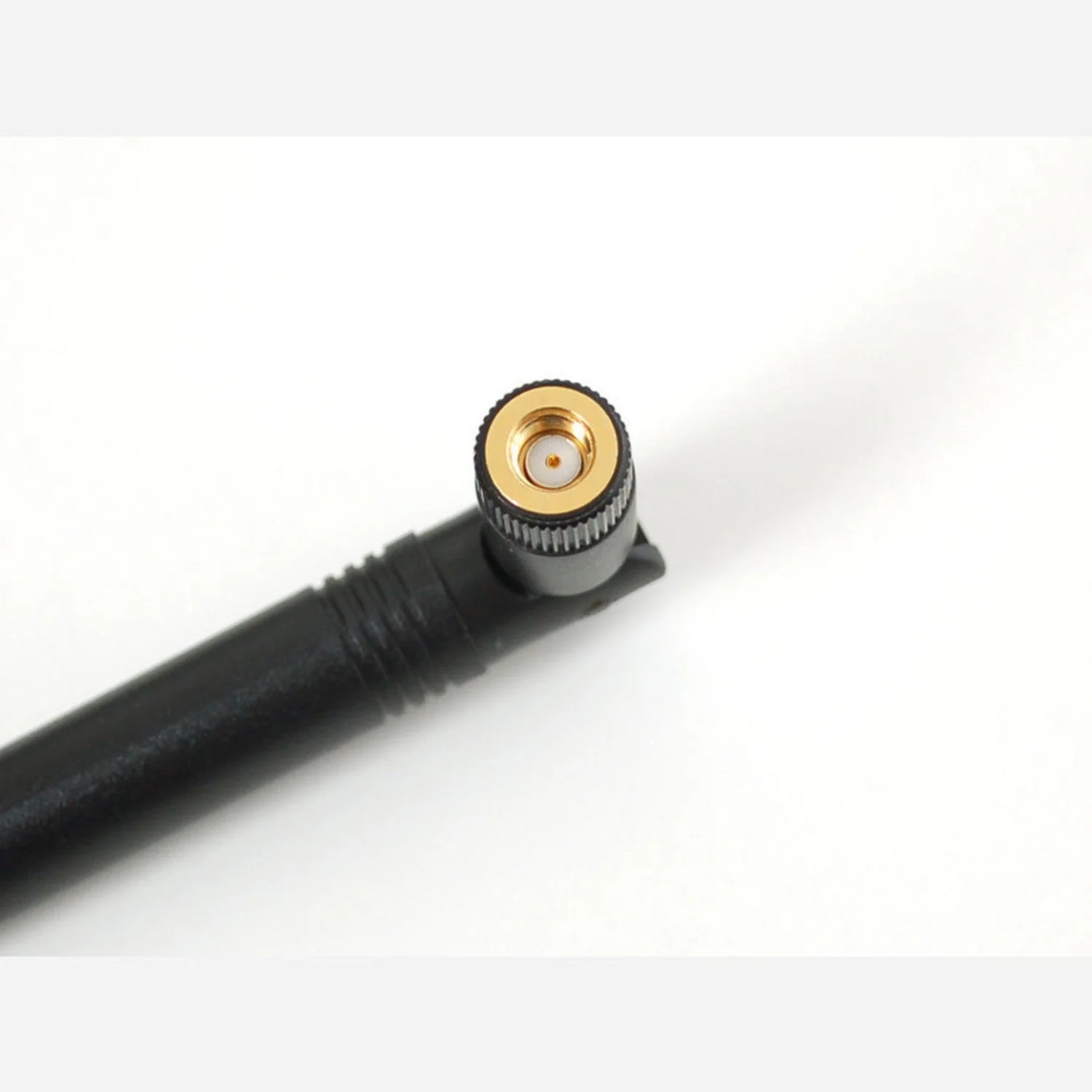

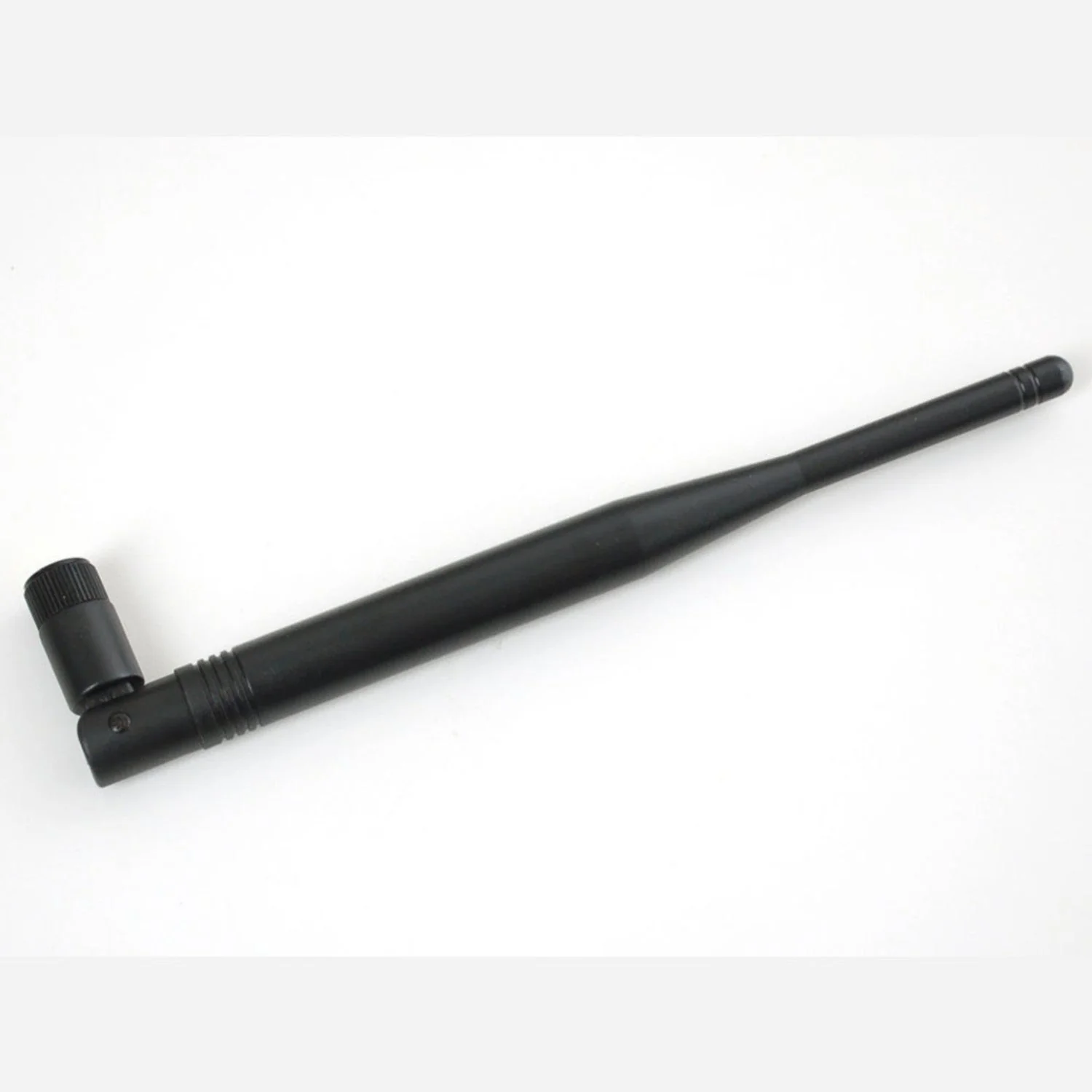

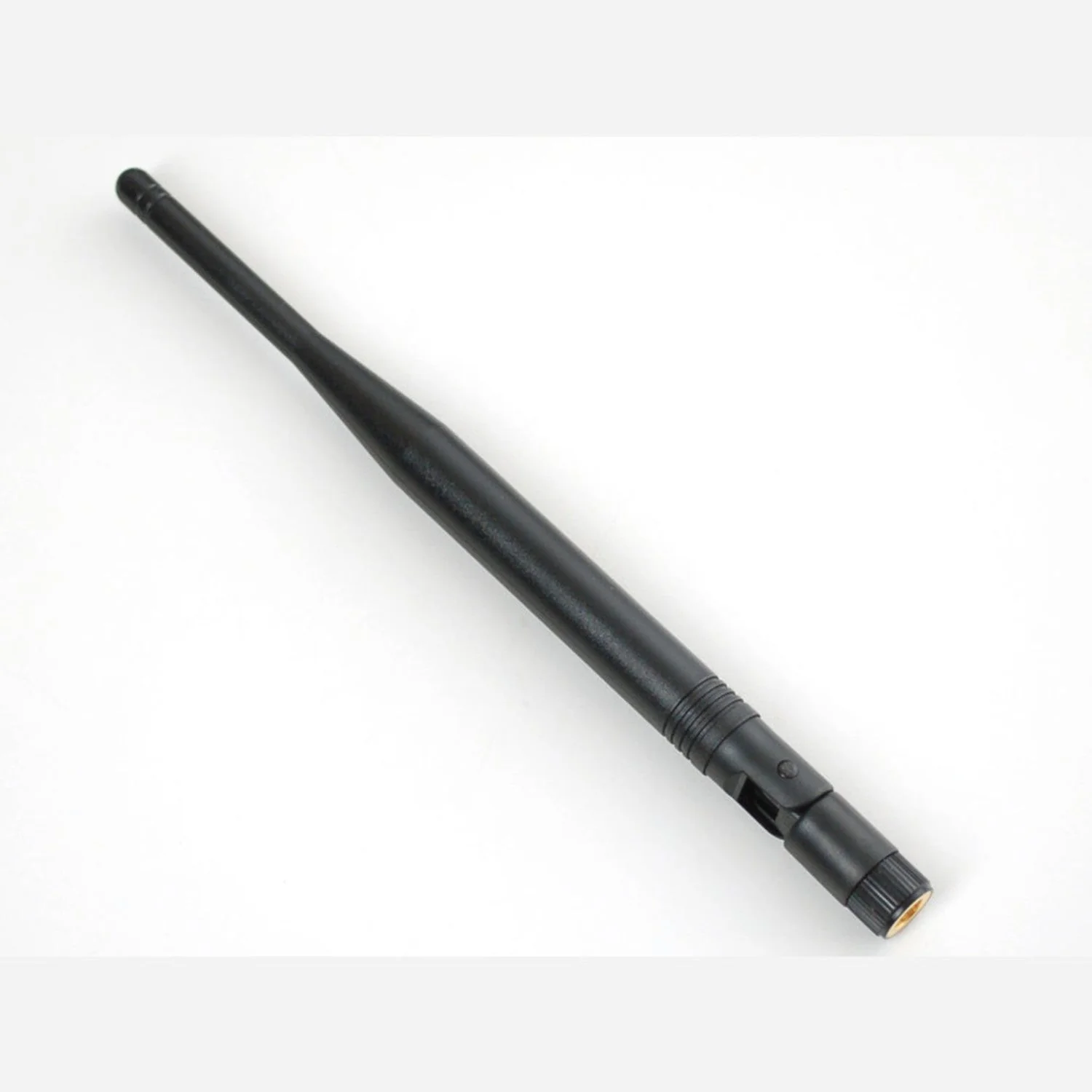

A 200 mm (8″) swivel dipole antenna with 5 dBi gain and an RP-SMA connector — the industry-standard fitting found on most WiFi routers and wireless modules. The higher gain compared to the 2 dBi version extends range at the cost of a larger form factor. The swivel joint lets you angle the antenna for optimal signal direction.

Key Features

• 5 dBi Gain – Extended range omni-directional coverage
• RP-SMA Connector – Standard fitting for WiFi and wireless devices
• Swivel Joint – Adjustable angle for optimal positioning
• 50 Ω Impedance – Matched for standard RF circuits
• 200 mm Length – Larger rubber duck form factor for higher gain

Compatible With

• 2.4 GHz WiFi (802.11b/g/n)
• 2.4 GHz XBee modules
• Bluetooth transceivers
• Other 2.4–2.5 GHz wireless devices with RP-SMA sockets

Package Contents

• 1× 2.4 GHz 5 dBi Dipole Swivel Antenna (RP-SMA)
