The 2.8" TFT LCD Breakout Board features a bright, full-colour display with a resistive touchscreen and an onboard MicroSD card socket. With 240×320 resolution and individual RGB pixel control, it delivers vivid colour output for interactive projects.

The breakout supports two interface modes: 8-bit parallel (12 lines total) for fast performance, or SPI (5 pins) for reduced wiring. Both are 3–5V compatible with onboard level shifters. The resistive touchscreen requires 4 pins (2 digital, 2 analogue) or can be used with an optional STMPE610 touch controller over I2C/SPI. In SPI mode, you can also use the MicroSD slot to load and display images.

Key Features

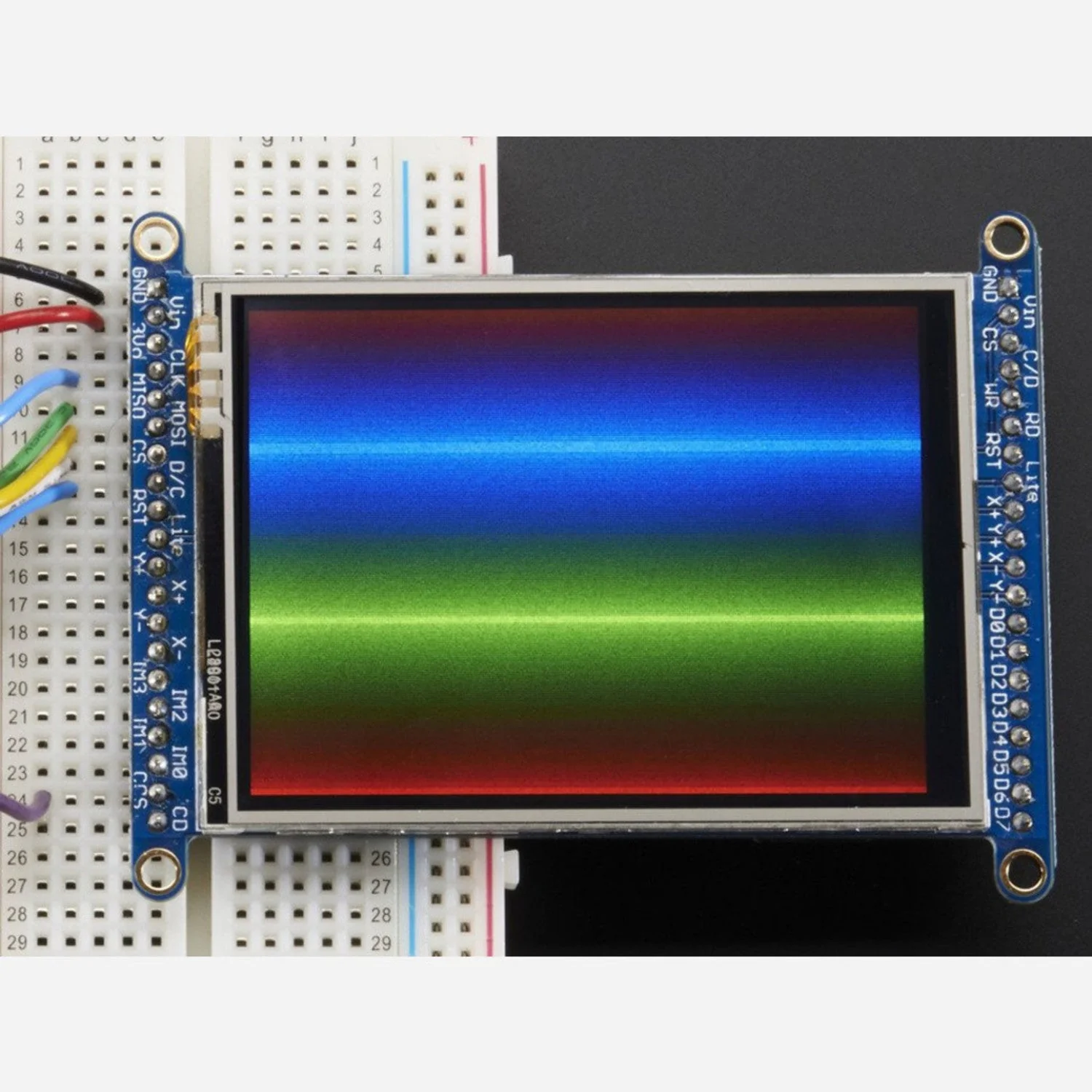

• 2.8" TFT LCD – 240×320 resolution with full RGB pixel control

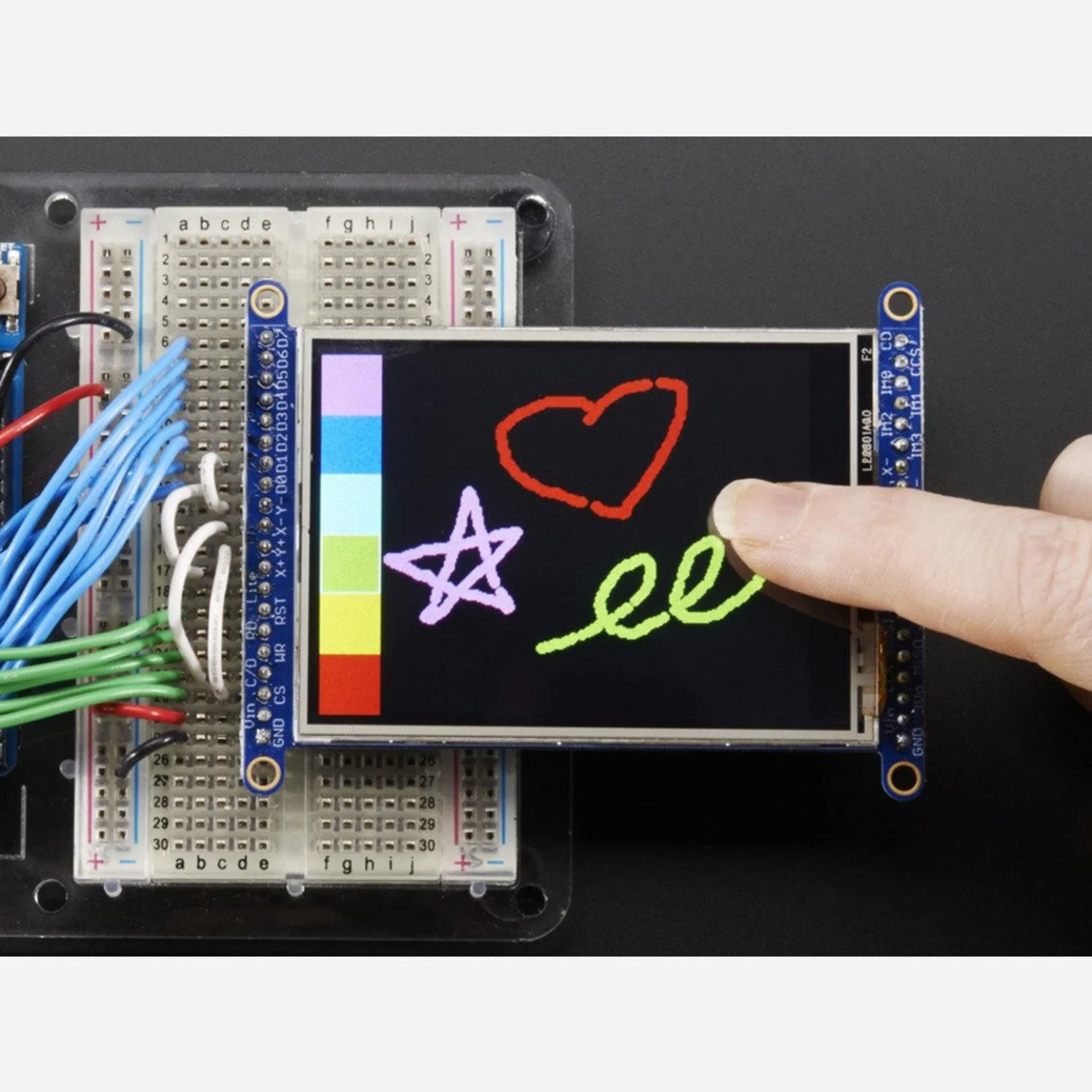

• Resistive Touchscreen – Detects X, Y, and pressure (Z) for precise input
• Dual Interface – 8-bit parallel for speed or SPI for fewer wires
• 3–5V Compatible – Onboard high-speed level shifters for any microcontroller

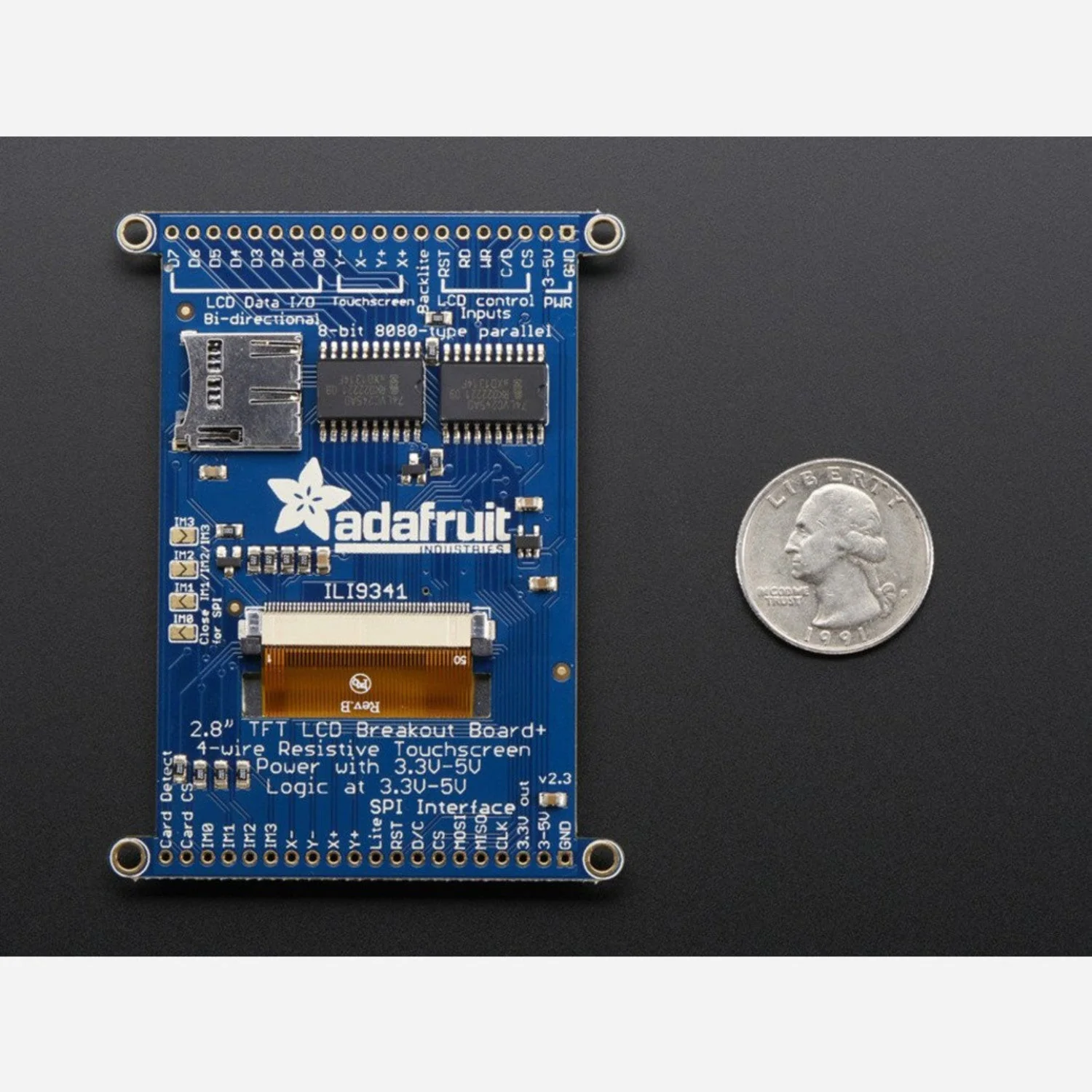

• MicroSD Card Socket – Load images and data in SPI mode
• Bright Backlight – 4 white LEDs for excellent visibility
• ILI9341 Driver – Built-in RAM buffer with extensive library support

Ideal For

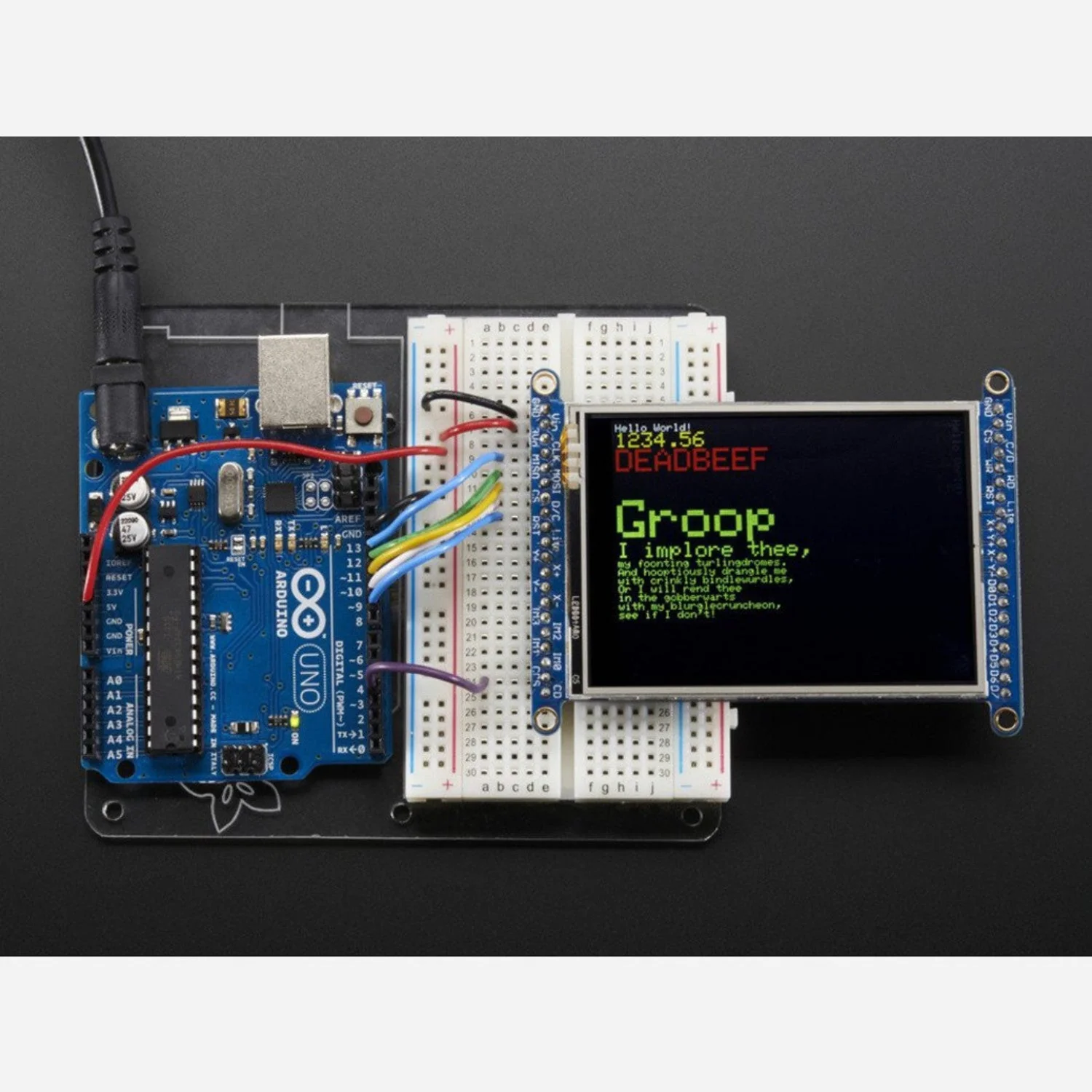

• Arduino and microcontroller display projects
• Touch-based user interfaces and menu systems
• Data dashboards and sensor monitoring

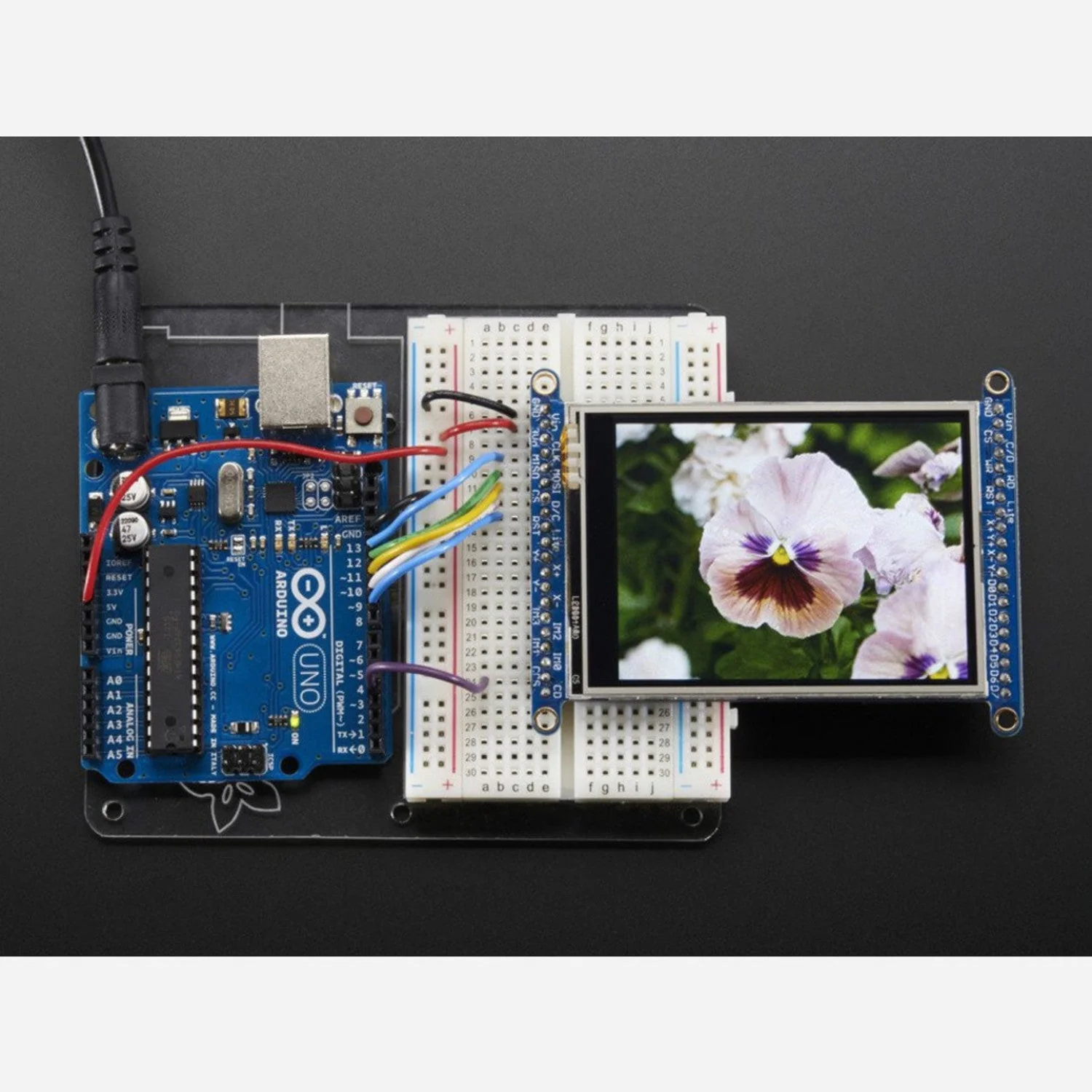

• Image slideshow displays

Package Contents

• 1× 2.8" TFT LCD Resistive Touchscreen Breakout Board

Resources

• Adafruit 2.8" TFT Touchscreen Breakout Guide
• Adafruit ILI9341 SPI Library (GitHub)
• Adafruit TFTLCD 8-bit Library (GitHub)
• Adafruit Touch Screen Library (GitHub)
