A 200:1 plastic gearmotor with a 90-degree output shaft, offering a compact and affordable solution for small robot designs. The low-current brushed DC motor is well-suited for use with common motor drivers, and the recommended operating voltage range is 3–12V.

The gearbox is fully enclosed and protected by a built-in safety clutch that slips before gear teeth can shear, preventing damage during stall conditions. The output shaft is 6mm long and 7mm in diameter with two flattened sides.

Key Features

• 200:1 Gear Ratio – Higher torque, lower speed configuration
• 90° Output Shaft – Output shaft perpendicular to motor axis
• Built-in Safety Clutch – Protects gears from damage during stalls
• Pre-Assembled – Ready to use with fully enclosed gears
• Compact Size – Ideal for small robot platforms
• Two Mounting Holes – Compatible with L-bracket mounting

Specifications (at 6V)

• Gear Ratio: 200:1
• Operating Voltage: 3–12V
• No-Load Speed: ~51 RPM
• Stall Torque: ~100 oz·in
• Free-Running Current: 70mA
• Stall Current: 800mA

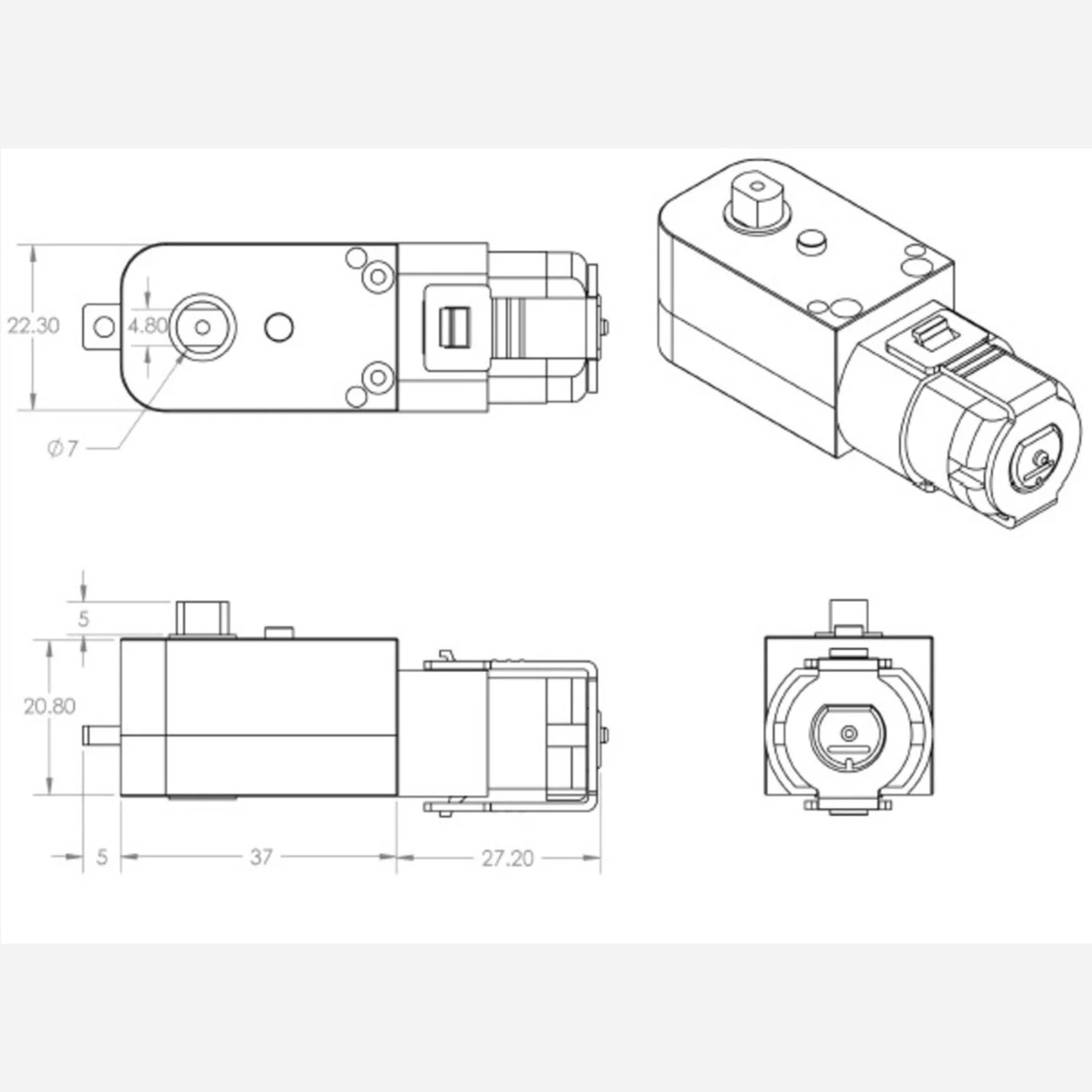

• Output Shaft: 7mm diameter × 6mm long, dual-flat
• Output Angle: 90° from motor axis

Ideal For

• Small robot platforms and drivetrains
• Low-speed, high-torque applications
• Educational robotics kits
• Battery-powered mobile projects

Package Contents

• 1× 200:1 Plastic Gearmotor (90° output, pre-assembled)
