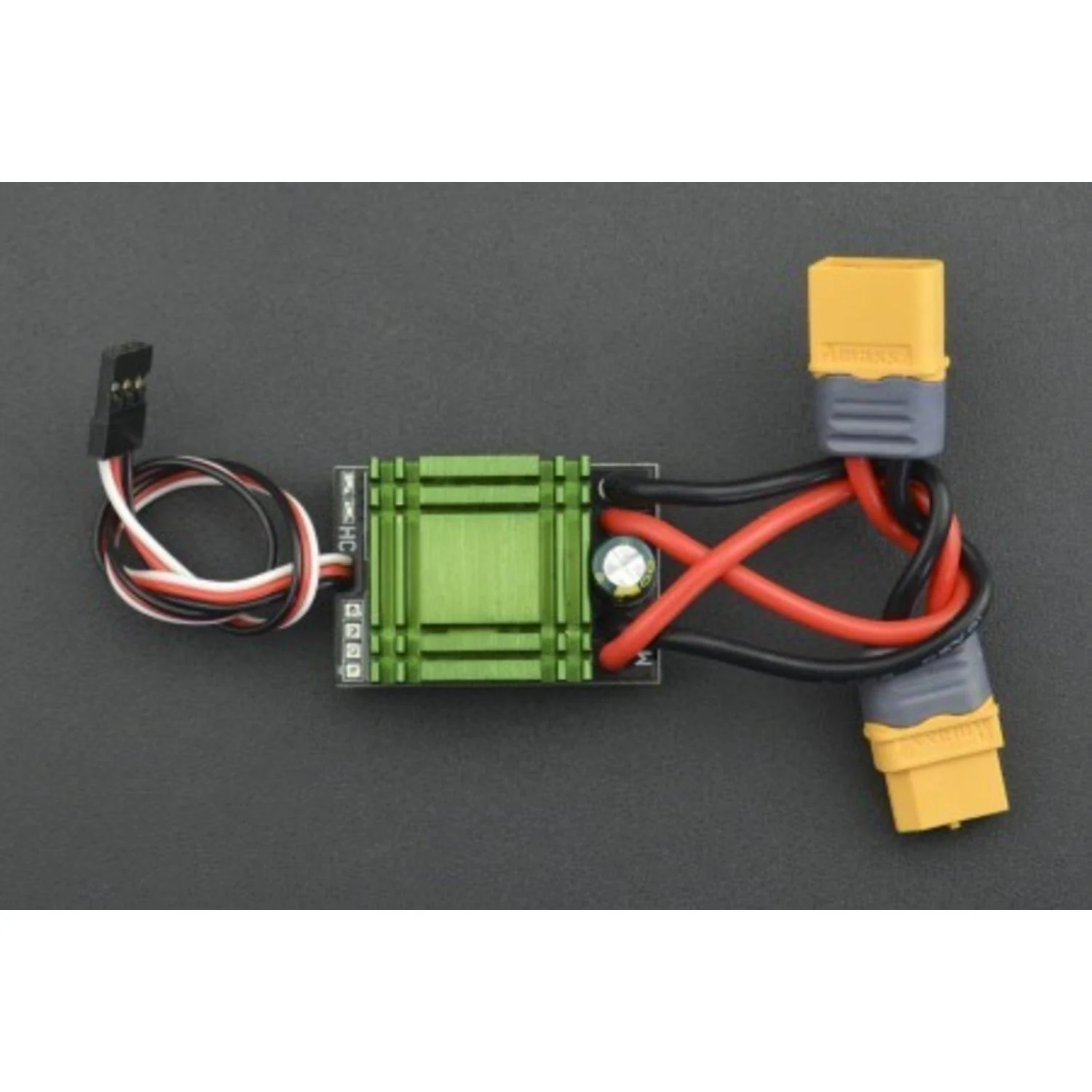

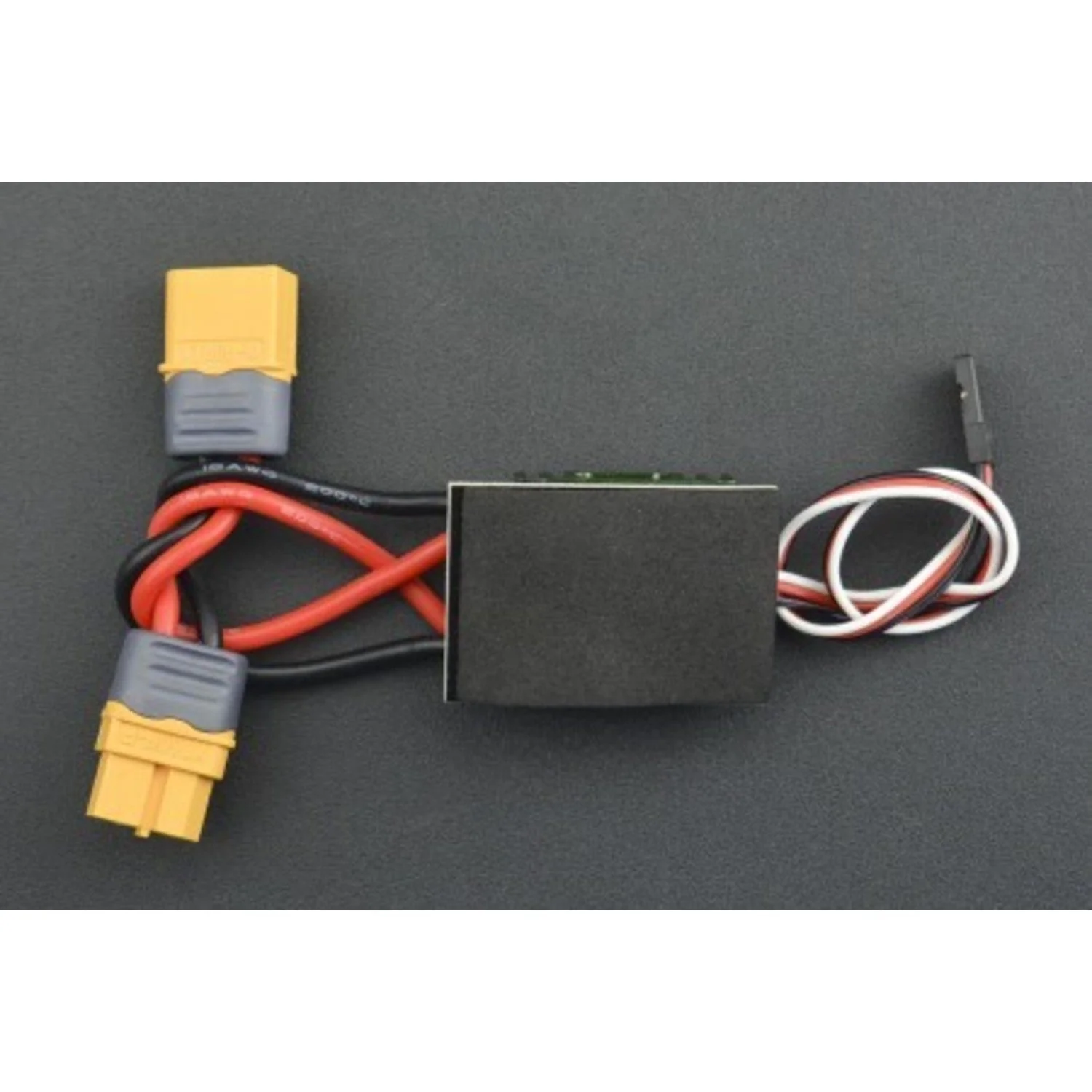

A 20A bidirectional brushed ESC (Electronic Speed Controller) for RC and robotics applications. Controlled via PPM signal, it drives brushed motors in both forward and reverse directions. The XT60 power connector supports 2S lithium batteries (4.8–8.4V), with up to 320A instantaneous peak current in both directions.

Key Features

• Bidirectional Control – Forward and reverse motor rotation via PPM signal
• 20A Continuous Current – 320A peak in both directions
• XT60 Power Connector – Secure connection for 2S LiPo batteries
• 4mm Banana Motor Plugs – Easy motor connection

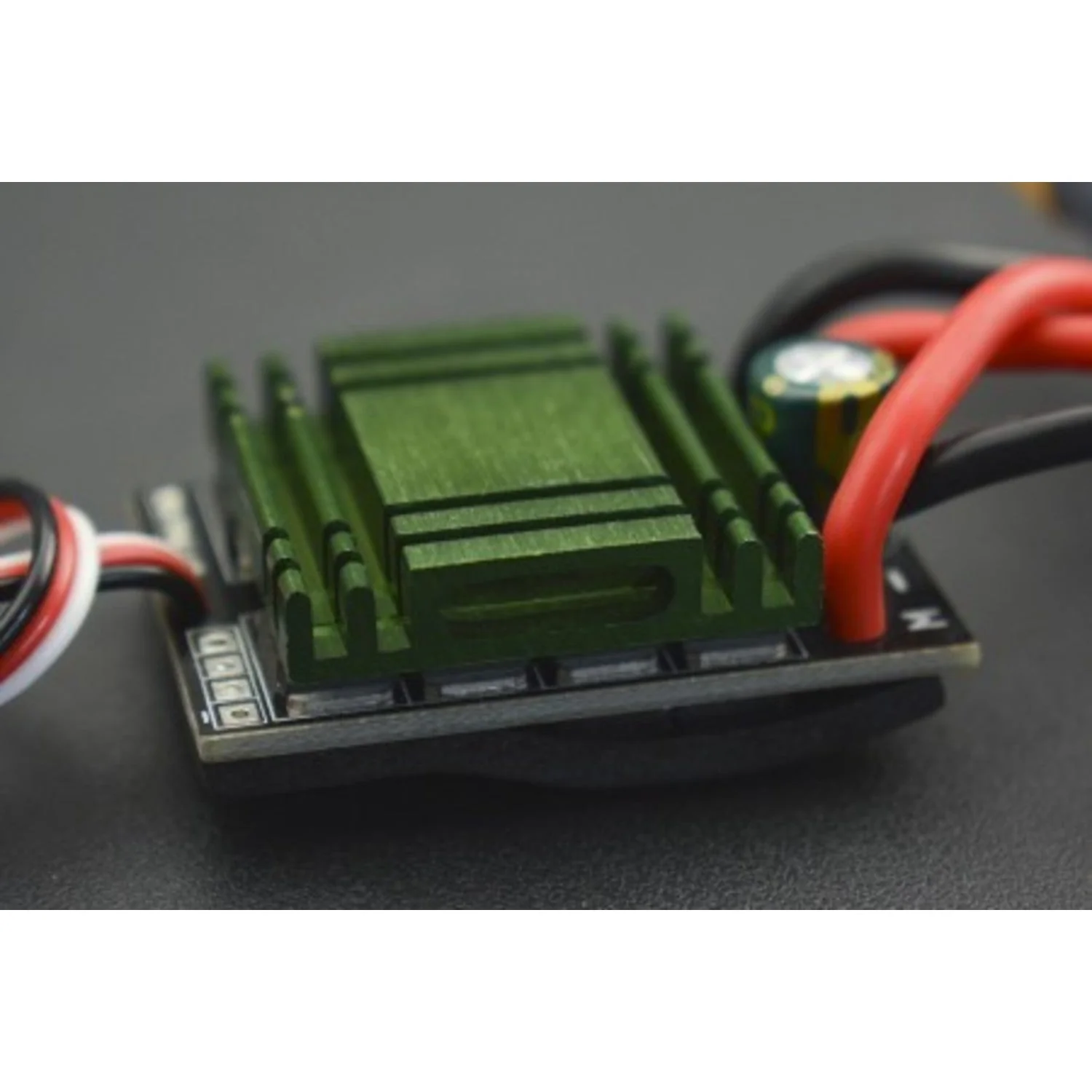

• Compact Design – 42 × 28 × 15mm with integrated heatsink
• LED Status Indicator – Shows signal state and calibration progress

Specifications

• Type: Bidirectional brushed ESC (without brake)
• Continuous Current: 20A
• Peak Current: 320A (forward and reverse)
• Voltage Range: 4.8V–8.4V (2S lithium)
• Control Signal: PPM
• Power Connector: XT60
• Motor Connector: 4mm banana plug
• Compatible Motors: Brushed (260/370/380/540)
• Wire Gauge: 16AWG, 100mm leads
• Dimensions: 42 × 28 × 15mm (including heatsink)
• Weight: 30g

Calibration

1. Connect the ESC signal cable to the receiver channel
2. Turn on the remote controller and push the joystick to maximum position
3. Turn on ESC power — the indicator light will blink
4. After a few seconds, the indicator light flashes twice
5. Move the joystick to the middle position — the light flashes three times
6. Calibration complete

Ideal For

• RC cars, boats, and tanks
• Robotics with bidirectional motor control
• DIY remote-controlled vehicles

Package Contents

• 1× 20A Bidirectional Brushed ESC with XT60 Connector
