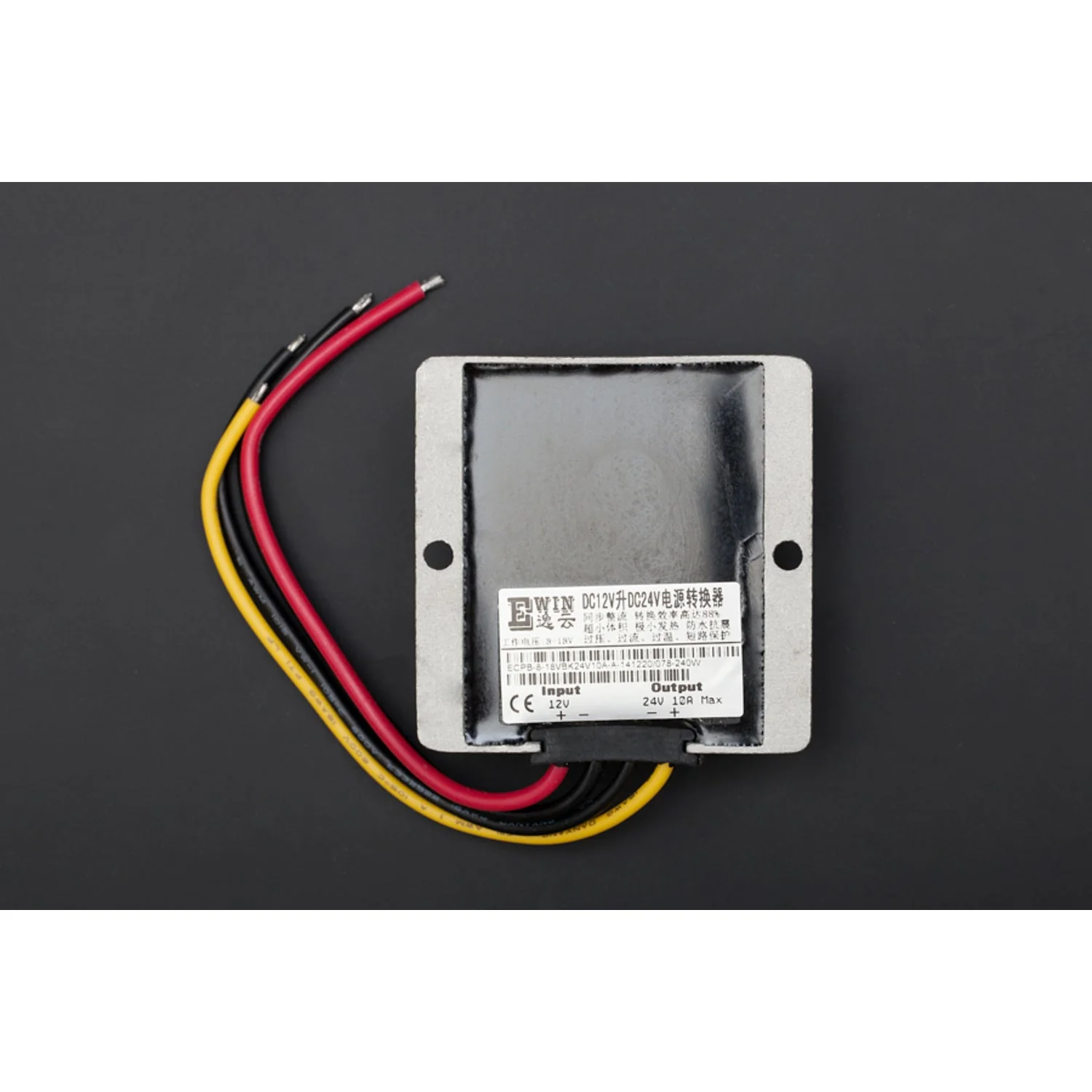

A waterproof DC-DC step-up converter that takes 8–18V DC input and outputs a stable 24V at up to 10A (240W). The sealed, shockproof enclosure makes it suitable for robotics, outdoor installations, and demanding environments.

Key Features

• 240W Output – 24V at up to 10A continuous
• Wide Input Range – Accepts 8–18V DC input
• Waterproof & Shockproof – Sealed enclosure for harsh environments
• Comprehensive Protection – Overvoltage, overcurrent, overheat, and short-circuit protection
• High Efficiency – 82–88% conversion efficiency with low heat generation

Specifications

• Input Voltage: 8–18V DC
• Output Voltage: 24V DC
• Output Current: 10A (max)
• Efficiency: 82–88%
• Max Operating Temperature: 80°C
• Dimensions: 74 × 74 × 32mm
• Weight: 0.28kg

Ideal For

• Robotics power systems
• 24V motor and actuator supplies
• Vehicle and marine electronics
• Outdoor and weatherproof installations

Package Contents

• 1× 240W DC-DC Converter (FIT0172)
