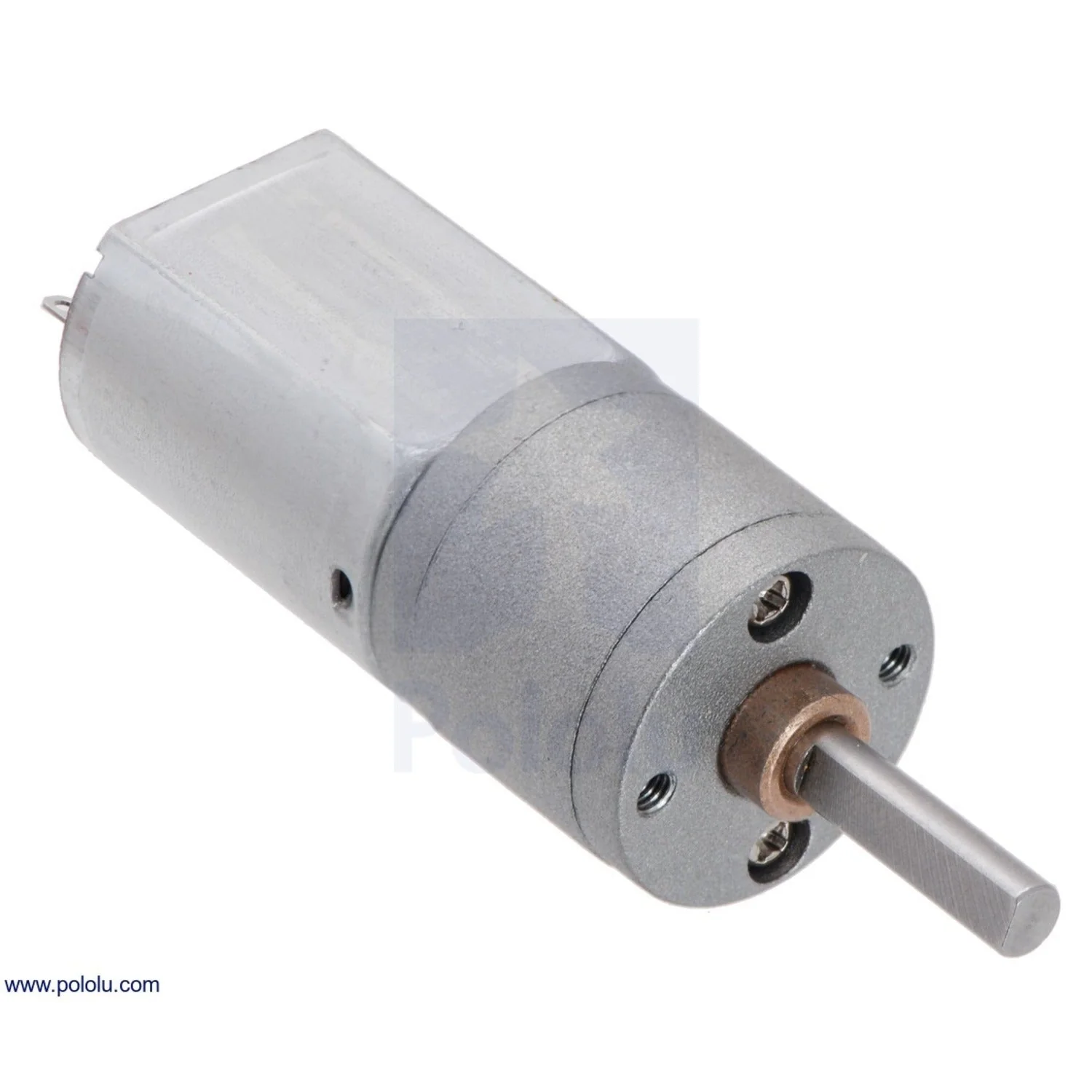

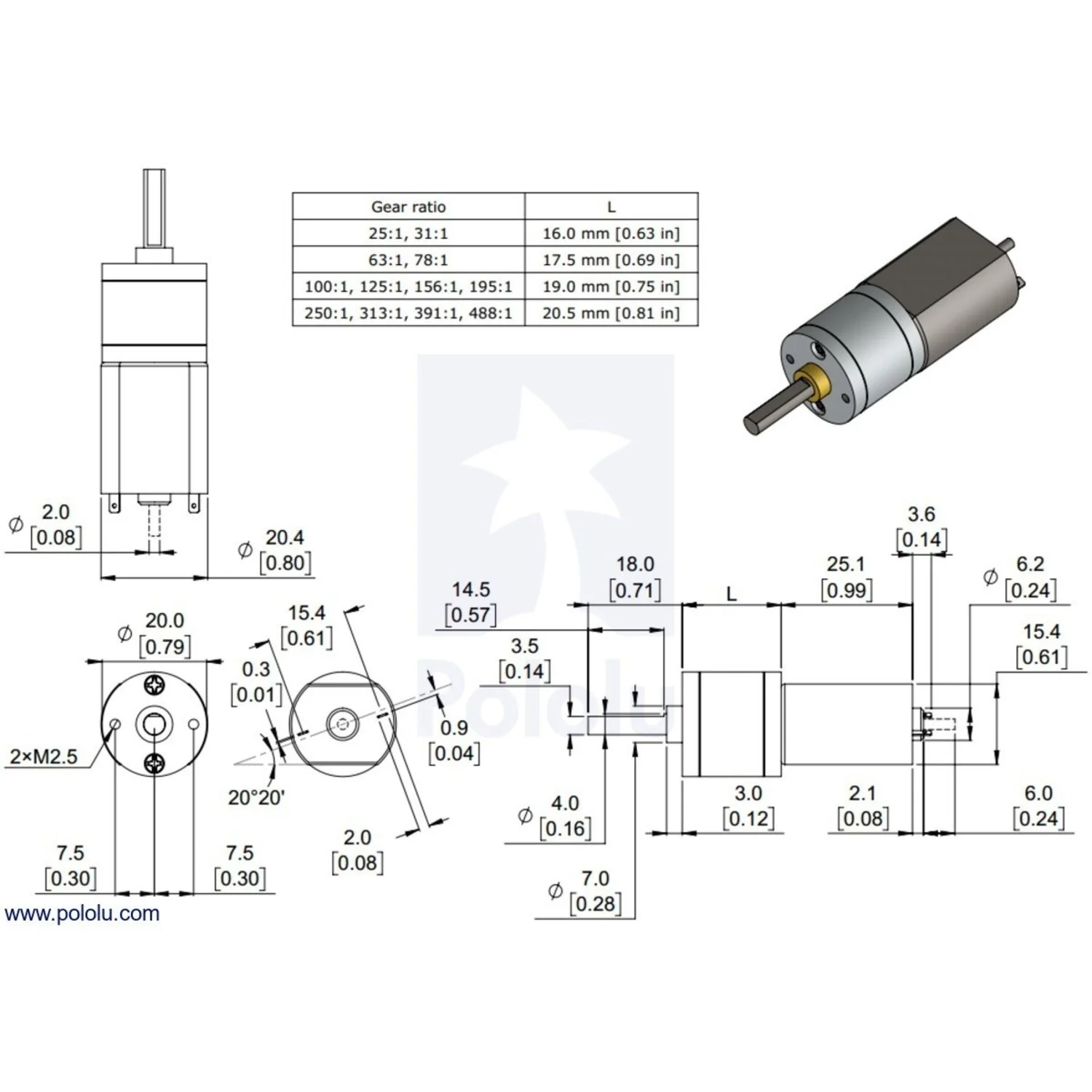

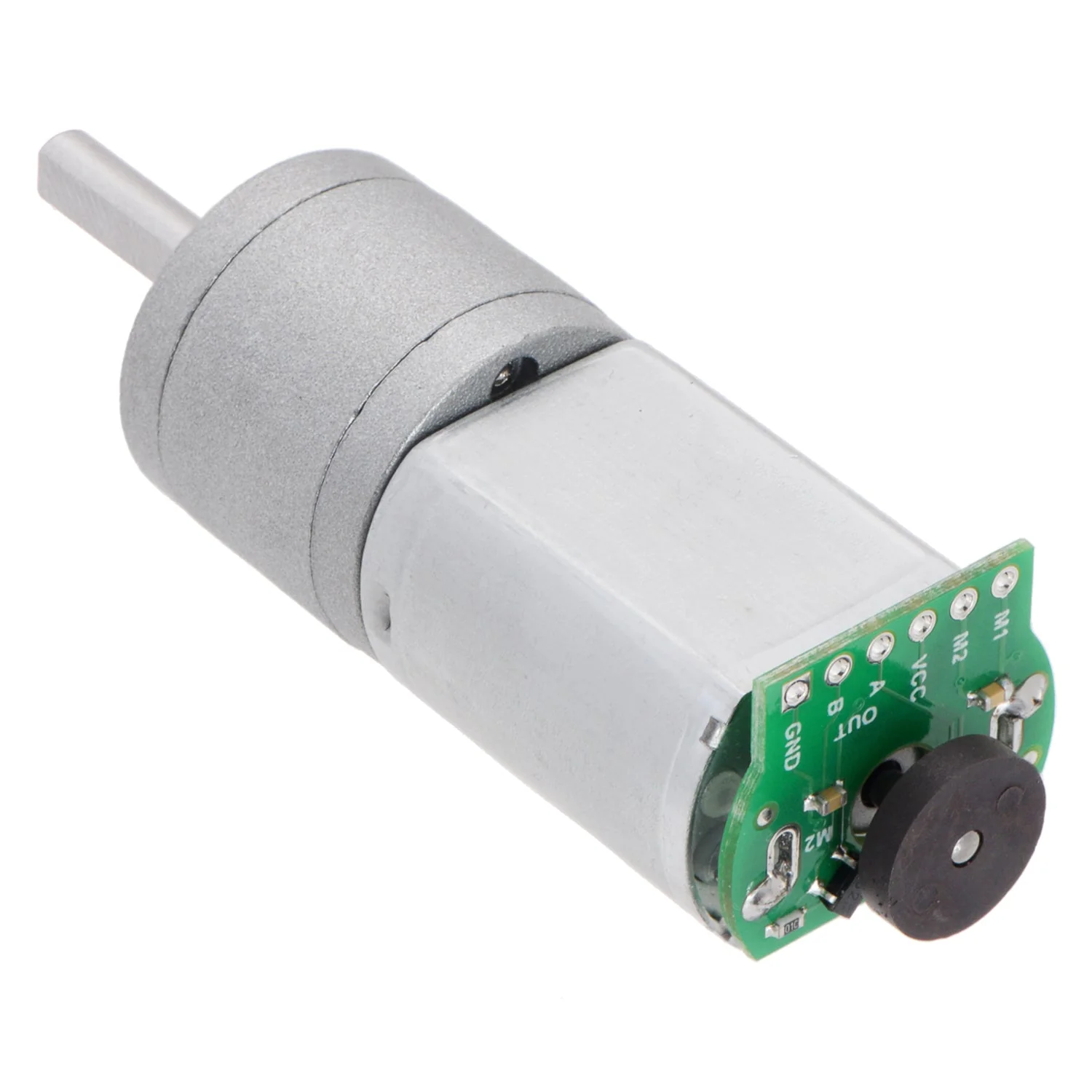

A compact 6V brushed DC gearmotor with a 25:1 metal spur gearbox, delivering strong torque in a small form factor. The cylindrical design has a 20mm diameter, and the D-shaped output shaft is 4mm in diameter extending 18mm from the gearbox face plate.

Key Features

• 25:1 Metal Gearbox – Durable metal spur gears for reliable operation
• 6V Brushed DC Motor – High power-to-size ratio
• Compact Form Factor – 20mm diameter cylindrical body
• D-Shaped Output Shaft – 4mm diameter, 18mm extension for secure mounting

Specifications

• Voltage: 6V
• Gear Ratio: 25:1
• No-Load Speed: 570 RPM
• No-Load Current: 170mA
• Stall Torque: 1.6 kg·cm (22 oz·in)
• Stall Current: 2.9A
• Diameter: 20mm
• Output Shaft: 4mm D-shaped, 18mm long

Ideal For

• Small robotics platforms
• Motorised mechanisms and actuators
• Mobile robot drive systems
• Compact motion control projects

Package Contents

• 1× 25:1 Metal Gearmotor 20Dx41L mm 6V
