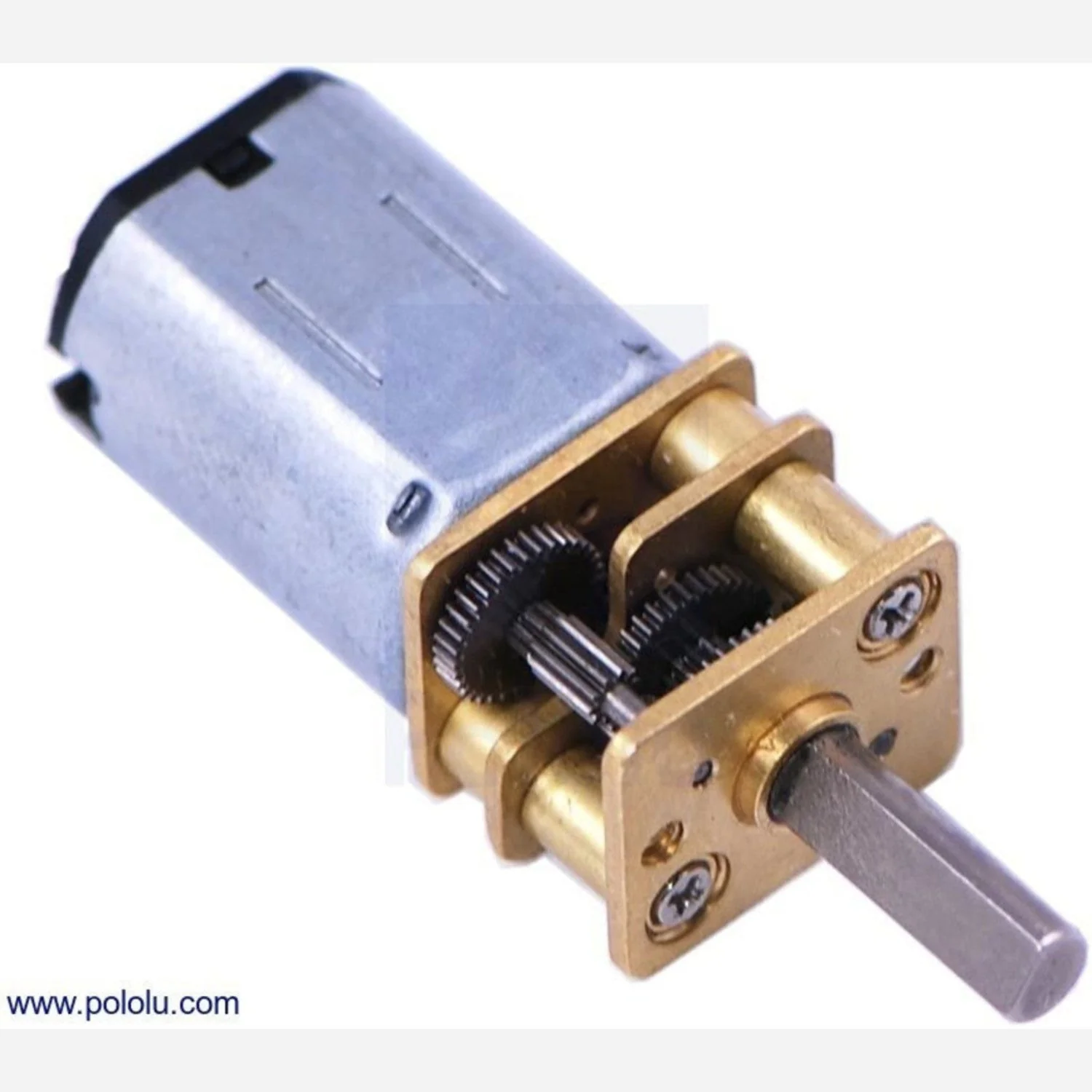

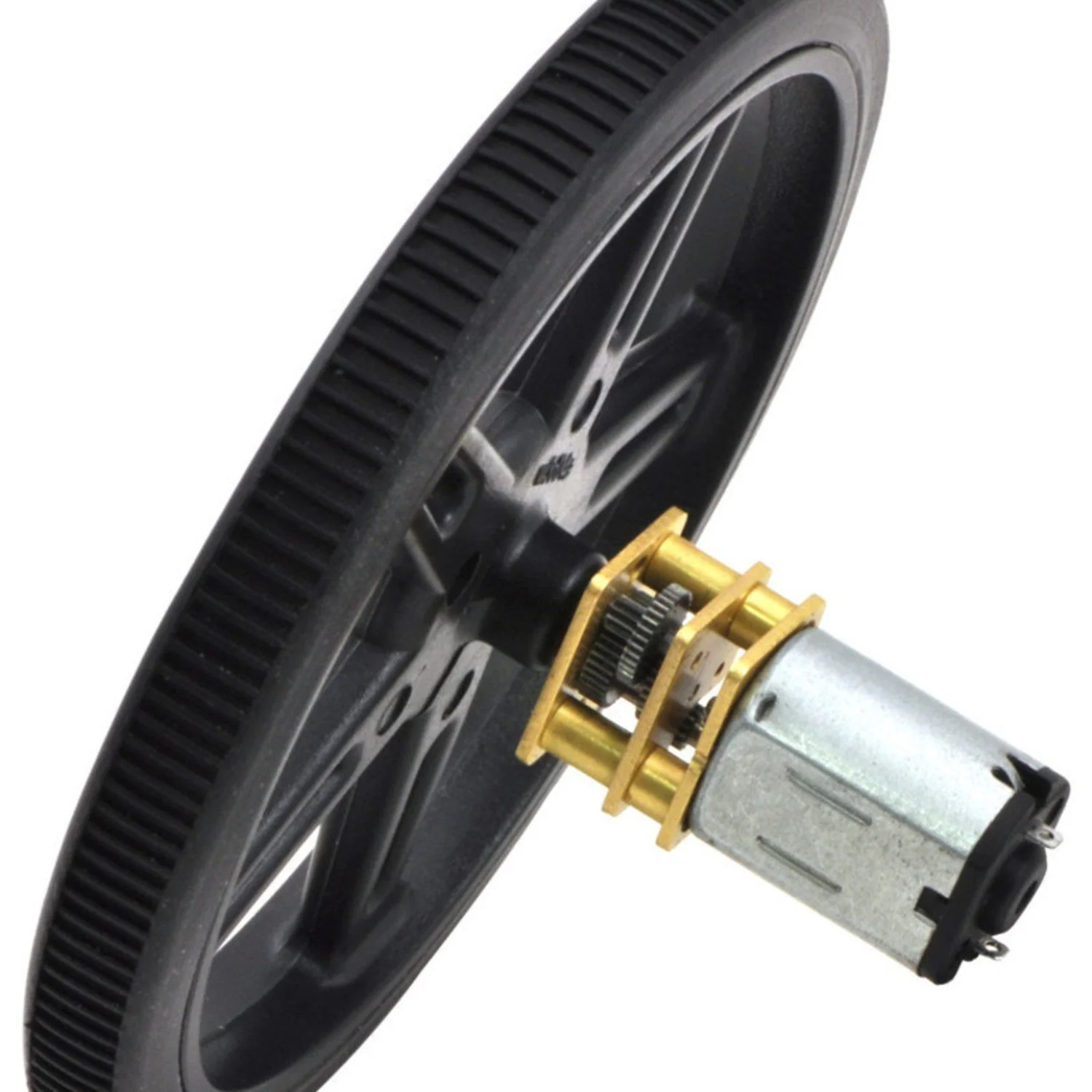

A miniature low-power 6V brushed DC gearmotor with a 297.92:1 metal gearbox. With a 10 × 12mm cross section, this micro metal gearmotor delivers useful torque in an extremely compact form factor. The D-shaped output shaft is 3mm in diameter and extends 9mm from the gearbox.

Key Features

• 297.92:1 Metal Gearbox – High gear ratio for strong torque at low speed
• Low-Power 6V Motor – Efficient operation with minimal current draw
• Ultra-Compact – 10 × 12mm cross section
• D-Shaped Output Shaft – 3mm diameter, 9mm extension

Specifications

• Voltage: 6V
• Gear Ratio: 297.92:1
• No-Load Speed: 45 RPM
• No-Load Current: 40mA
• Stall Torque: 2.0 kg·cm (28 oz·in)
• Stall Current: 0.36A
• Cross Section: 10 × 12mm
• Output Shaft: 3mm D-shaped, 9mm long

Ideal For

• Micro robotics and small mobile platforms
• Space-constrained motorised mechanisms
• Low-power drive systems
• Compact automation projects

Package Contents

• 1× 298:1 Micro Metal Gearmotor LP 6V
