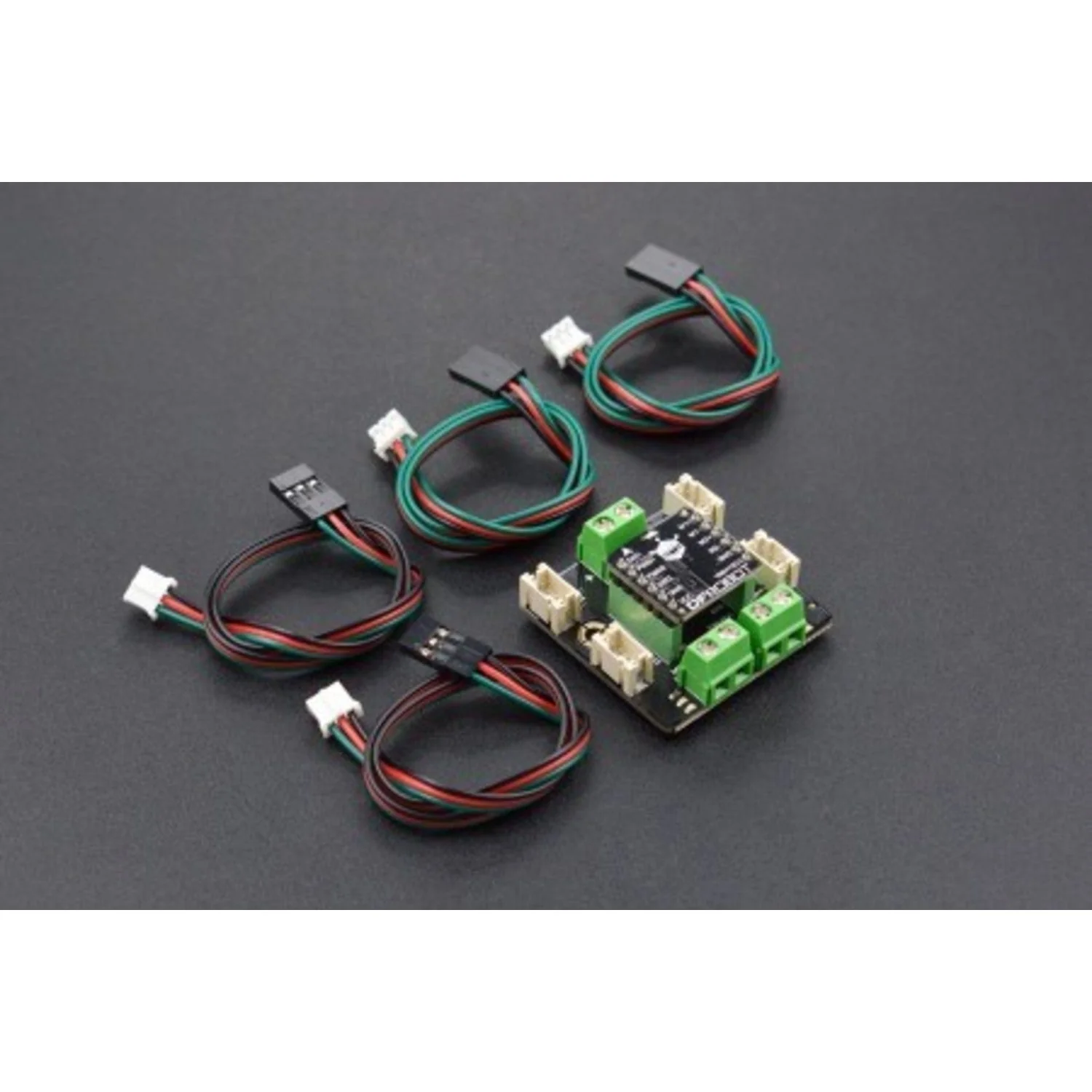

The DFRobot 2×1.2A DC Motor Driver with Gravity Connector is a compact dual-channel motor driver based on the TB6612FNG IC. This version features standard DFRobot Gravity connectors for plug-and-play wiring with Gravity-compatible expansion boards — no soldering or breadboard needed.

Each channel delivers up to 1.2 A continuous drive current with 2 A peak (continuous pulse) or 3.2 A peak (single pulse). The control logic is compatible with the DFRobot L298N motor driver, so existing code can be used directly. The TB6612FNG module can also be separated from the Gravity board for use on its own.

Key Features

• Gravity Connector – Plug-and-play wiring with DFRobot Gravity ecosystem
• Dual-Channel Full-Bridge Driver – Drive two DC motors independently
• TB6612FNG IC – Efficient driver with low on-resistance
• 1.2 A Continuous Per Channel – Up to 2 A peak (continuous pulse), 3.2 A peak (single pulse)
• 4-Wire Control – Only four wires needed to drive both motors
• L298N/Romeo Compatible – Same control logic, code can be ported directly

Specifications

• Logic Voltage (VCC) – 2.7–5.5 V
• Motor Voltage (VM) – 2.5–12 V
• Driver Channels – 2
• Continuous Current – 1.2 A per channel
• Peak Current – 2 A (continuous pulse) / 3.2 A (single pulse)
• Dimensions – 40 × 40 mm

Ideal For

• DFRobot Gravity ecosystem motor control
• Small robot builds and mobile platforms
• Arduino projects using Gravity IO expansion boards
• Quick prototyping without soldering

Resources

• DFRobot Wiki – TB6612FNG with Gravity Connector
