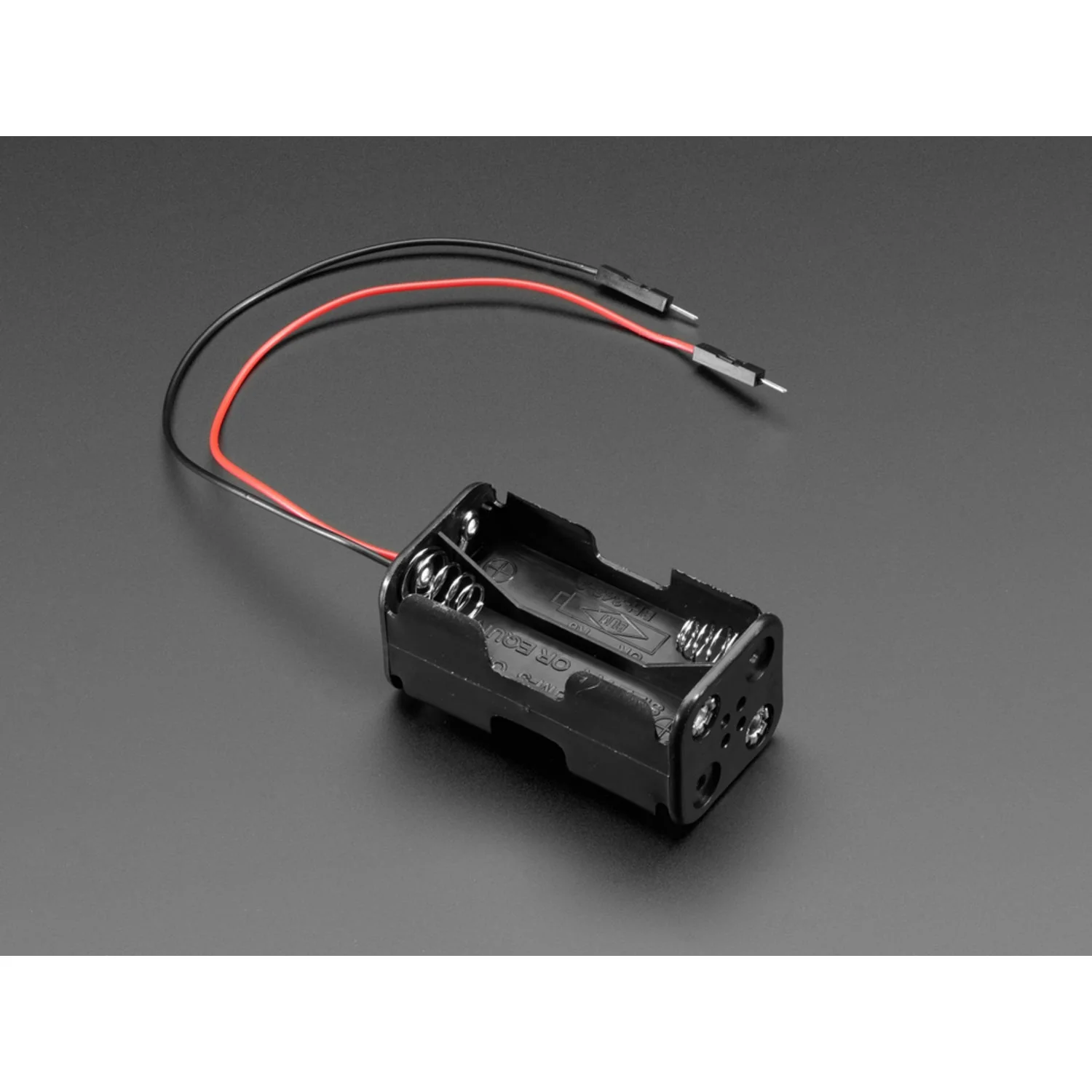

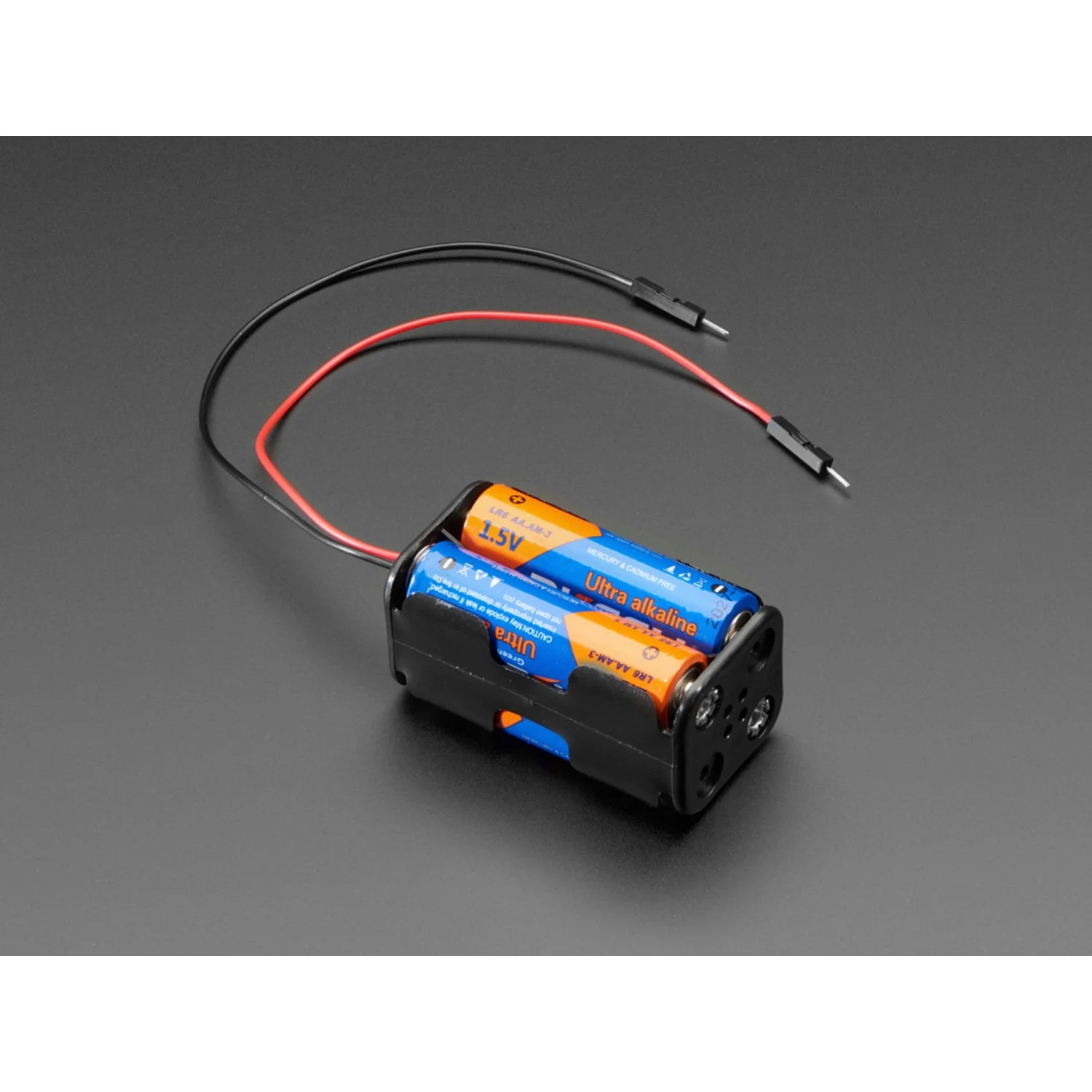

This compact 2×2 AA battery holder connects four AA batteries in series, providing a nominal 6 V DC output (alkaline) or 4.8 V DC (rechargeable NiMH). The premium jumper header wires plug directly into a breadboard — no stripping or soldering required for prototyping.

The square 2×2 configuration keeps the holder compact. Using rechargeable NiMH batteries gives approximately 5.2 V fully charged to 4.4 V discharged, making it a convenient match for 5 V projects. With alkaline batteries (6.4 V fresh), a 1N4001 diode in series can drop the voltage to approximately 5.3 V.

Key Features

• Breadboard-Ready – Premium jumper header wires plug directly into breadboards
• Compact 2×2 Layout – Four AA batteries in a square configuration
• Series Connection – Nominal 6 V (alkaline) or 4.8 V (NiMH rechargeable)
• Solderable – Wires can also be soldered to a PCB

Voltage Output

• Alkaline – 6.4 V (fresh) to 4.0 V (depleted)
• NiMH Rechargeable – 5.2 V (fully charged) to 4.4 V (discharged)

Ideal For

• Breadboard prototyping with battery power
• 5 V Arduino and microcontroller projects (with NiMH batteries)
• Portable electronics projects

Package Contents

• 1× 2×2 AA battery holder with premium jumper header wires
