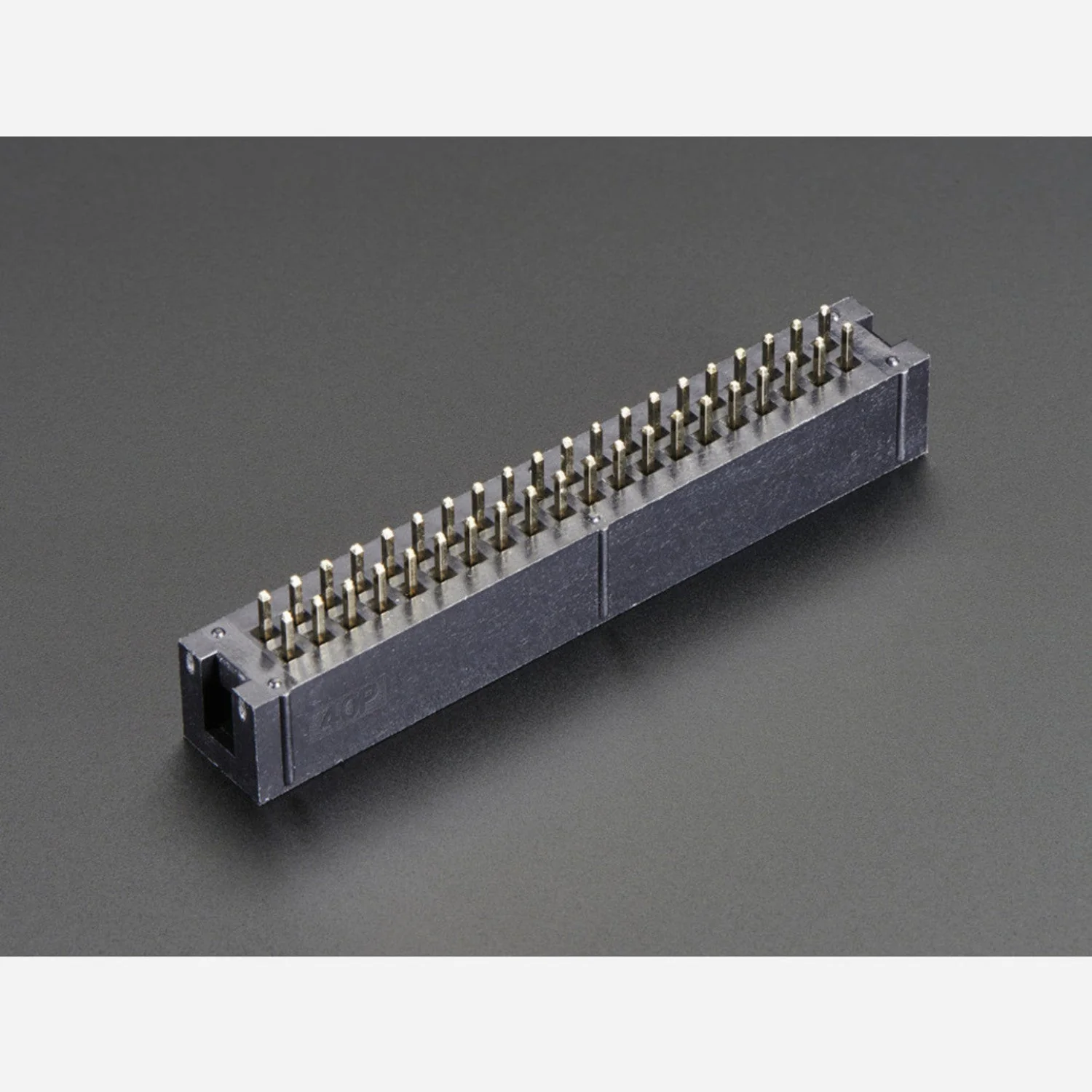

2x20 pin IDC Box Header - Raspberry Pi A+/B+/Pi 2/Pi 3
This 2×20 (40-pin) IDC box header is the matching connector for 40-pin GPIO ribbon cables used with Raspberry Pi models that have a 40-pin GPIO header. Solder it onto perfboard to create a breakout point for your Pi's GPIO, or use it in any custom PCB design.
Key Features
- 40-Pin (2×20) – Matches the Raspberry Pi 40-pin GPIO layout
- Keyed IDC Box Header – Ensures correct ribbon cable orientation
- Through-Hole Mount – Solder to perfboard or custom PCBs
- 2.54 mm Pitch – Standard 0.1″ pin spacing
Compatibility
- Raspberry Pi 5, 4, 3, 2, B+, A+
- Raspberry Pi Zero / Zero W / Zero 2 W
- Any 40-pin GPIO ribbon cable
Ideal For
- Custom GPIO breakout boards
- Connecting a Pi to perfboard via ribbon cable
- PCB designs requiring a keyed GPIO connector
Package Contents
- 1× 2×20 pin IDC box header
Warning: This header is for 40-pin Raspberry Pi models only. It is not compatible with the original Raspberry Pi Model A/B which uses a 26-pin GPIO header.
