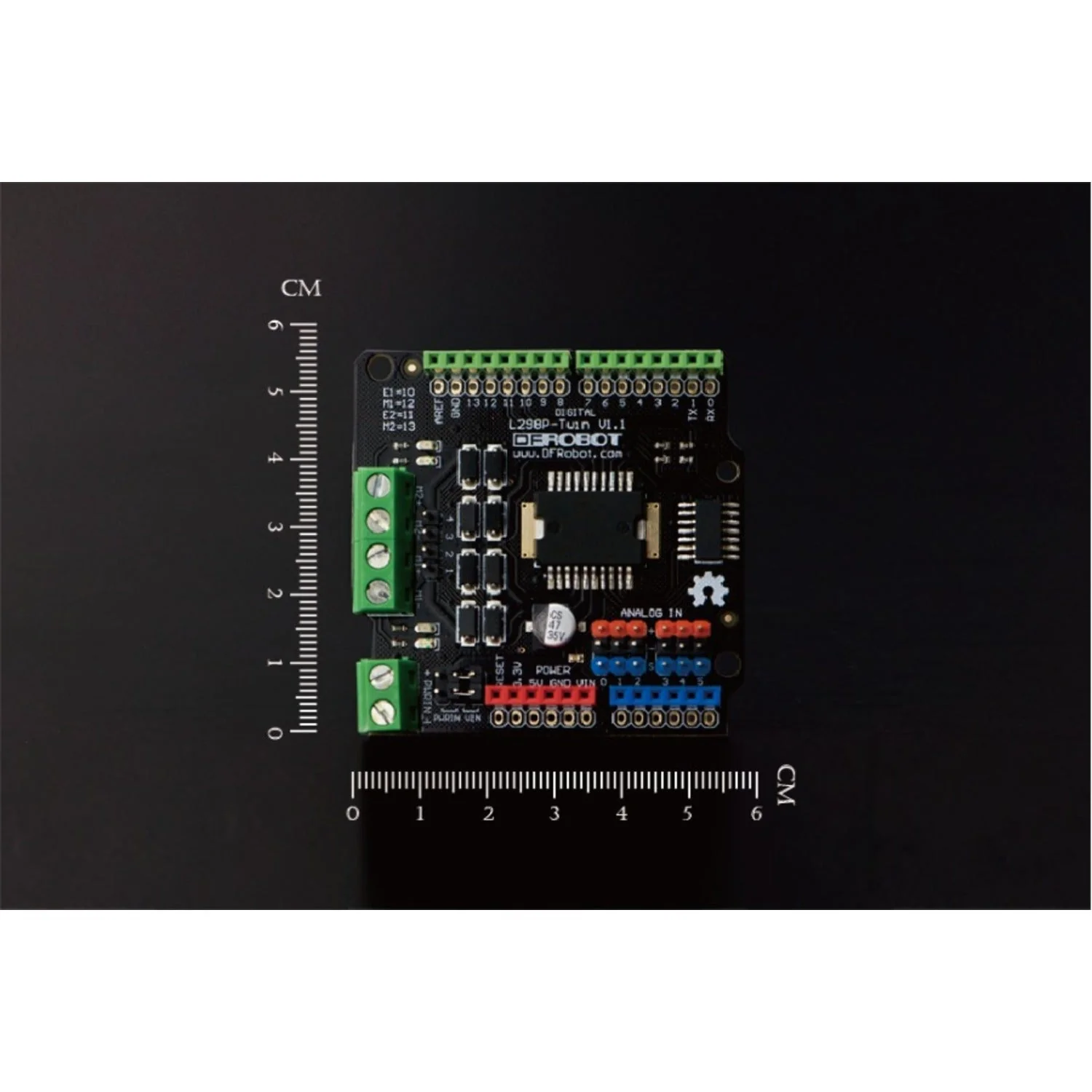

The DFRobot 2×2A Motor Shield uses the L298P dual full-bridge driver chip to control two 4.8–35 V DC motors at up to 2 A per channel. It stacks directly onto Arduino Uno and Arduino Mega boards, using PWM pins 10 and 11 for speed control and digital pins 12 and 13 for enable/disable.

The shield can be powered from Arduino's VIN or via an external power terminal. External power is strongly recommended for reliable motor operation.

Key Features

• Dual Full-Bridge Driver – L298P chip, two independent motor channels
• 2 A Per Channel – Handles higher-power DC motors
• Wide Voltage Range – Motor voltage from 4.8 V to 35 V
• PWM Speed Control – Via Arduino pins 10 and 11
• Flexible Power Input – External terminal or Arduino VIN

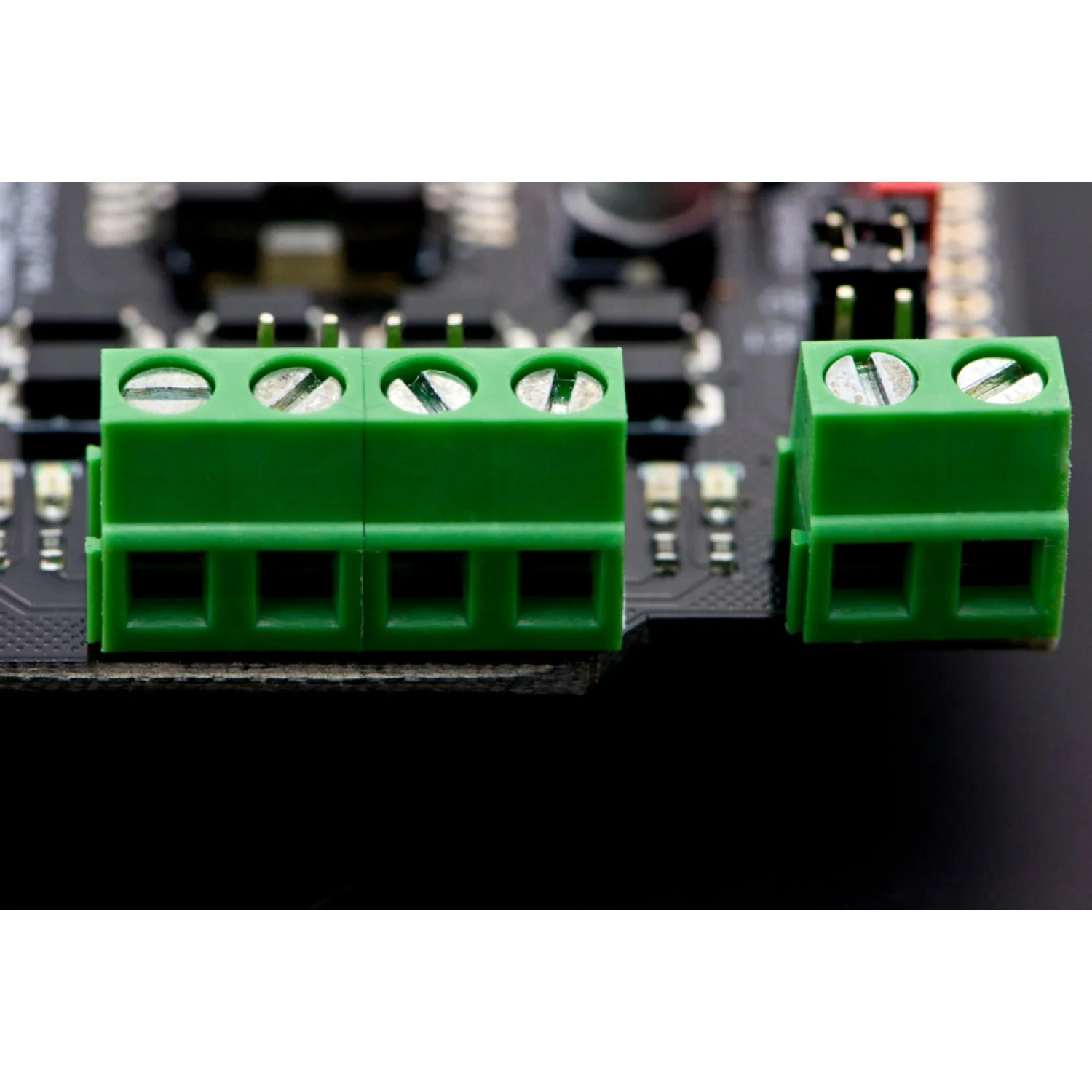

• Dual Output Options – Screw terminals or male pin headers

Specifications

• Motor Voltage – 4.8–35 V
• Output Current – Up to 2 A per channel
• Total Power Dissipation – 25 W (at 75 °C)
• Driver Type – Dual full-bridge (L298P)
• Control Pins – D10, D11 (PWM) / D12, D13 (enable)
• Operating Temperature – −25 °C to 130 °C
• Dimensions – 56 × 57 mm

Compatibility

• Arduino Uno / Uno R3
• Arduino Mega 1280/2560

Ideal For

• Mobile robot platforms
• Arduino motor control projects
• Higher-power DC motor applications

Package Contents

• 1× 2A Motor Shield for Arduino

Resources

• DFRobot Wiki – 2A Motor Shield Twin
• Schematic (PDF)
• L298 Datasheet (PDF)
