A 3.5" IPS display module with 320×480 resolution, 262K colours, and a 2-point capacitive touchscreen. The ST7796S display driver communicates over SPI while the FT6336U touch controller uses I2C, keeping wiring simple. An onboard voltage translator supports both 3.3 V and 5 V logic levels.

Compatible with Raspberry Pi, ESP32, Raspberry Pi Pico, and Arduino, with development examples and resources available through the Waveshare Wiki. A TF (microSD) card slot provides expandable storage for images and other media.

Key Features

• 3.5" IPS Panel – 320×480 resolution with wide viewing angles and 262K colours
• Capacitive Touch – FT6336U controller with 2-point touch support
• SPI Display / I2C Touch – Separate interfaces minimise pin usage
• 3.3 V / 5 V Compatible – Onboard voltage translator for broad MCU support
• TF Card Slot – Store and display images from a microSD card

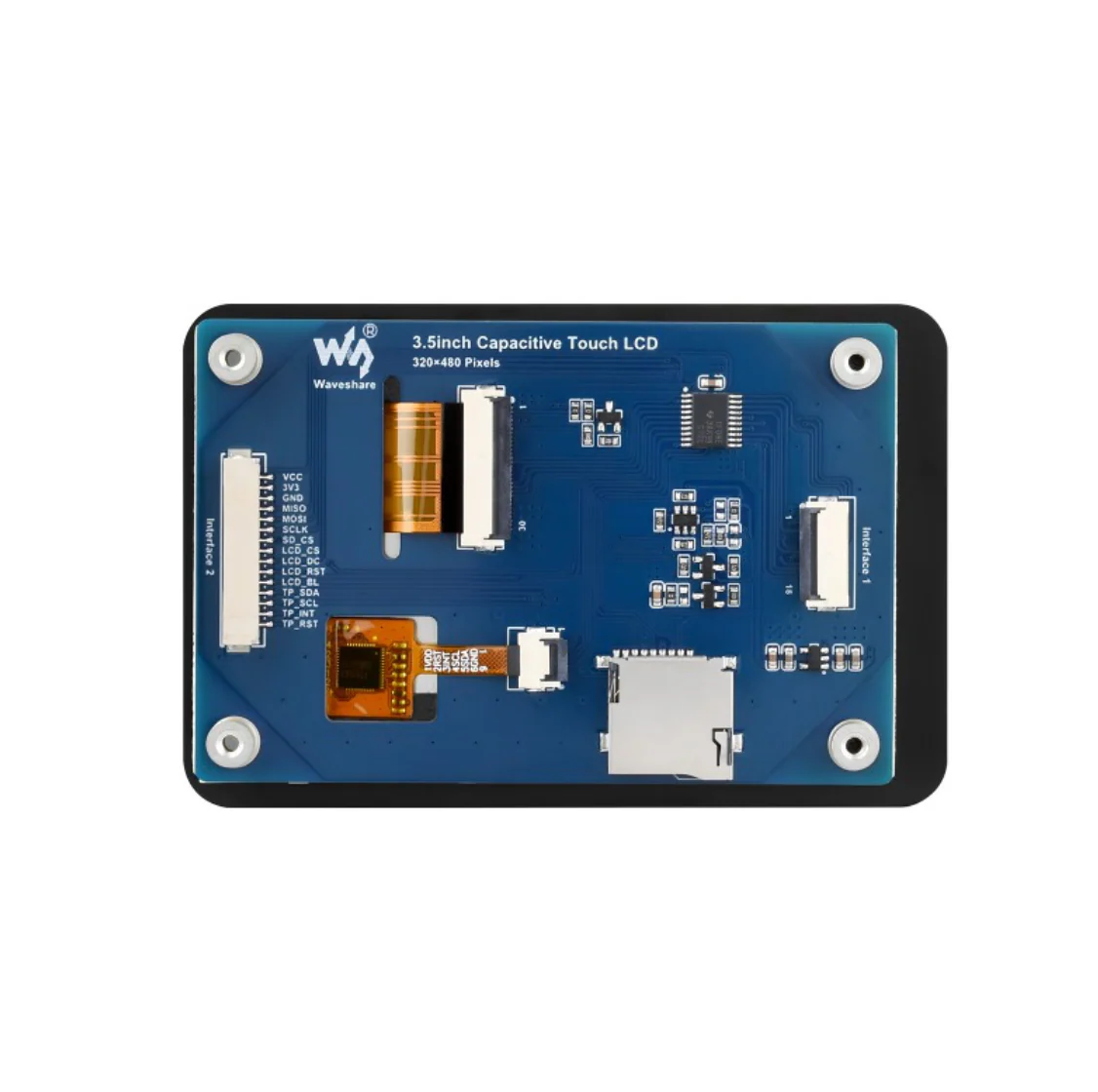

• Dual FPC Connectors – 15-pin and 18-pin FPC slots for flexible integration

Specifications

• Display Driver – ST7796S (SPI)
• Touch Driver – FT6336U (I2C)
• Resolution – 320 × 480 pixels
• Pixel Pitch – 0.051 × 0.153 mm
• Operating Voltage – 3.3 V / 5 V
• Touch Points – 2
• Display Area – 48.96 × 73.44 mm
• Module Size – 61.00 × 92.44 mm

Ideal For

• IoT dashboards and control panels
• Touch-enabled embedded interfaces
• Raspberry Pi and ESP32 display projects
• Portable GUI applications

Package Contents

• 1× 3.5" Capacitive Touch IPS LCD Module
• 1× GH1.25 15-Pin Cable
• 1× FPC Cable

Resources

• Waveshare Wiki – 3.5inch Touch LCD
