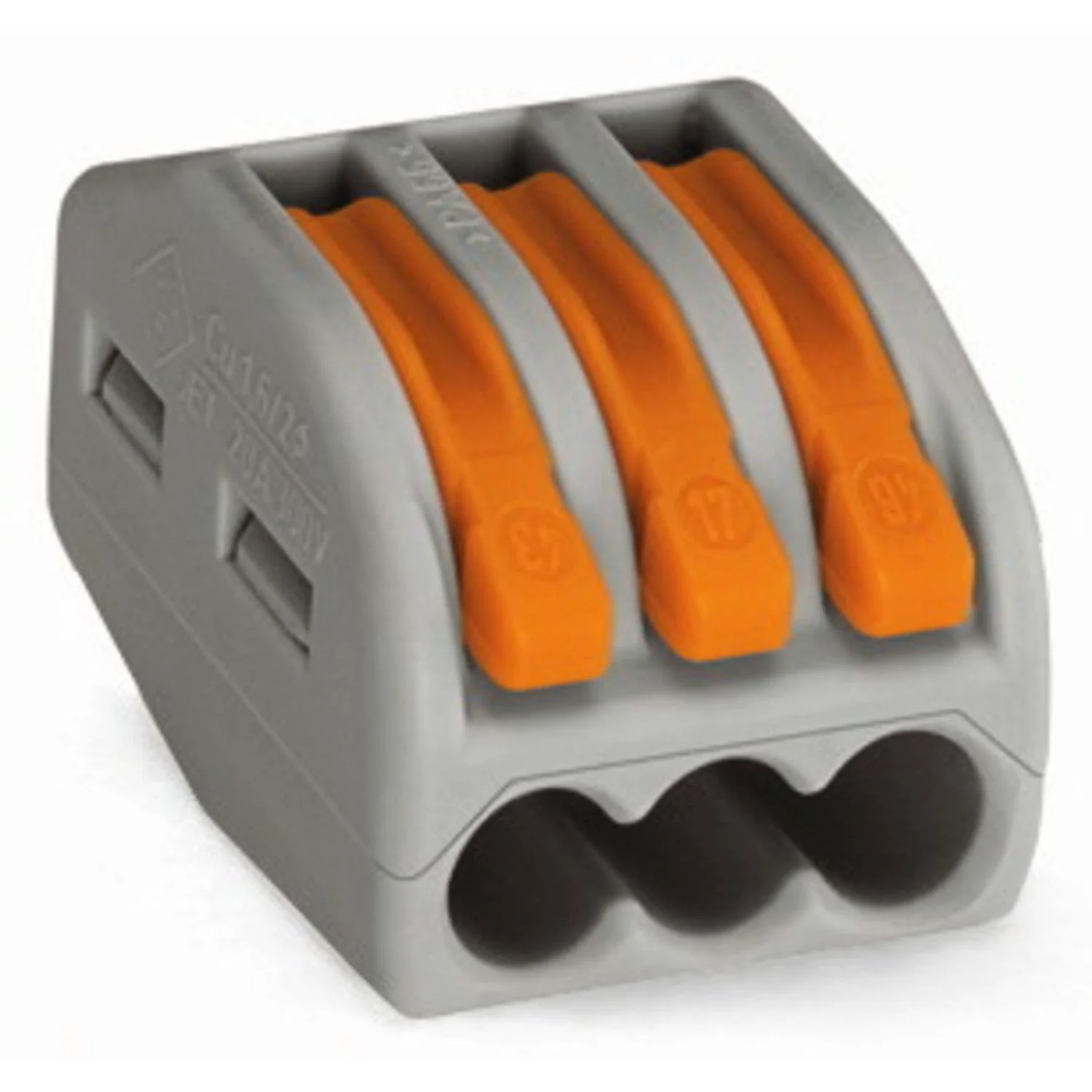

A 3-way WAGO-style lever-actuated splice terminal block for connecting solid, stranded, and fine-stranded conductors without tools. The lever mechanism allows different wire types and cross-sections to be combined in a single connector — simply lift the lever, insert the wire, and close.

Key Features

• 3-Way / 3 Ports – Connect up to three conductors
• Lever-Actuated – Tool-free wire insertion and release
• Mixed Conductor Support – Bridges different wire types and cross-sections
• 10 A DC Rated – Suitable for power distribution and signal wiring
• Compact – 20.5 × 17 × 14.5 mm

Specifications

• Connections: 3
• DC Current Rating: 10 A

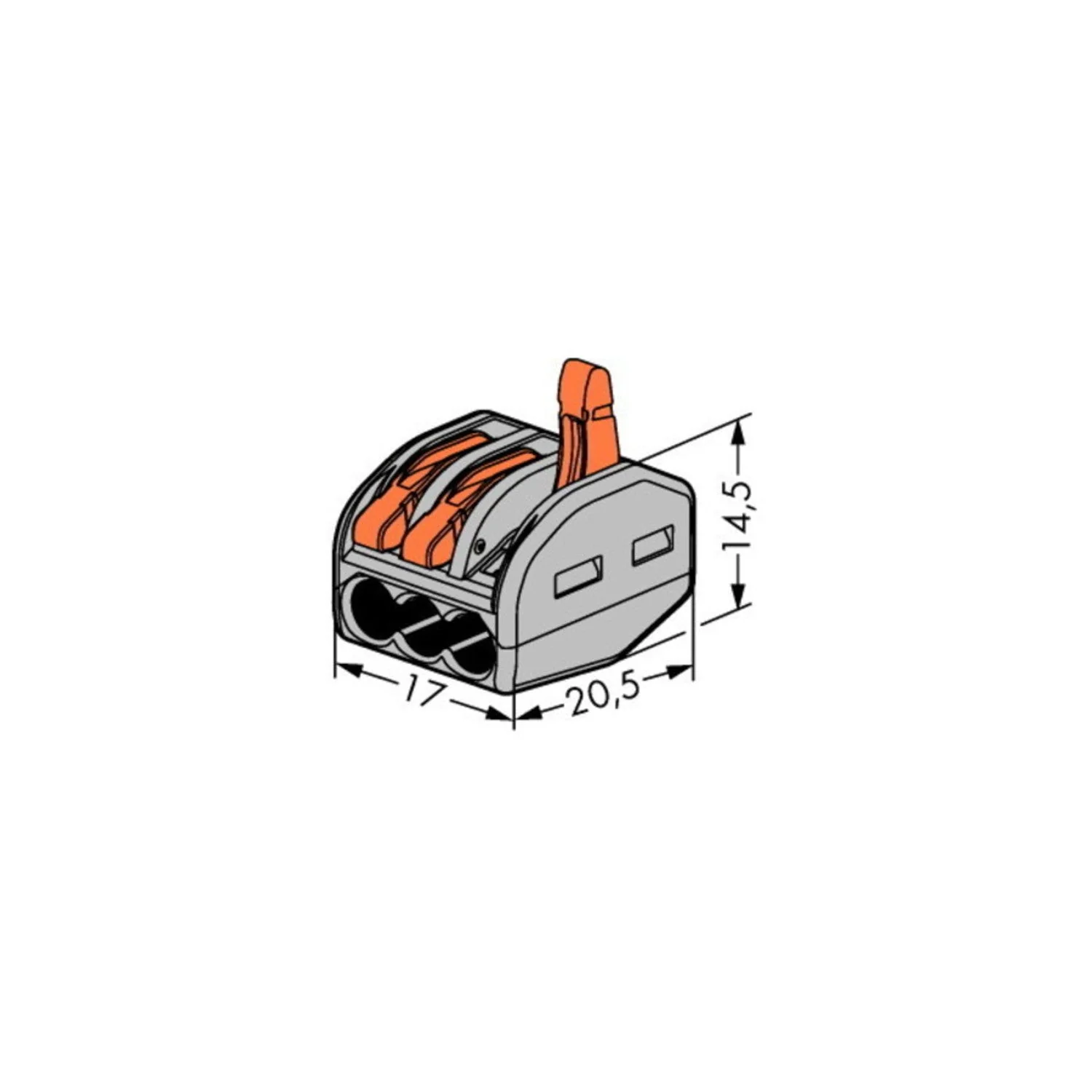

• Dimensions: 20.5 × 17 × 14.5 mm
• Colour: Light grey with orange levers

Ideal For

• Splicing and joining wires in electronics projects
• Intercom and low-voltage wiring
• Quick, reusable wire connections during prototyping

Package Contents

• 1× 3-Way WAGO Splice Terminal Block
