A 32×32 full-colour RGB LED matrix panel with 1024 individually addressable pixels at 4mm pitch. Each LED can display any colour, making this panel suitable for text, animations, and graphics. The high-brightness LEDs and wide 160° viewing angle work well for both indoor and outdoor installations.

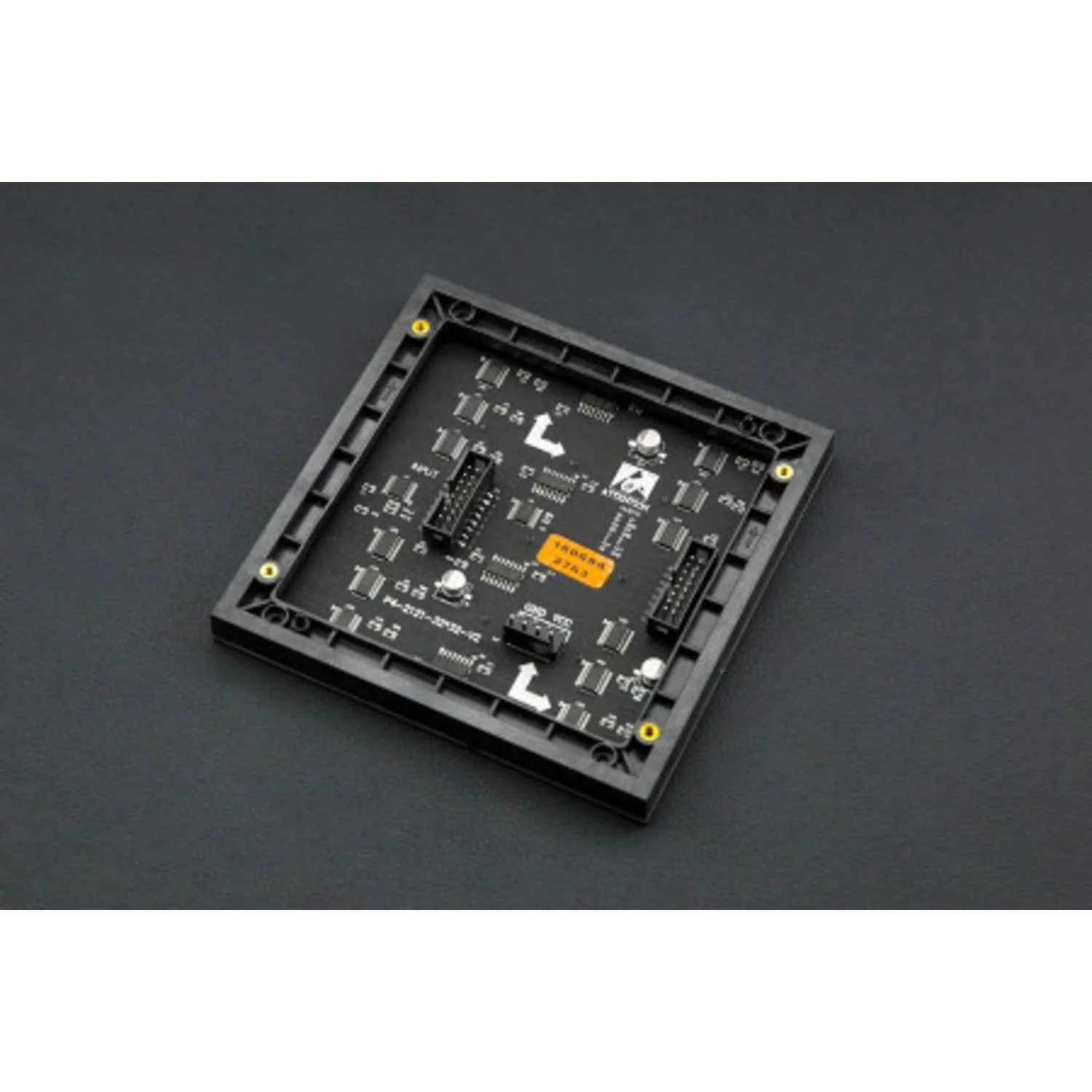

The panel features dual IDC connectors (input and output) for cascading multiple panels into larger displays. Requires at least 13 digital GPIO pins. For two or more panels, a higher-performance controller such as an Arduino Mega 2560 or Raspberry Pi is recommended.

Key Features

• 1024 Full-Colour RGB LEDs – 32×32 pixel resolution
• 4mm Pixel Pitch – Compact spacing for detailed displays
• Chainable – IDC input/output connectors for cascading panels
• Wide Viewing Angle – ≥160°
• High Brightness – ≥1200 cd/m² white balance
• Long Service Life – 75,000–100,000 hours

Specifications

• Resolution – 32 × 32 pixels (1024 total)
• Pixel Pitch – 4mm
• Operating Voltage – 5V DC
• Power Requirement – 5V @ 3A per panel
• Drive Mode – 1/16 scan rate
• Refresh Rate – ≥300Hz
• Viewing Angle – ≥160°
• Dimensions – 128 × 128 × 11mm
• Digital Pins Required – 13 minimum
• MTTF – ≥5000 hours

Ideal For

• LED video walls and signage projects
• Arduino and Raspberry Pi display projects
• Animations, graphics, and text displays

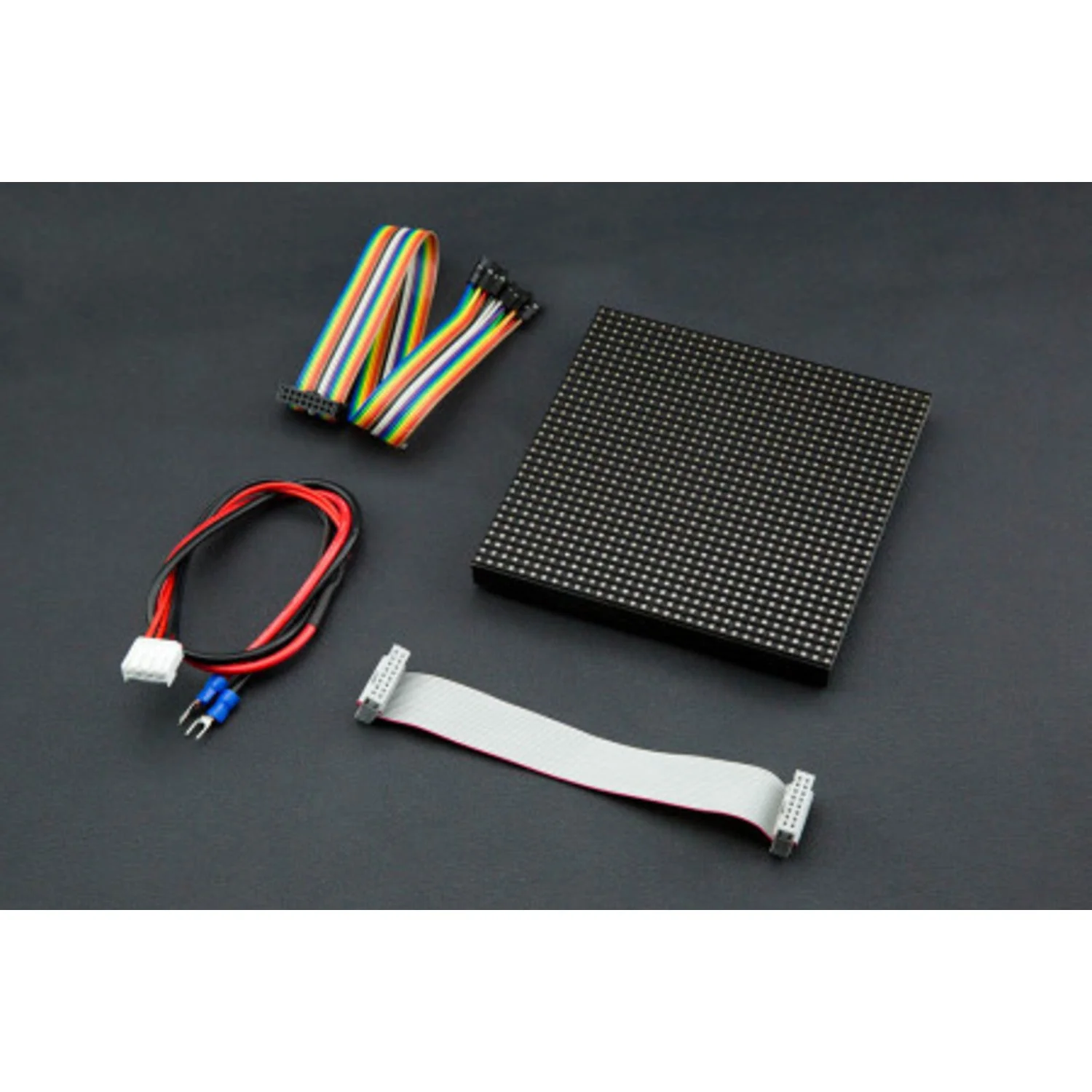

Package Contents

• 1× 32×32 RGB LED Matrix Panel (4mm pitch)

Resources

• DFRobot Wiki
