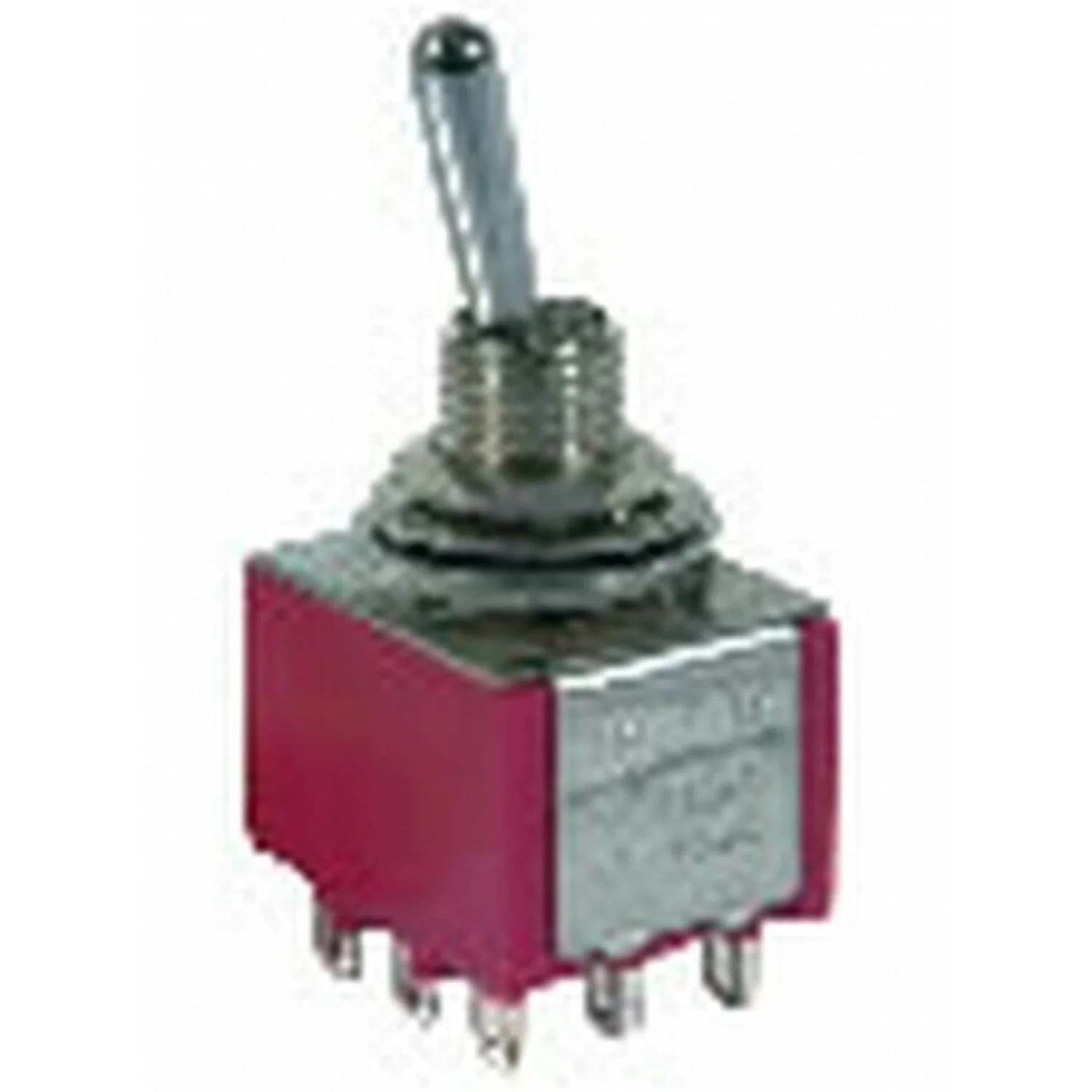

A miniature 3PDT (3-pole, double-throw) toggle switch for panel-mount applications. With three independent switching circuits, this switch can control multiple signals simultaneously — commonly used in guitar effect pedal true-bypass wiring, signal routing, and electronics projects.

Specifications

• Switch Type – Toggle (ON-ON)
• Configuration – 3PDT (3-pole, double-throw)
• DC Rating – 28V / 5A
• AC Rating – 250V / 2A
• Actuator Length – 16.51 mm
• Actuator Width – 12.7 mm
• Cycle Life – 40,000 cycles
• Insulation Resistance – 1000 MΩ
• Dielectric Strength – 1000V
• Mounting – Behind panel

Ideal For

• Guitar effect pedal true-bypass switching
• Signal routing and selector circuits
• Electronics projects requiring multi-pole switching

Package Contents

• 1× 3PDT mini toggle switch
