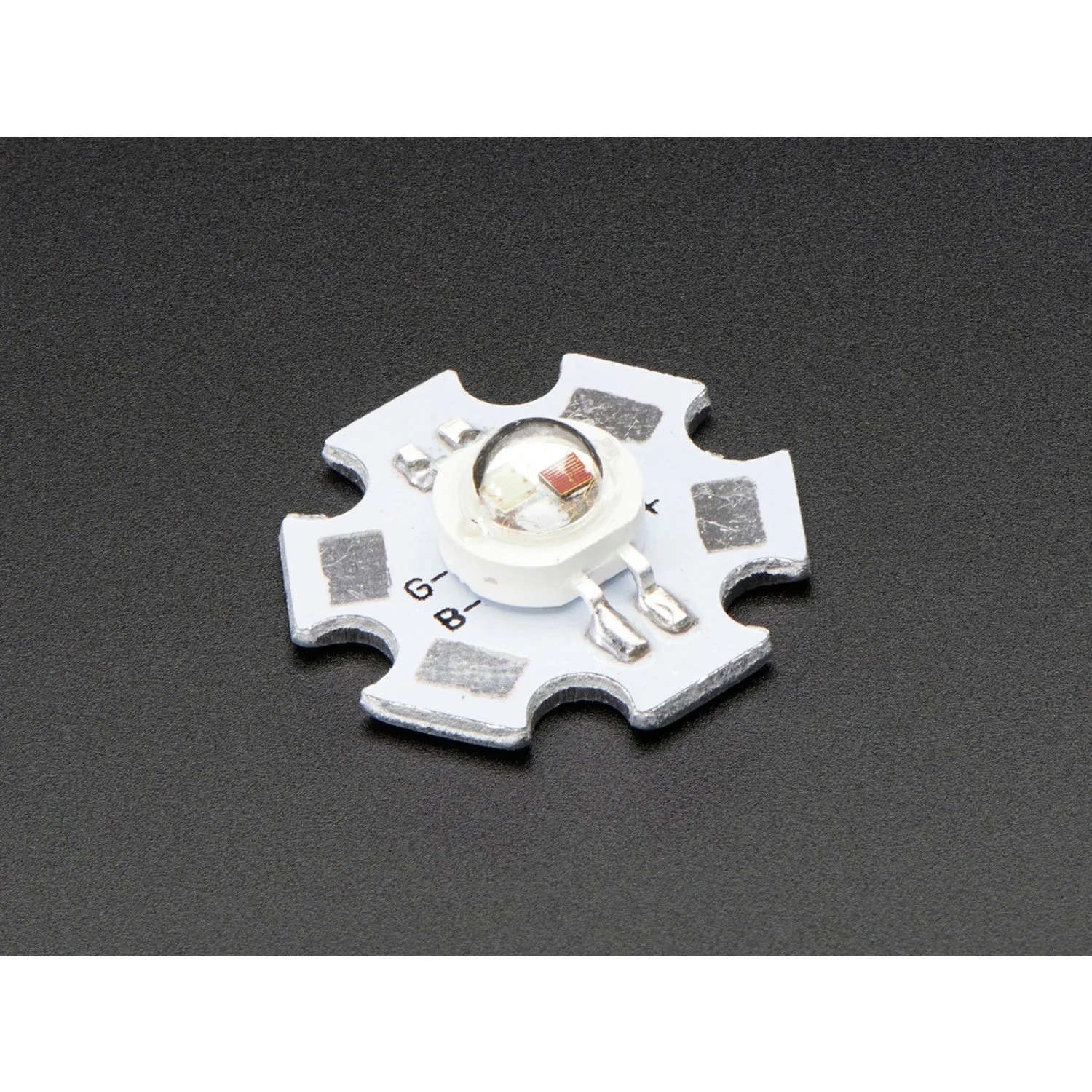

This high-power RGB LED from Adafruit delivers serious brightness, with each red, green, and blue die capable of handling 350–750mA continuous current (2A peak). At 3W it produces approximately 150 lumens, scaling up to around 300 lumens at the full 9W.

The LED comes pre-mounted on an aluminium PCB that serves as both a mounting base and partial heatsink. This is a common-anode configuration, so all three colour channels share a single positive connection.

Key Features

• High Power Output – 3W to 9W operation with up to ~300 lumens
• Full RGB Colour Mixing – Independent red, green, and blue dies for millions of colours
• Common Anode – Shared positive connection for all three channels
• Aluminium PCB Mount – Pre-mounted on a metal-core PCB for heat dissipation
• High Current Capacity – 350–750mA continuous per channel, 2A peak

Specifications

• Power – 3W (at ~350mA/channel) to 9W (at ~750mA/channel)
• Luminous Output – ~150 lumens at 3W, ~300 lumens at 9W
• Configuration – Common anode
• Current per Channel – 350–750mA continuous, 2A peak
• Mounting – Aluminium PCB

Ideal For

• High-brightness RGB lighting projects
• Stage and effects lighting
• Colour-mixing experiments
• Custom lamp and fixture builds

Package Contents

• 1× 3W–9W RGB LED on aluminium PCB
