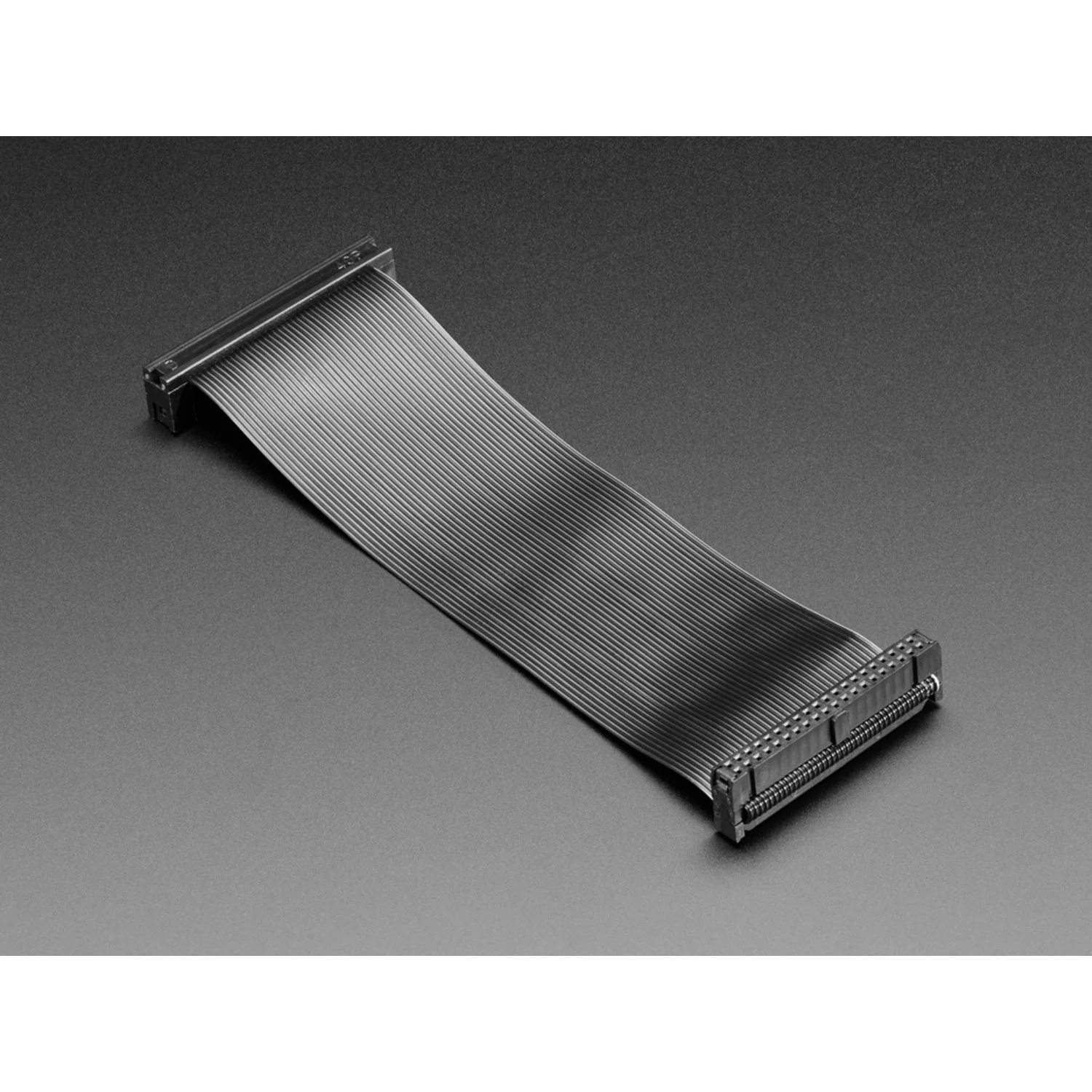

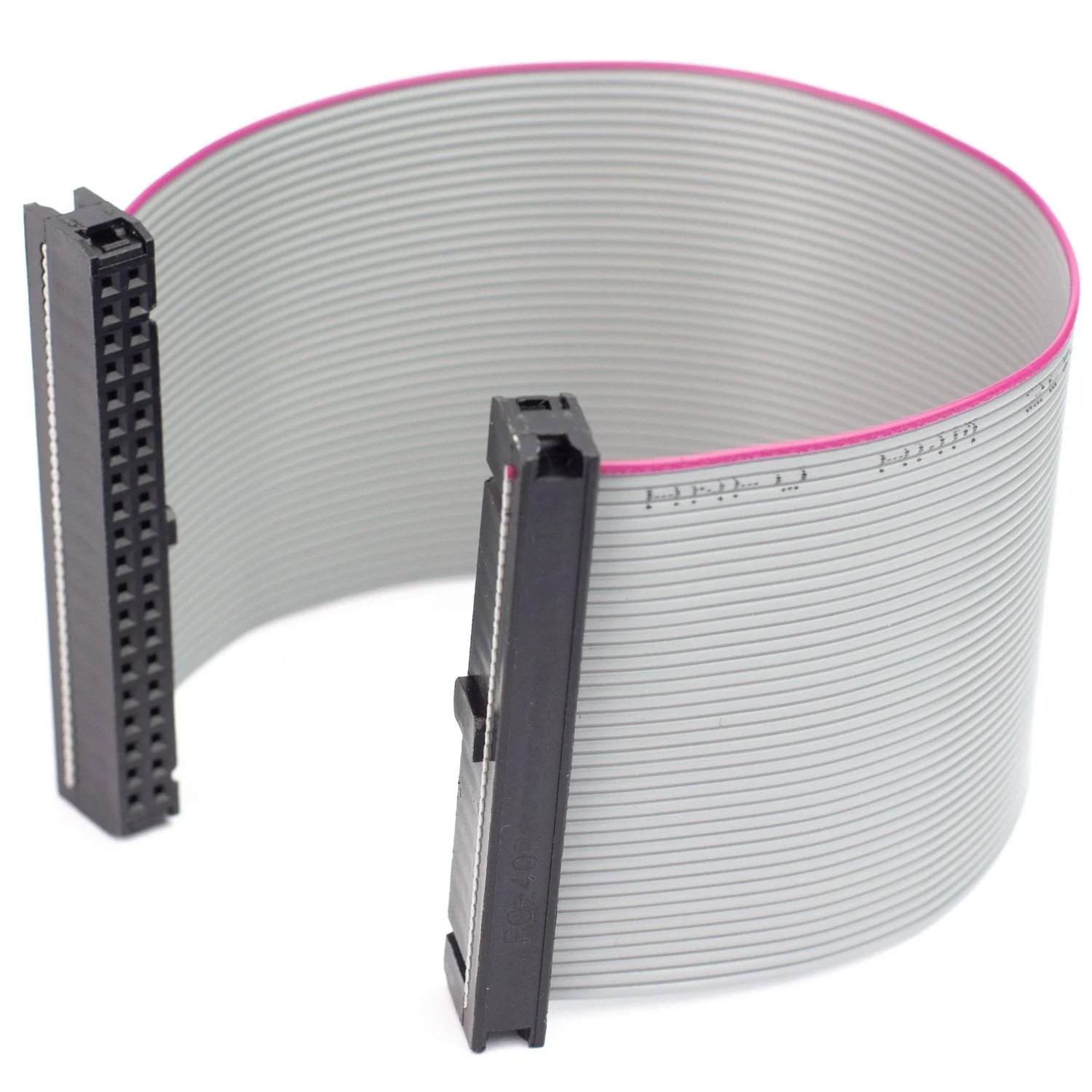

A 175mm grey GPIO ribbon cable for Raspberry Pi, with 40-pin female IDC connectors on both ends. Bridges your Pi's GPIO header out to a breakout board, breadboard adapter, or custom PCB. Pin 1 is marked with a white/pink wire for correct orientation.

Key Features

• Female-to-Female – 2×20 IDC socket connectors on both ends
• 175mm Length – Sufficient reach for breakout boards and adapters
• Pin 1 Indicator – White/pink wire marks Pin 1 for correct alignment
• Grey Ribbon – Neutral colour suits most builds

Specifications

• Connector – 2×20 (40-pin) IDC female
• Pitch – 2.54mm (0.1″)
• Cable Length – 175mm
• Ends – Female socket on both ends

Compatibility

• Any Raspberry Pi with a 40-pin GPIO header (A+, B+, 2, 3, 4, 5, Zero, 400)

Ideal For

• Connecting to GPIO breakout boards
• Bridging GPIO to custom PCBs
• Prototyping with breadboard adapters

Package Contents

• 1× 40-Pin GPIO Ribbon Cable (175mm, grey)
