4Drawing - Interactive Electronics Frame

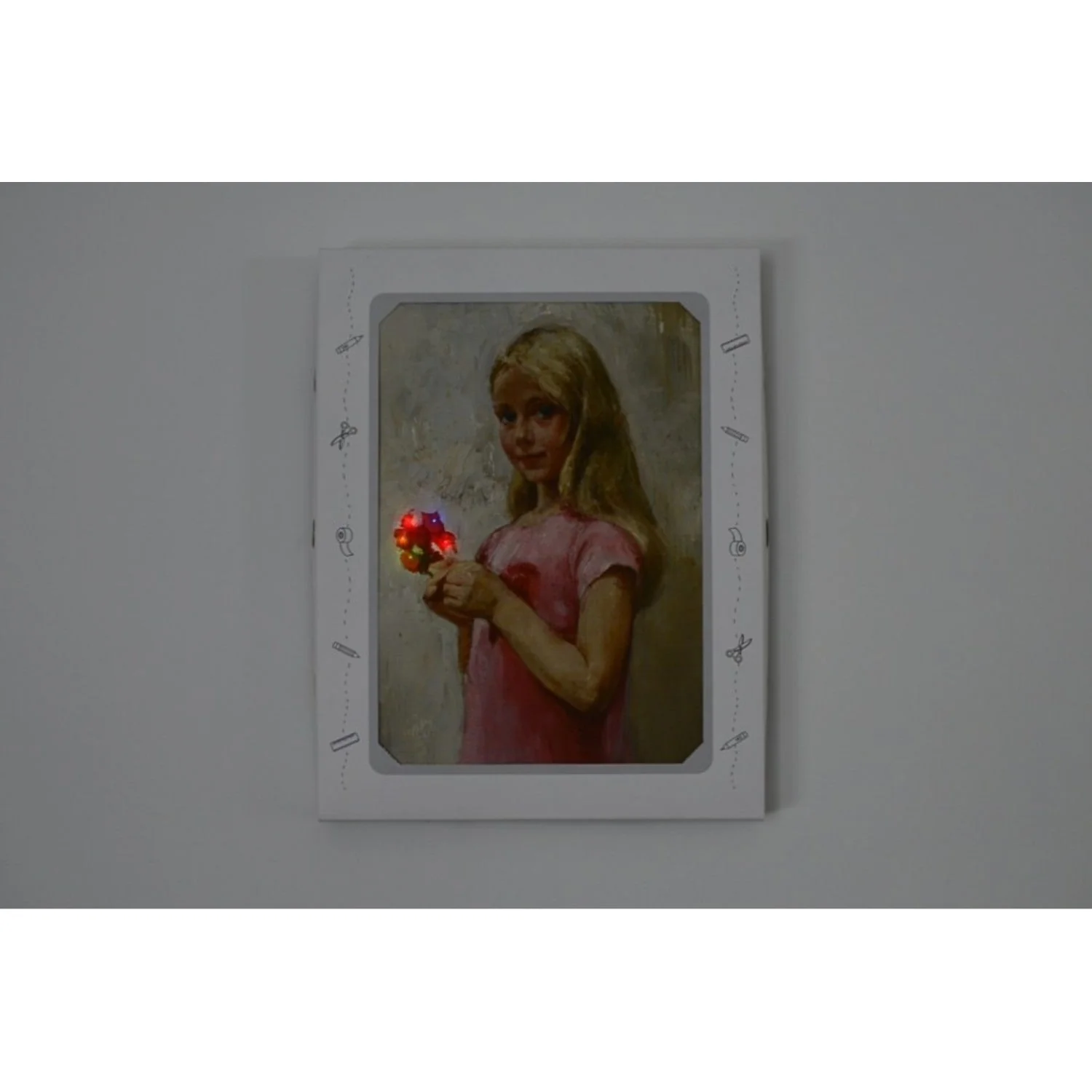

The 4Drawing Interactive Electronics Frame is a creative DIY kit that combines electronics, art, and coding. Place your artwork on the A4-sized canvas, connect sensors and LEDs using simple wiring, and bring your paintings to life with light, sound, and interactivity. It's designed for kids, artists, tinkerers, and interactive designers.
The included Palette controller board is based on the ATmega32u4 (LilyPad Arduino compatible) and features low-power design with automatic module shutdown and sensor-triggered wake-up. Three coding modes — plug-and-play, graphical (Ardublock), and freestyle Arduino programming — cater to all skill levels.
Key Features
- Interactive Art Frame – Bring drawings to life with light, sound, and sensors
- Arduino Compatible – Palette controller based on ATmega32u4 (LilyPad Arduino type)
- Three Coding Modes – Plug-and-play, Ardublock graphical, and freestyle Arduino programming
- Multiple LED Channels – 4× 40 mA I/O channels (Zone Z) and 4× 500 mA output channels (Zone X)
- Sensor & Actuator Expansion – 4× 3-pin sensor/actuator ports (Zone S), UART, and I2C interfaces
- Sensor Wake-Up – Dedicated wake-up channel (Zone W) for low-power interactive applications
- Low Power Design – Up to 30 days standby on AA batteries with automatic module shutdown
- DIP Prototyping Area – Add extra ICs for custom functionality
- Compatible with Arduino Sensors – Works with most standard Arduino sensors and actuators
Palette Controller Specifications
- MCU: ATmega32u4
- Working Voltage: 3–5V
- Digital I/O: 16 (40 mA)
- PWM Outputs: 4
- Analogue Inputs: 3
- Interfaces: 1× UART, 1× I2C, 1× USB
- Flash Memory: 32 KB (4 KB bootloader)
- SRAM: 2.5 KB
- EEPROM: 1 KB
- Clock Speed: 8 MHz
- Controller Size: 65.5 × 44 × 11.8 mm
Frame Specifications
- Frame Dimensions: 352 × 274 × 30 mm
- Canvas Size: A4 (210 × 297 mm)
- Frame Material: Paperboard and corrugated paperboard
- Battery Life: Up to 30 days on AA batteries (standby mode)
Ideal For
- Kids learning about circuits and coding
- Interactive art projects and installations
- STEAM education and classroom activities
- Makers and tinkerers exploring creative electronics
Package Contents
- 1× 4Drawing Interactive Electronics Frame Kit
