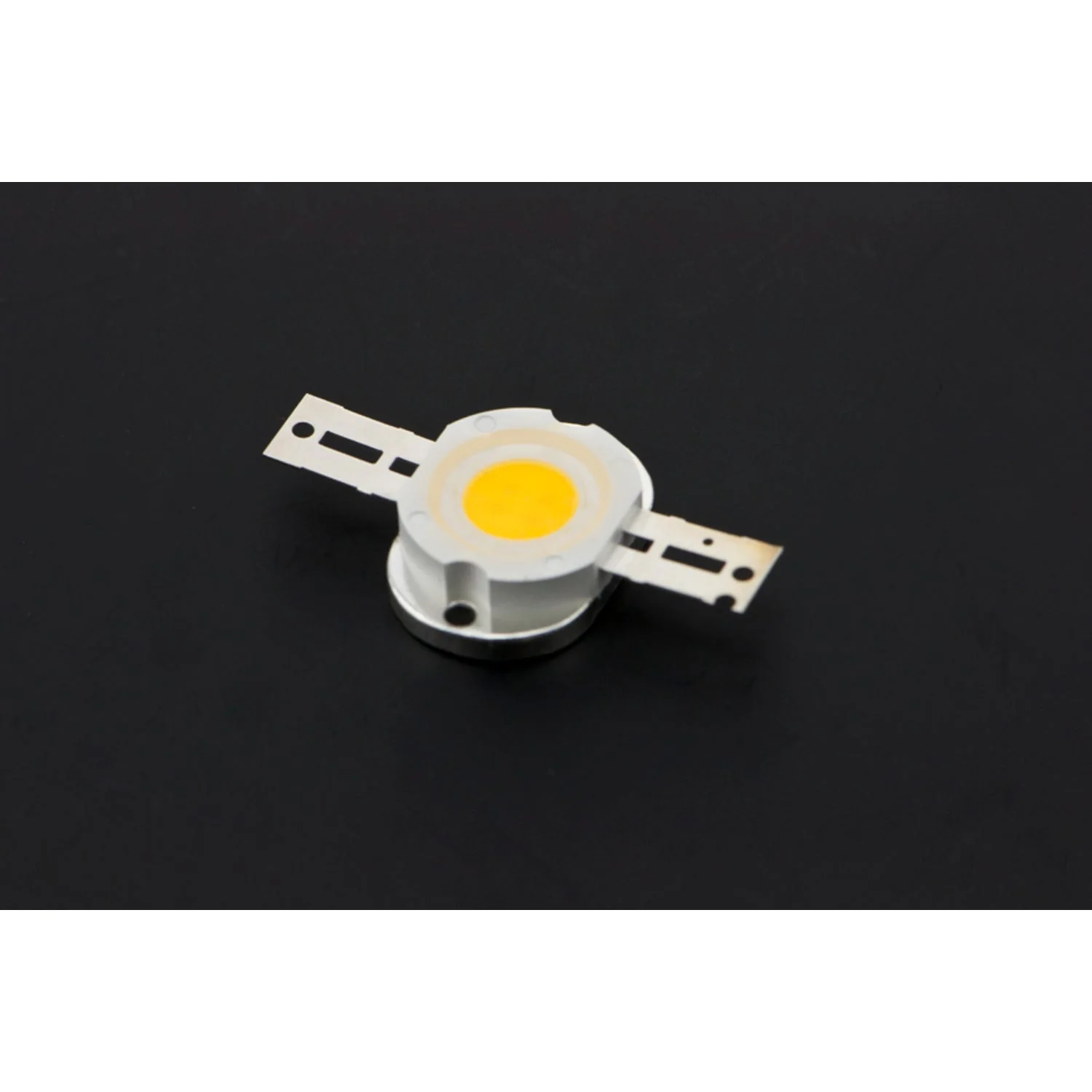

5.5W High Bright LED - Warm White

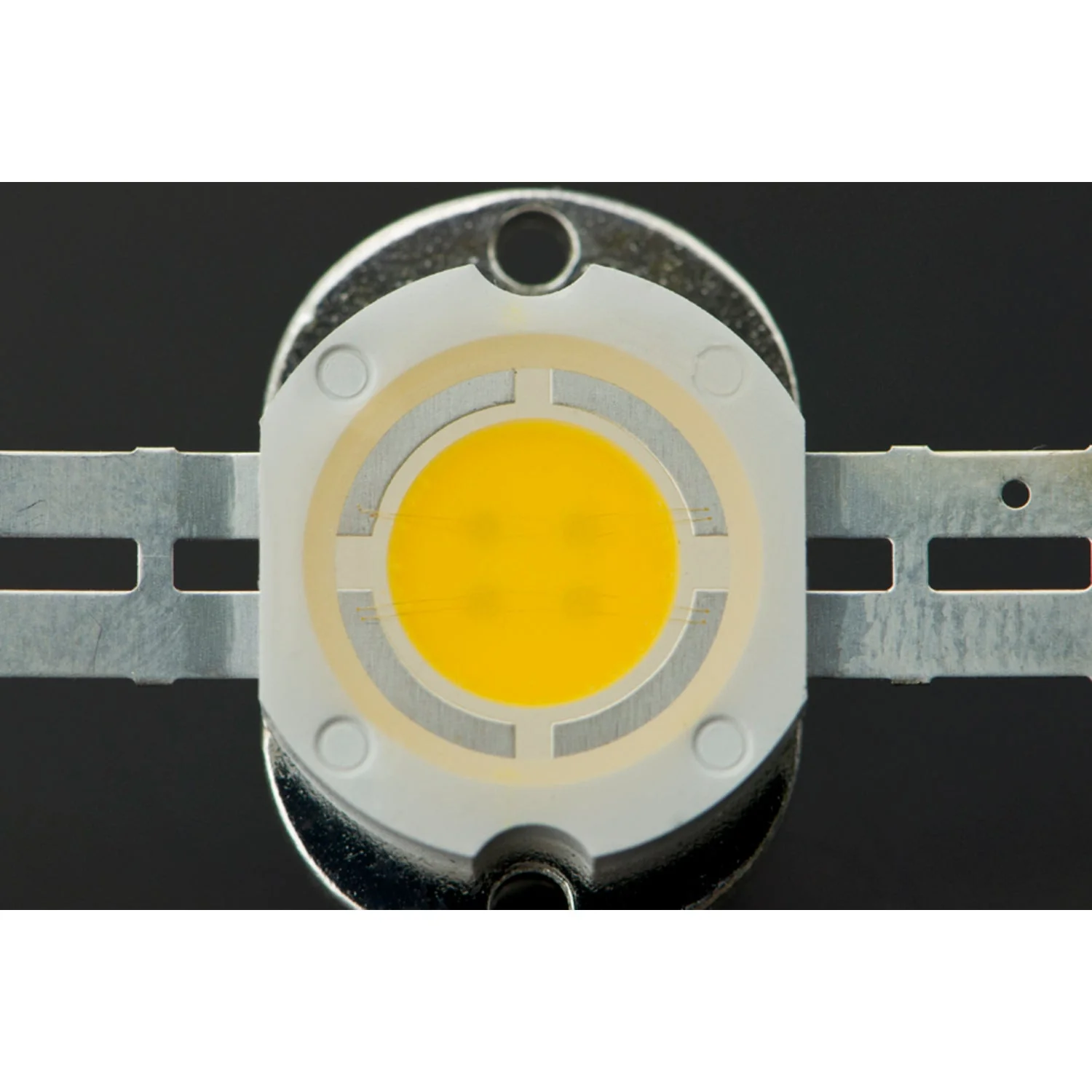

A 5.5W high-brightness LED module in warm white (3000–4000K), consisting of four separate LED chips on a single board. Delivers 200–250 lumens with a 120° beam angle, making it suitable for robot searchlights, illumination projects, and high-power LED experiments.
Key Features
- 5.5W Output – 200–250 lumens from four LED chips
- Warm White – 3000–4000K colour temperature
- 120° Beam Angle – Wide illumination coverage
- Dual Voltage Operation – 4.5–5V without heatsink, 6.5–7V with heatsink
Specifications
- Rated Power – 5.5 W
- Luminance – 200–250 lm
- Working Voltage – 6.5–7 V (with heatsink) / 4.5–5 V (without heatsink)
- Rated Current – 700 mA
- Colour Temperature – 3000–4000 K (warm white)
- Beam Angle – 120°
- Operating Temperature – −20 to 60°C
- Dimensions – 38 × 23 mm
- Weight – 10 g
Ideal For
- Robot searchlights and headlamps
- DIY lighting projects
- High-power LED experiments
Package Contents
- 1× 5.5W High Bright LED (Warm White)
Warning: At full power this LED gets very hot. A heatsink is strongly recommended when operating at 6.5–7V. Without a heatsink, limit the supply to 4.5–5V to avoid thermal damage.
