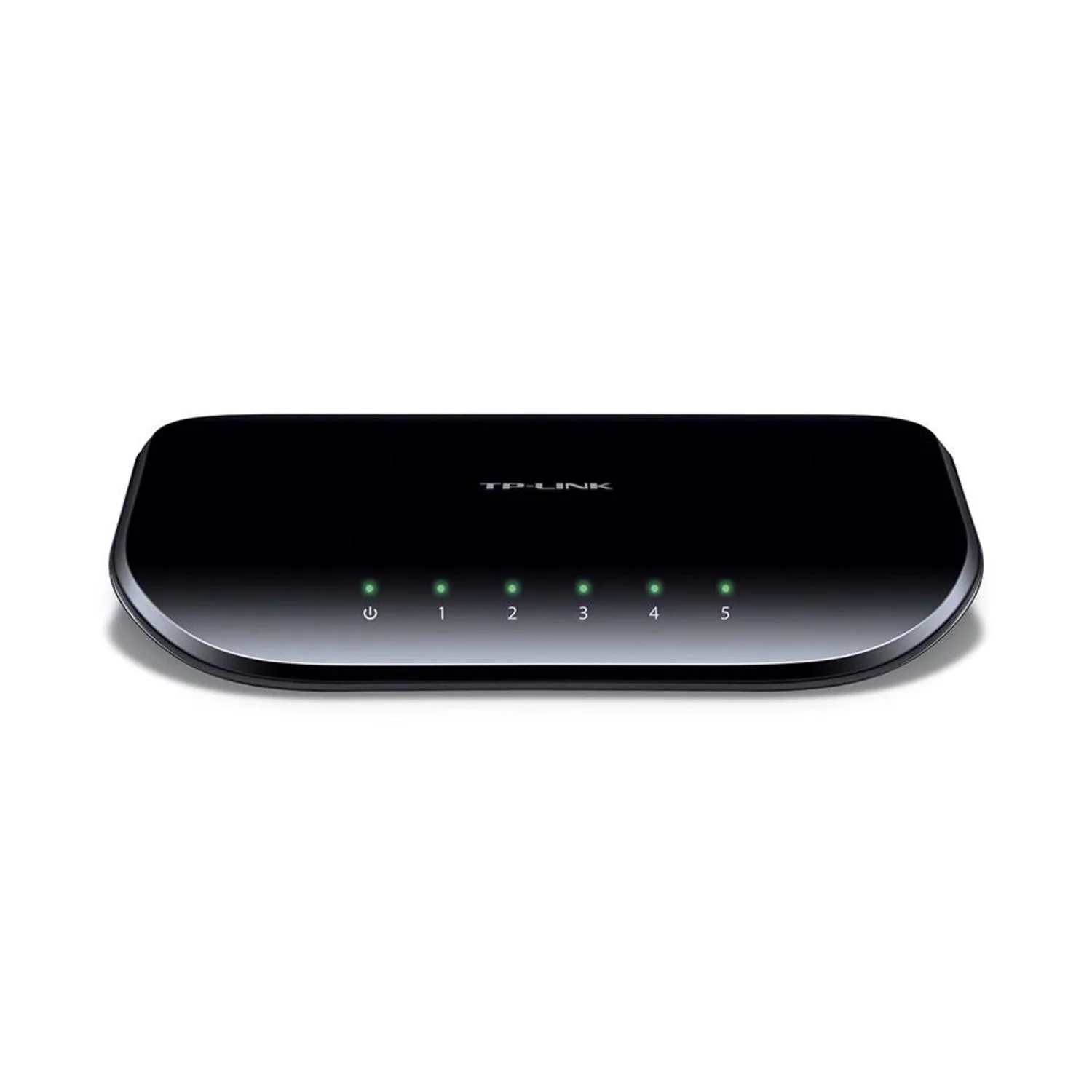

The TP-Link TL-SG1005D is a 5-port unmanaged gigabit Ethernet switch that provides a simple, plug-and-play way to expand your network. All five ports support 10/100/1000Mbps auto-negotiation with auto MDI/MDIX, eliminating the need for crossover cables or manual configuration.

The switch features energy-efficient green Ethernet technology that automatically reduces power consumption on idle ports and adjusts power output based on cable length, saving up to 85% compared to conventional switches. Its fanless, compact design suits desktop or wall-mount installation.

Key Features

• 5 Gigabit Ports – 10/100/1000Mbps auto-negotiation on all ports
• Plug and Play – No configuration required, unmanaged operation
• Auto MDI/MDIX – No crossover cables needed
• Green Ethernet – Powers down idle ports and adjusts for cable length, saving up to 85% power
• 802.3x Flow Control – Reliable data transfer with back pressure support
• Fanless & Silent – No moving parts, suitable for desk or living spaces
• Desktop or Wall Mount – Compact plastic case with mounting option

Specifications

• Ports: 5× 10/100/1000Mbps RJ45
• Switching Method: Store and Forward
• Power Supply: External 9V DC / 0.6A adapter
• Max Power Consumption: 3W
• Dimensions: 140 × 88 × 23mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: −40°C to 70°C
• Certifications: FCC, CE, RoHS

Ideal For

• Expanding home or office Ethernet networks
• Raspberry Pi clusters and multi-board setups
• Network-attached storage (NAS) and media server connections
• Workgroup and small business networking

Package Contents

• 1× TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
• 1× 9V 0.6A Power Adapter
• 1× Installation Guide
