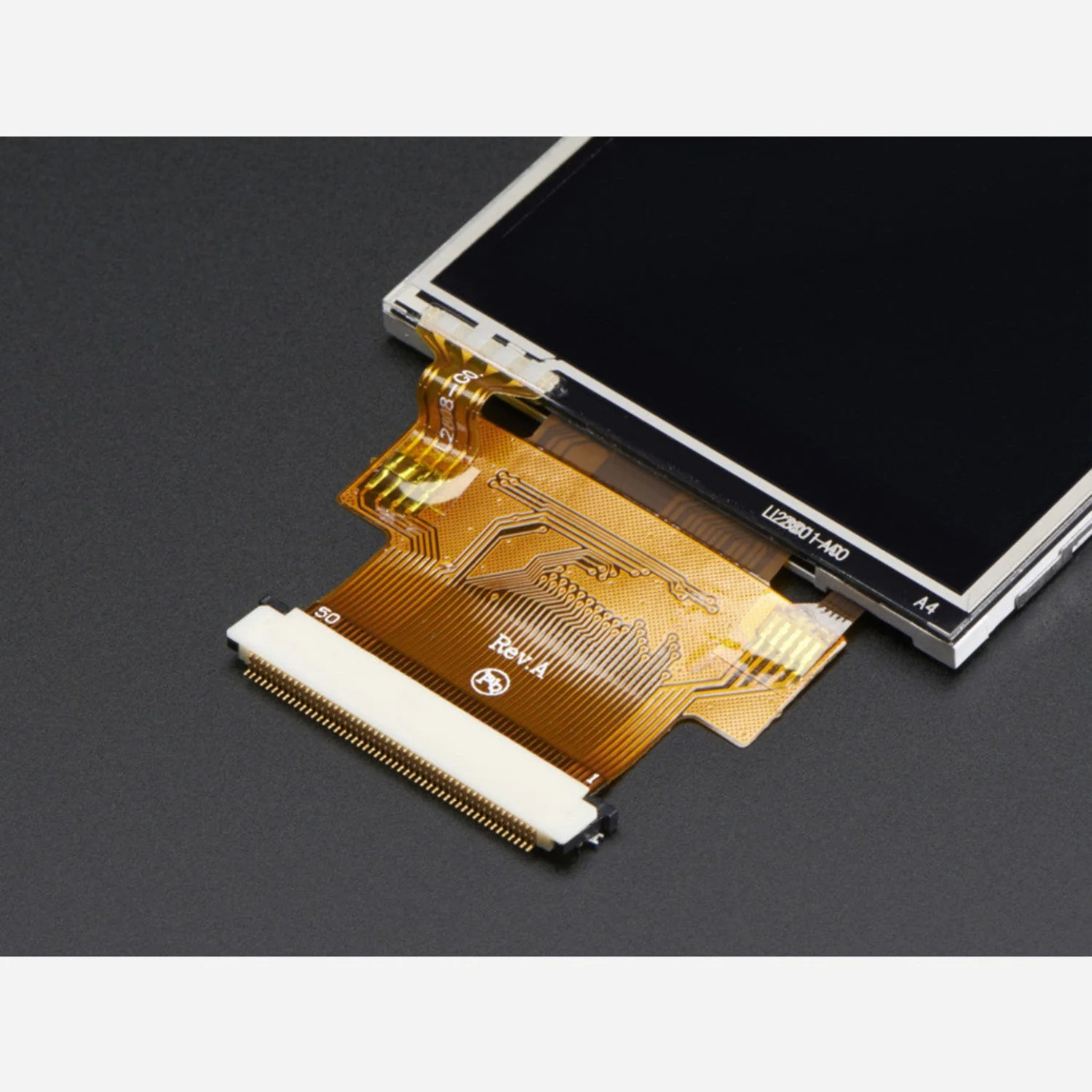

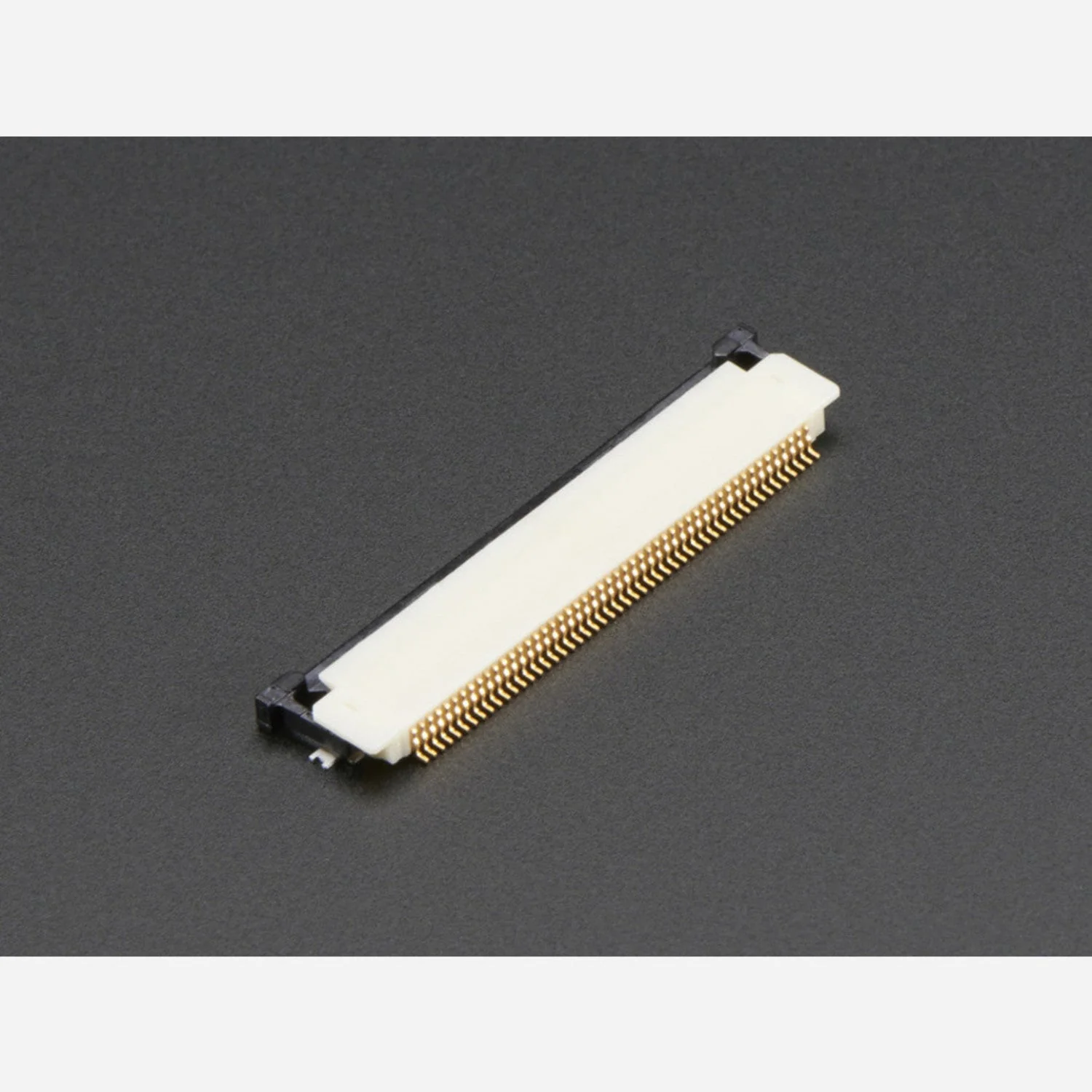

This 50-pin top-contact FPC connector is a surface-mount component for connecting 0.5mm pitch FPC/FFC cables to your custom PCB. It's compatible with many 50-pin displays including 2.8″ TFT panels with resistive touchscreens.

This is a fine-pitch SMT component — soldering requires experience with surface-mount techniques, flux, and fine-tip soldering equipment. For easier prototyping, consider soldering it to an FPC breakout board to access all 50 pins on standard 0.1″ headers.

Key Features

• 50-Pin, 0.5mm Pitch – Matches common FPC/FFC cable specifications
• Top-Contact Design – Cable contacts face upward when inserted
• Surface Mount – SMT footprint for custom PCB integration
• Flip-Lock Mechanism – Secure cable retention

Specifications

• Pins: 50
• Pitch: 0.5mm
• Contact Type: Top-contact
• Mounting: Surface mount (SMT)

Package Contents

• 1× 50-Pin 0.5mm Pitch Top-Contact FPC SMT Connector
