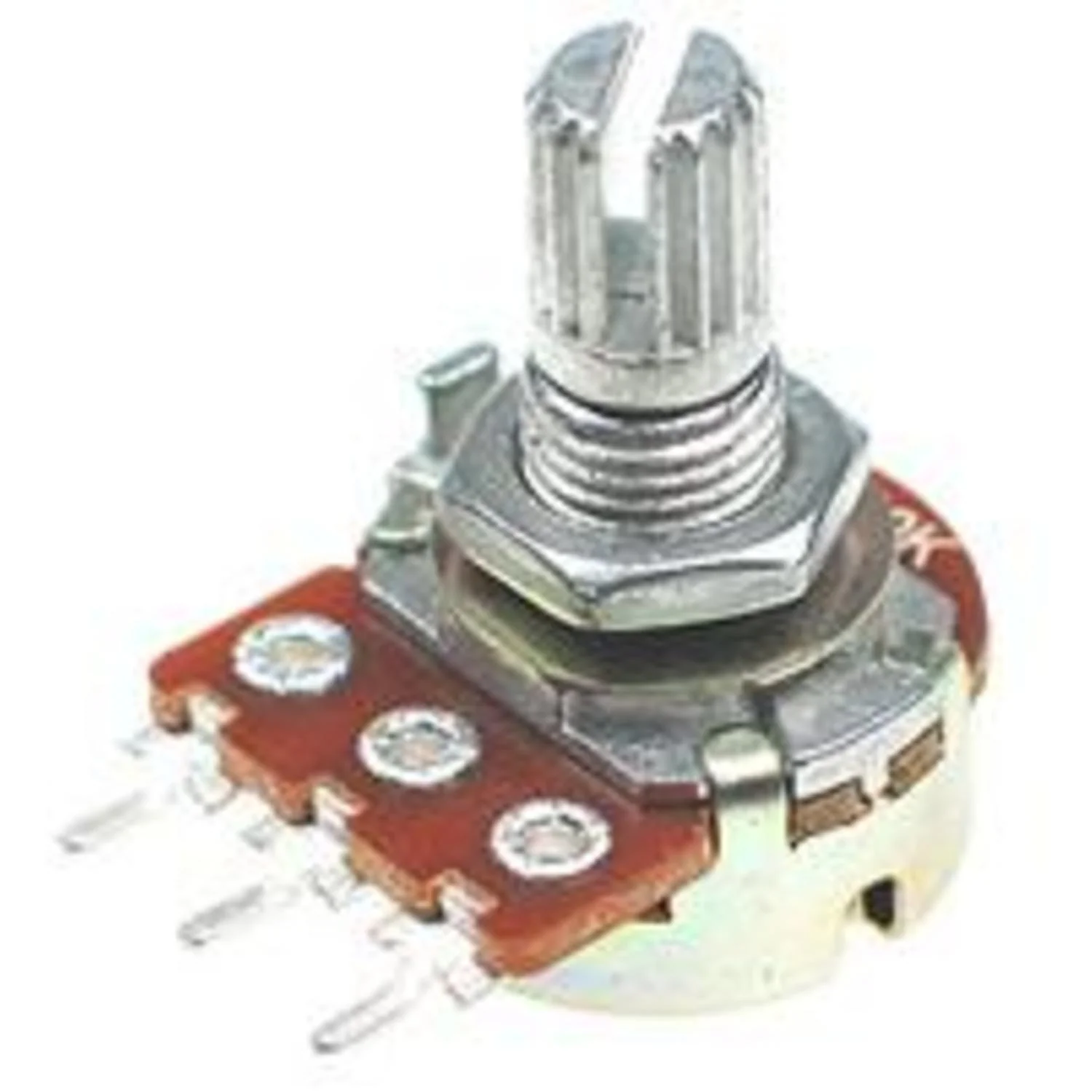

This 50KΩ single-turn potentiometer provides smooth linear (Type B) resistance adjustment, making it ideal for volume controls, brightness adjustments, and analogue input on Arduino and other microcontroller projects. The knurled shaft accepts standard potentiometer knobs for easy panel mounting.

Key Features

• 50KΩ Linear Taper (Type B) – Smooth, proportional resistance change across the full rotation
• Single-Turn – Full range in one rotation for quick adjustments
• Knurled Shaft – Accepts standard push-fit or set-screw knobs
• Panel Mountable – 7.5mm mounting hole for secure enclosure installation

Specifications

• Resistance: 50KΩ
• Taper: Type B (linear)
• Power Rating: ½W
• Turns: Single-turn
• Shaft Diameter: 5.5mm (knurled)
• Shaft Length: 10mm
• Mounting Hole: 7.5mm
• Manufacturer: Alpha

Ideal For

• Arduino and microcontroller analogue input projects
• Volume and brightness controls
• Panel-mounted user adjustment interfaces
• General-purpose variable resistance applications

Package Contents

• 1× 50KΩ Potentiometer
