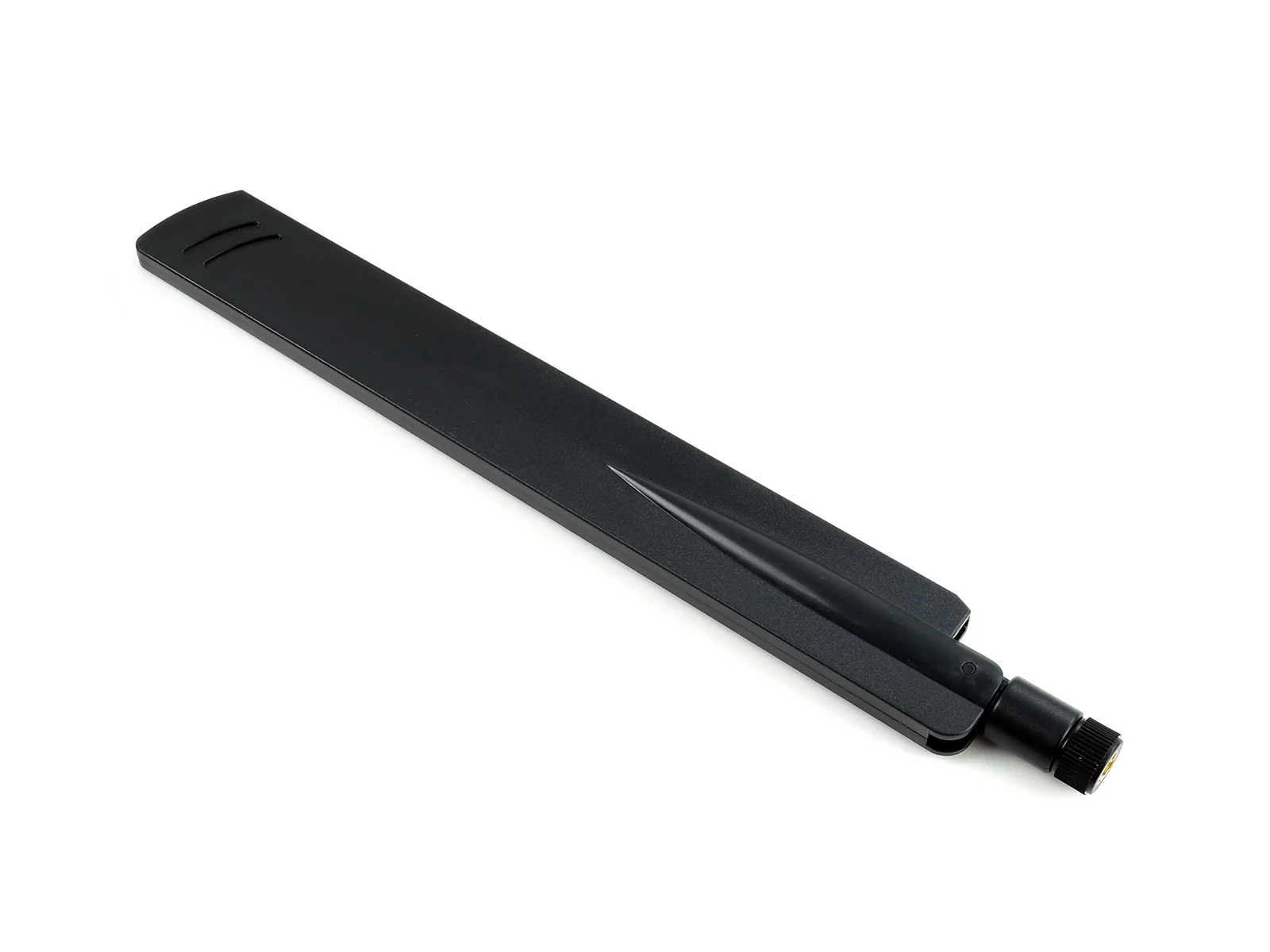

This 5G omni-directional antenna provides 18dBi gain across a wide 600–6000MHz frequency range, covering 5G, 4G, 3G, and GNSS bands. The omni-directional radiation pattern delivers consistent signal quality in all directions without needing to orient the antenna toward a specific tower.

It connects via an SMA male connector (needle inside) with a flexible pigtail cable terminating in an IPEX-4 (MHF4) connector, making it compatible with modules like the SIM8202G-M2 5G module and Raspberry Pi 5G HATs that use IPEX-4 antenna ports.

Key Features

• 18dBi High Gain – Strong signal enhancement for improved range and reliability
• Wide Frequency Coverage – 600–6000MHz spans 5G, 4G, 3G, and GNSS bands
• Omni-Directional – Consistent reception in all directions, no alignment needed
• SMA to IPEX-4 Connector – Pigtail cable for direct connection to 5G modules
• Lightweight & Compact – 220 × 24mm, just 34g
• Durable ABS Construction – Operates from −20°C to +85°C

Specifications

• Network Support: 5G / 4G / 3G / GNSS
• Frequency Band: 600–6000MHz
• Gain: 18dBi
• Impedance: 50Ω
• SWR: < 3.0
• Polarisation: Linear
• Connector: SMA (male, needle inside) to IPEX-4
• Material: ABS
• Dimensions: 220 × 24mm
• Weight: 34g
• Operating Temperature: −20°C to +85°C

Compatibility

• SIM8202G-M2 5G Module
• Raspberry Pi 5G HAT
• Any device with an IPEX-4 (MHF4) antenna connector

Package Contents

• 1× 5G/4G/3G/GNSS Omni-Directional Antenna with SMA to IPEX-4 pigtail
