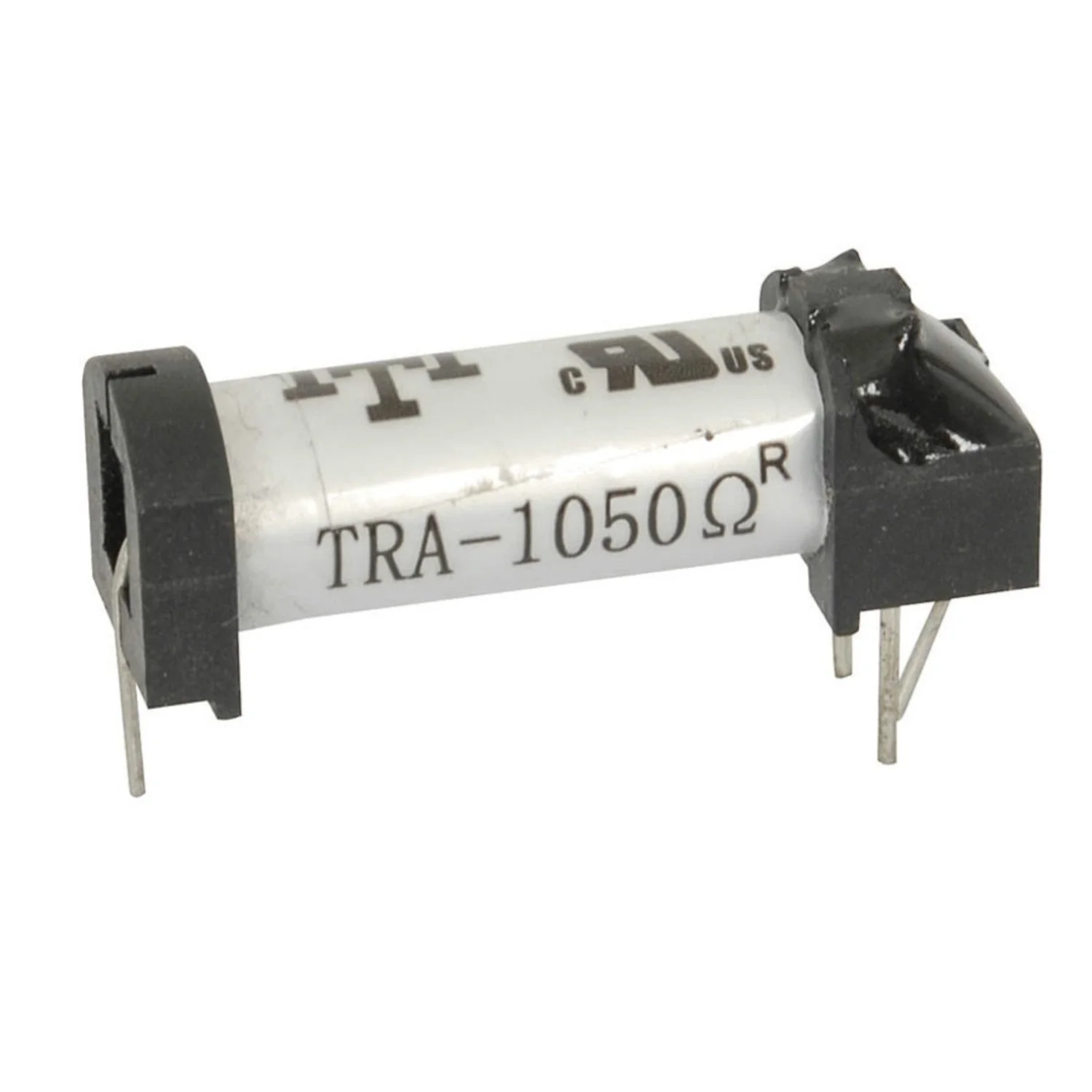

This small, lightweight 5V SPST reed relay is designed for PCB mounting in a standard DIL (Dual In-Line) package. It switches up to 1A DC with a low 0.1W power consumption, making it suitable for low-power switching applications in sensor circuits, security systems, and instrumentation.

Key Features

• Contact Format – SPST (Single Pole, Single Throw)
• Nominal Voltage – 5V DC
• Pickup Voltage – 3.5V DC
• Dropout Voltage – 0.5V
• Coil Resistance – 500Ω
• Coil Current – 20mA
• Power Consumption – 0.1W
• Maximum Switching Current – 1A DC
• Mounting – PCB (DIL package)

Ideal For

• Low-power switching in sensor circuits
• Security and alarm systems
• Test and measurement equipment
• Signal routing in instrumentation

Package Contents

• 1× 5V SPST DIL Reed Relay
