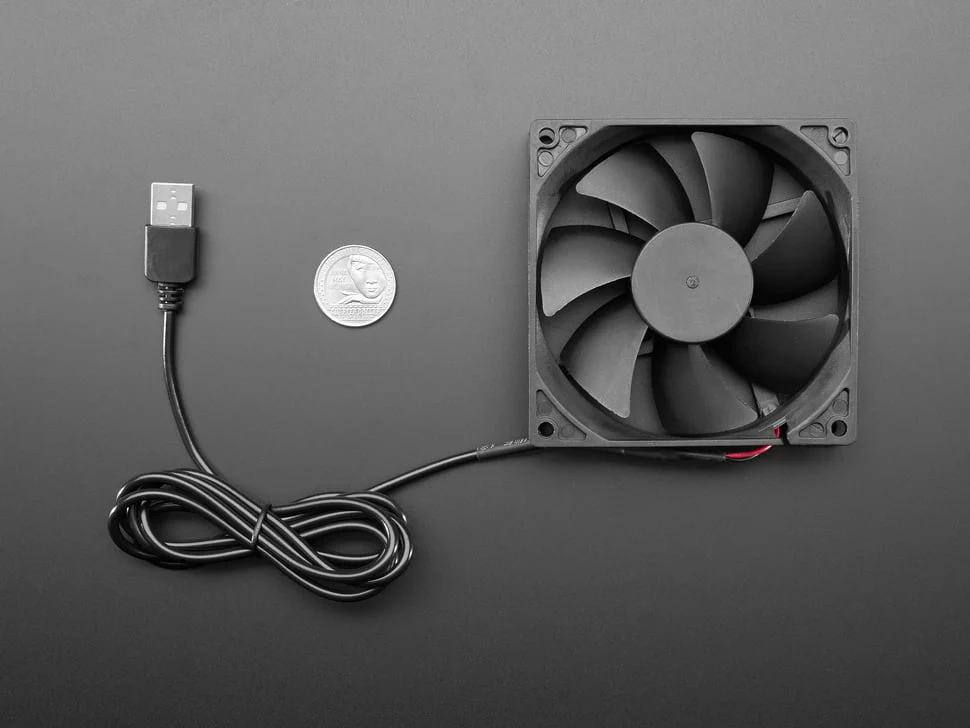

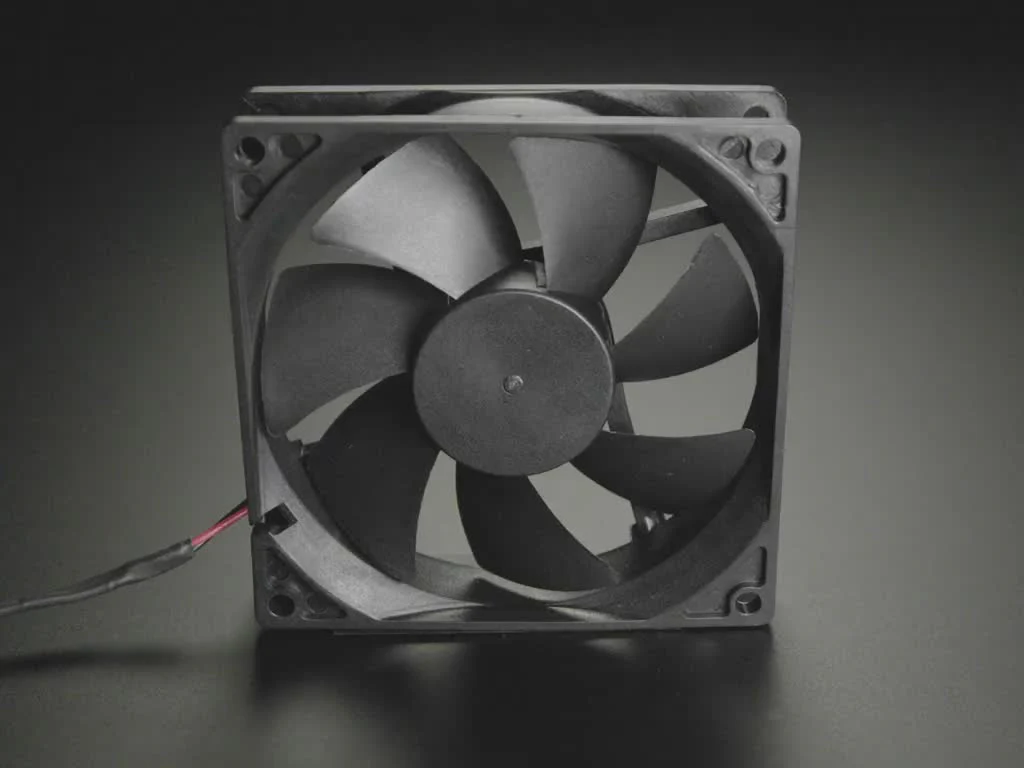

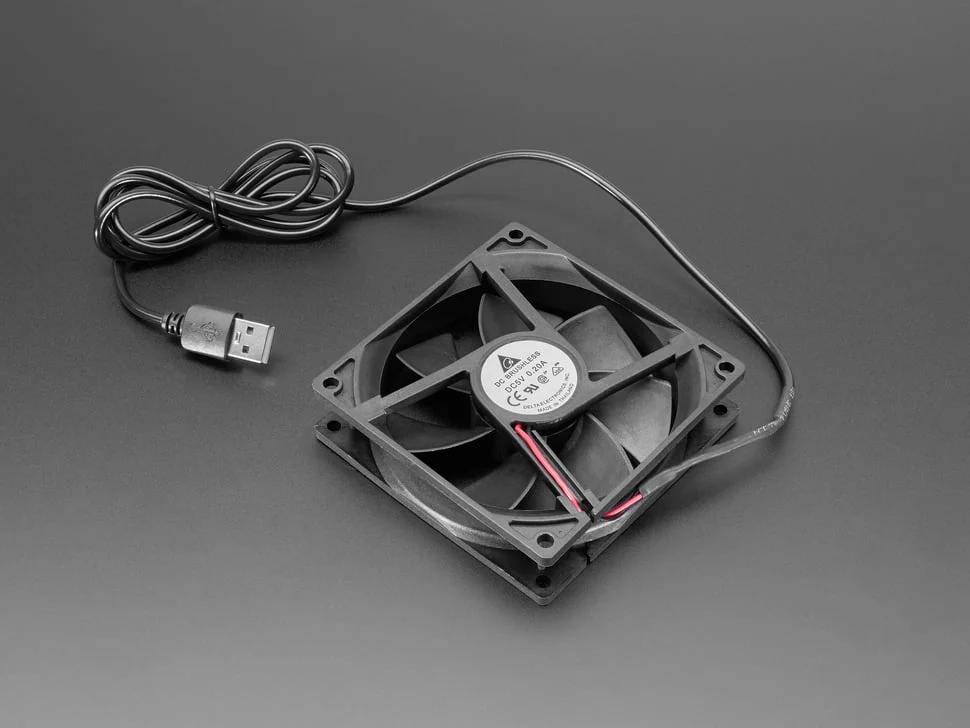

The largest fan in the 5V USB range, this 90mm cooling fan provides maximum airflow for electronics projects. Simply plug into any USB port for immediate cooling — no drivers or setup required.

The USB connector can be cut off to wire the fan directly to a 5V power source. While there's no built-in PWM or feedback pin, you can control fan speed using a motor controller, H-Bridge, or MOSFET. As an inductive load, a flyback diode is recommended to protect your circuitry.

Key Features

• Plug-and-Play USB Power – Connect to any USB port for instant cooling
• Direct 5V Wiring Option – Cut the USB connector to wire directly to a 5V source
• Largest in the Range – 90mm fan delivers the most airflow of all sizes
• Standard 25mm Depth – Common form factor compatible with most fan mounts
• Protective Grills – Front and back grills included for safety
• Secure Mounting – Includes screws and nuts for easy installation

Specifications

• Voltage – 5V DC
• Current Draw – 0.2A
• Fan Dimensions – 90 × 90 × 25mm
• Mounting Holes – 82 × 82mm spacing, 4.5mm diameter
• Cable Length – Approximately 1 metre (USB-A connector)

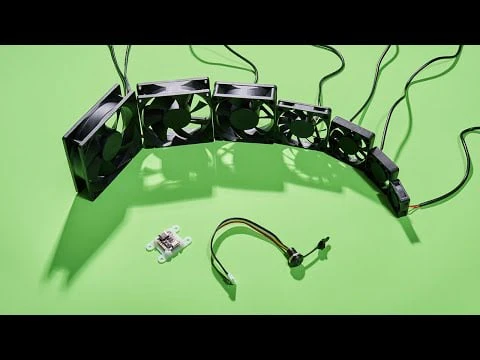

Also Available

• 5V Square USB Fan – 3 cm
• 5V Square USB Fan – 4 cm
• 5V Square USB Fan – 5 cm
• 5V Square USB Fan – 6 cm
• 5V Square USB Fan – 7 cm
• 5V Square USB Fan – 8 cm

Ideal For

• Cooling single-board computers and development boards
• FPGA and motor driver thermal management
• 3D printer electronics cooling
• Enclosure ventilation for electronics projects

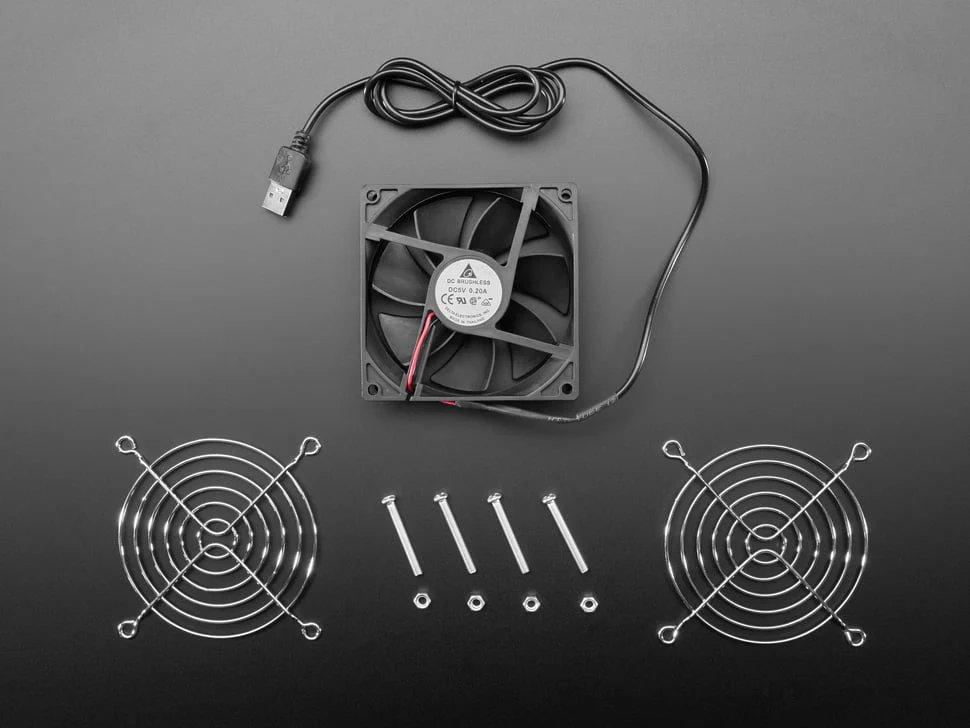

Package Contents

• 1× 5V USB Fan (90mm)
• 2× Protective grills (front and back)
• 4× Mounting screws and nuts
