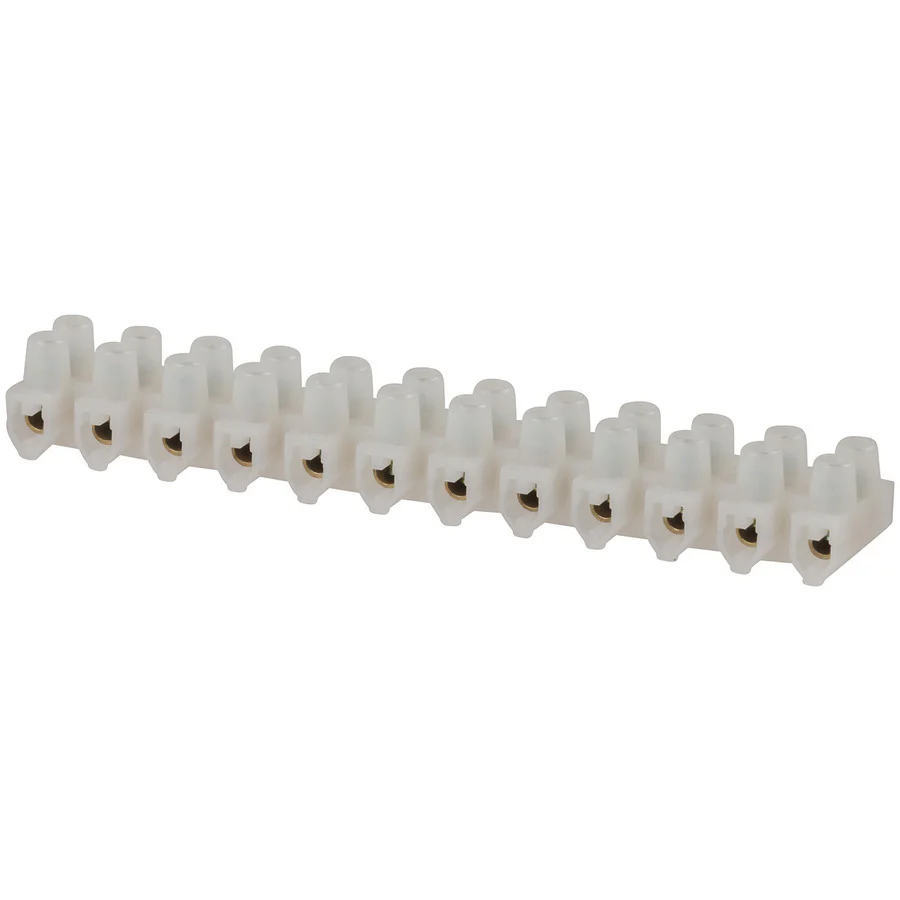

A 12-way screw terminal strip rated at 6A and 250VAC. Can be divided into smaller sections with a sharp knife, making it easy to create custom-sized terminal blocks for any project. Each terminal block includes a mounting hole on a fixed pitch.

Key Features

• 12-Way Configuration – Divisible into smaller sections as needed
• 6A / 250VAC Rating – Suitable for low-power mains and DC wiring
• Sturdy Screw Retention – Secure wire connections that resist vibration
• Nylon Body – Electrically insulating and heat resistant
• Mounting Holes – Fixed-pitch holes for panel mounting

Specifications

• Current Rating – 6A
• Voltage Rating – 250VAC
• Number of Ways – 12
• Cable Entry Diameter – 3.3mm
• Terminal Spacing – 10mm pitch
• Strip Length – 114.5mm
• Body Material – Nylon
• Operating Temperature – −35°C to 110°C
• Part Number – HM-3194
• Warranty – 3 months

Ideal For

• Joining and distributing wires in electronics enclosures
• Panel wiring and prototyping
• Custom terminal blocks cut to size

Package Contents

• 1× 6A 12-way screw terminal strip
