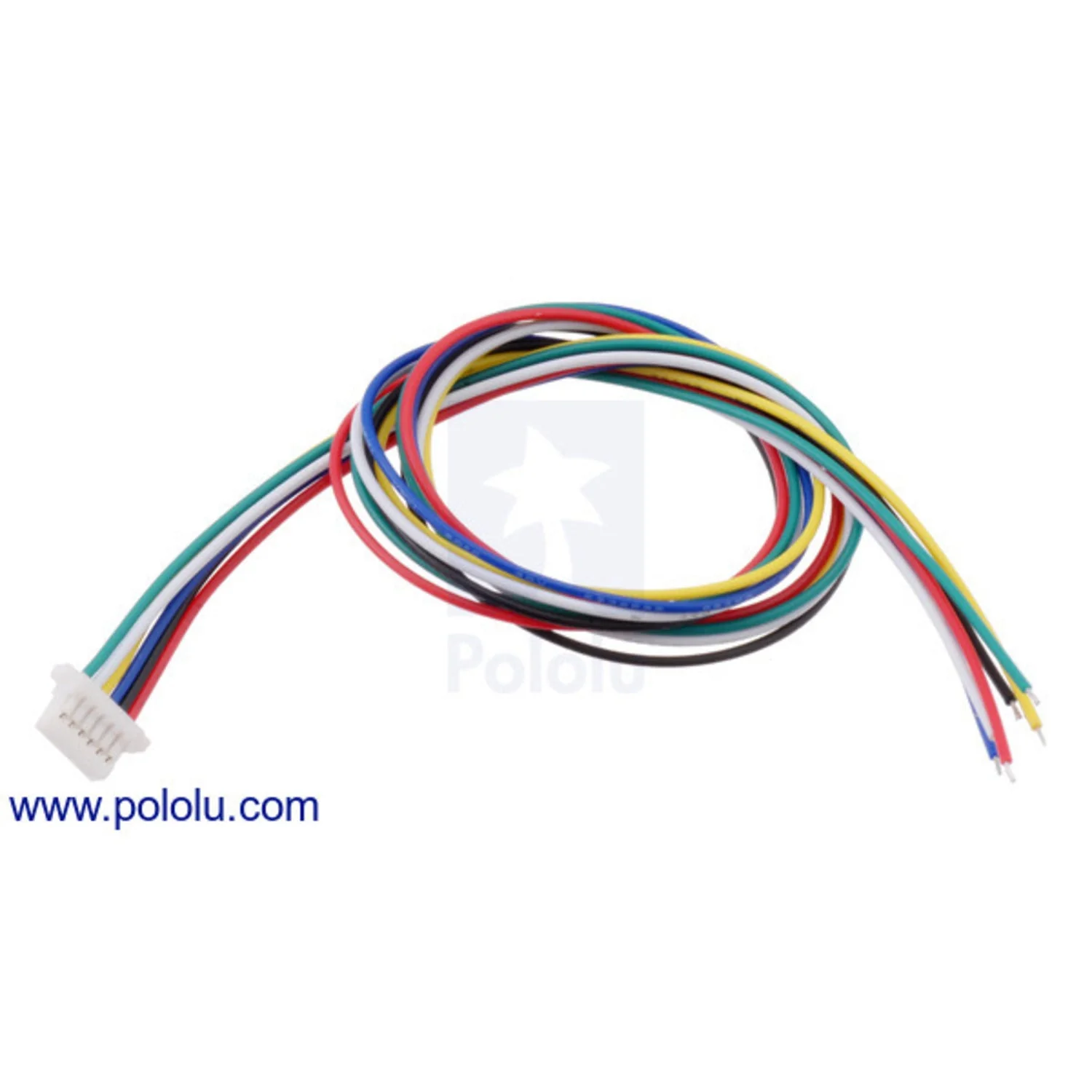

A 300mm (12″) cable with a female JST SH-style connector on one end and six unterminated colour-coded 28 AWG wires on the other. Designed for use with Pololu Micro Metal Gearmotor Encoders (both top-entry and side-entry connector versions).

The unterminated ends can be cut to length and fitted with crimp pins and housings for breadboard, perfboard, or 0.1″ header connections.

Key Features

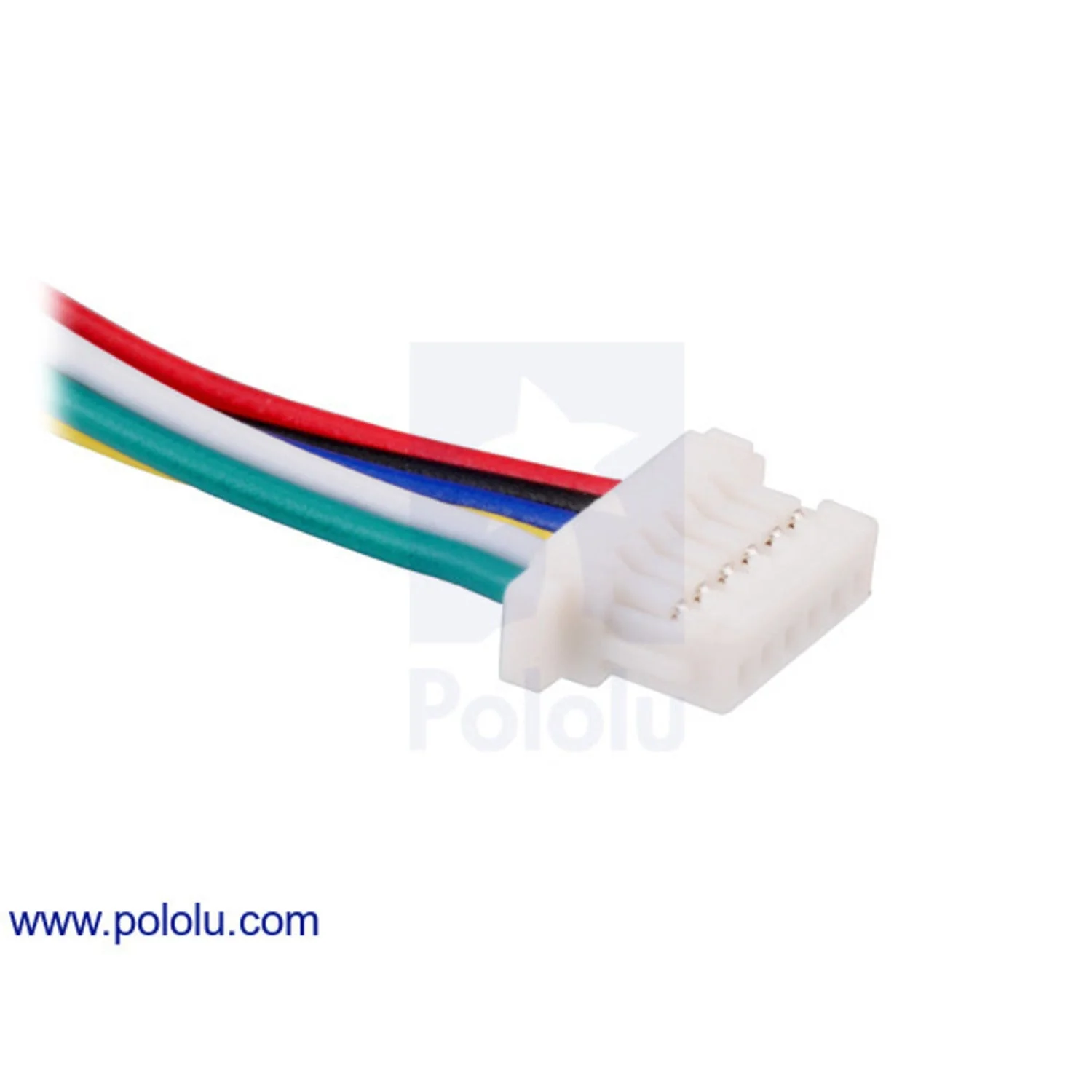

• JST SH-Style Connector – Mates directly with Pololu micro metal gearmotor encoders
• 6 Colour-Coded Wires – Easy identification for motor and encoder connections
• 28 AWG – Flexible fine-gauge wire for compact wiring
• Unterminated End – Cut to length and add your own connectors

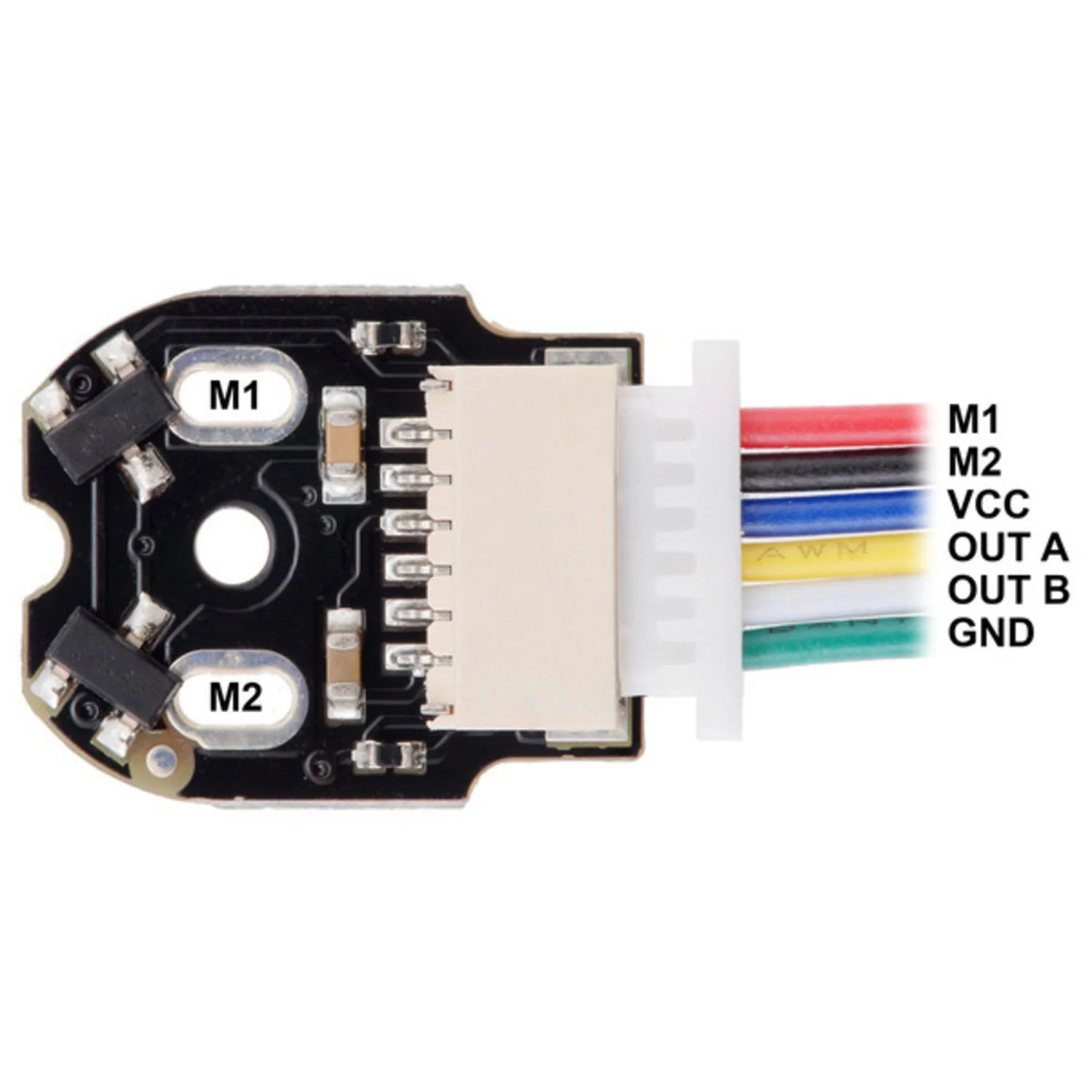

Wire Colour Guide (Encoder Use)

• Red – Motor power (terminal 1)
• Black – Motor power (terminal 2)
• Blue – Encoder Vcc
• Yellow – Encoder A output
• White – Encoder B output
• Green – Encoder GND

Specifications

• Length – 300mm (12″)
• Conductors – 6
• Wire Gauge – 28 AWG
• Connector – Female JST SH-style (one end), unterminated (other end)

Ideal For

• Pololu Micro Metal Gearmotor Encoder connections
• Small motor and sensor wiring
• Custom cable assemblies with JST SH connectors

Package Contents

• 1× 6-pin female JST SH-style cable (300mm)
