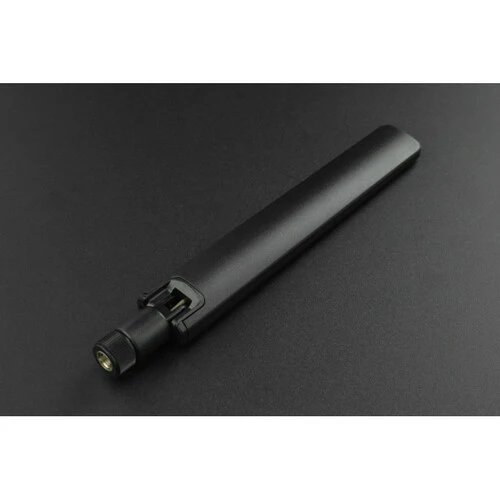

A wideband 5G antenna covering 600–6000MHz, compatible with all major cellular frequency bands (5G/4G/3G/2G) as well as Wi-Fi. Features an SMA connector with IPEX4 pigtail for easy connection to 5G modules, routers, and access points.

The antenna supports 90° bending for flexible pointing and positioning. Backward compatible with LTE, GSM, UMTS, and Wi-Fi applications.

Key Features

• Wideband Coverage – 600–6000MHz spans 5G, 4G, 3G, 2G, and Wi-Fi bands
• 5dBi Gain – Enhanced signal strength for improved throughput
• SMA Connector – Standard interface with IPEX4 pigtail
• 90° Bendable – Flexible pointing for optimal signal direction
• Compact Design – 47mm diameter × 30mm height

Specifications

• Frequency Range – 600–6000MHz
• Impedance – 50Ω
• VSWR – <3
• Gain – 5dBi
• Connector – SMA with IPEX4 pigtail (11.5mm)
• Operating Temperature – −40°C to 85°C
• Humidity – Non-condensing, 65°C at 95% RH
• Dimensions – 47mm diameter × 30mm height

Ideal For

• 5G module and router signal enhancement
• IoT gateways and access points
• Cellular communication projects

Package Contents

• 1× 600–6000MHz 5G Antenna
