The 64×64 RGB LED Matrix with 3mm pitch features 4096 bright RGB LEDs in a 192×192mm panel. This high-density display offers a good balance between pixel density and panel size, suitable for indoor signage and video wall applications.

This panel uses a non-standard 5-address (ABCDE) multiplexing system. Many standard drivers only support 4-address (ABCD) setups. Compatible controllers include the RGB Matrix Bonnet for Raspberry Pi, RGB Matrix HAT (both require a solder jumper), and Matrix Portal (jumper required). Arduino shields with the Adafruit library and HDMI driver boards do not support 5-address multiplexing. The SmartLED Shield with Teensy 3.5/3.6 has the hardware for 5-address panels and sufficient RAM, but the power plug must be manually soldered or adapted due to shield overlap.

Key Features

• 3mm Pixel Pitch – High density for sharp indoor displays
• 4096 RGB LEDs – 64×64 resolution with full-colour output
• 5-Address Multiplexing – ABCDE system with 1:32 scan rate

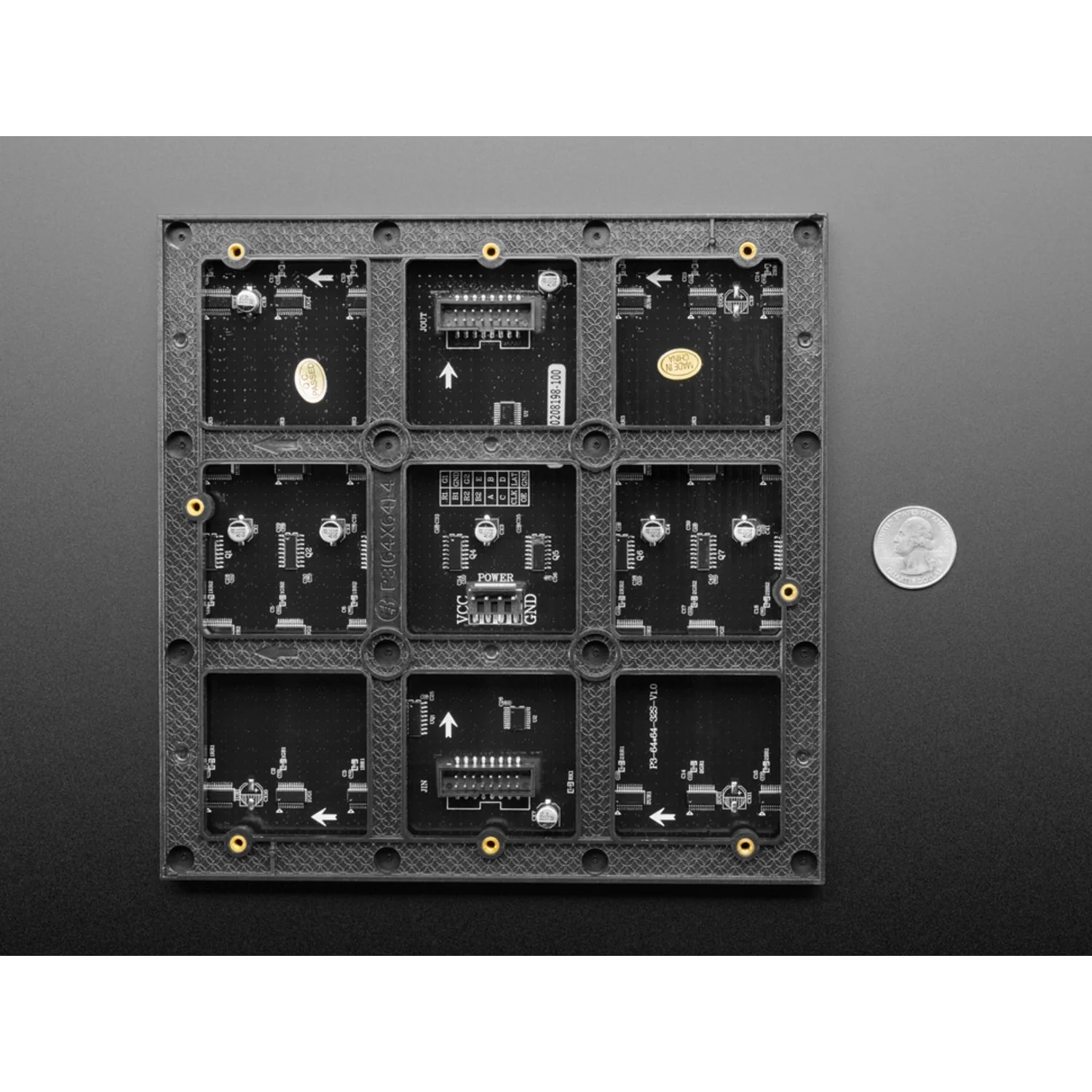

• Chainable – IDC input/output connectors allow multiple panels to be daisy-chained
• Compact Size – 192×192mm panel dimensions

Specifications

• Pixel Pitch: 3mm
• Resolution: 64×64 (4096 LEDs)
• Scan Rate: 1:32 (5-address ABCDE)
• Operating Voltage: 5V
• Dimensions: 192×192mm

Also Available

• 64×64 RGB LED Matrix Panel – 2mm Pitch
• 64×64 RGB LED Matrix – 2.5mm Pitch
• 64×64 RGB LED Matrix Panel – 3mm Pitch (DFRobot)
• 64×64 RGB LED Matrix Panel – 2.5mm Pitch with 45° Curb-Cut

Ideal For

• Indoor displays and digital signage
• Video walls and tiled display installations
• Raspberry Pi projects using the RGB Matrix Bonnet or HAT
• Teensy-based LED projects with SmartLED Shield

Package Contents

• 1× 64×64 RGB LED Matrix Panel (3mm pitch)
• 1× IDC ribbon cable (~160mm)
• 1× Power cable (~500mm)
