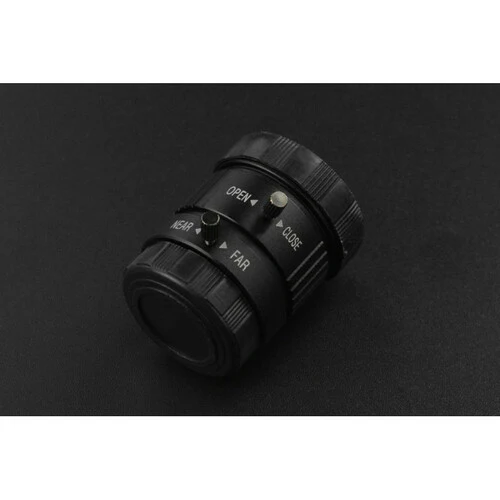

The 6mm Industrial Wide Angle Lens is a 3-megapixel CS-mount lens with a 63° field of view, designed for use with the Raspberry Pi High-Quality Camera and Jetson Nano 12.3MP camera. Its wide angle and adjustable focus ring make it well suited for CCTV, wildlife monitoring, security cameras, and doorbell cameras.

The lens screws directly into any CS-mount camera module. A C/CS connection ring is included for use with C-mount cameras. Front and back dust caps are provided for protection when the lens is not in use.

Key Features

• 63° Field of View – Wide angle for capturing larger areas
• CS Mount – Compatible with Raspberry Pi HQ Camera and Jetson Nano camera
• Adjustable Focus – Manual focus ring for precise subject focusing
• 3 Megapixel – Sharp image resolution
• Aluminium Alloy Body – Durable industrial construction
• Dust Caps Included – Front and back covers for lens protection

Specifications

• Focal Length: 6.0mm
• Image Format: 1/2"
• Relative Aperture: F1.2
• Mount: CS
• Field of View: 63°
• Back Focal Length: 7.53mm
• Aperture Control: Manual
• Minimum Object Distance: 0.2m
• Dimensions: ø30×34mm
• Weight: 53g
• Construction: Aluminium alloy + 6G glass elements

Ideal For

• Raspberry Pi High-Quality Camera projects
• Jetson Nano vision applications
• CCTV and security camera systems
• Wildlife and doorbell cameras

Package Contents

• 1× 6mm Industrial Wide Angle Lens
• 2× Dust caps (front and back)
• 1× C/CS connection ring
