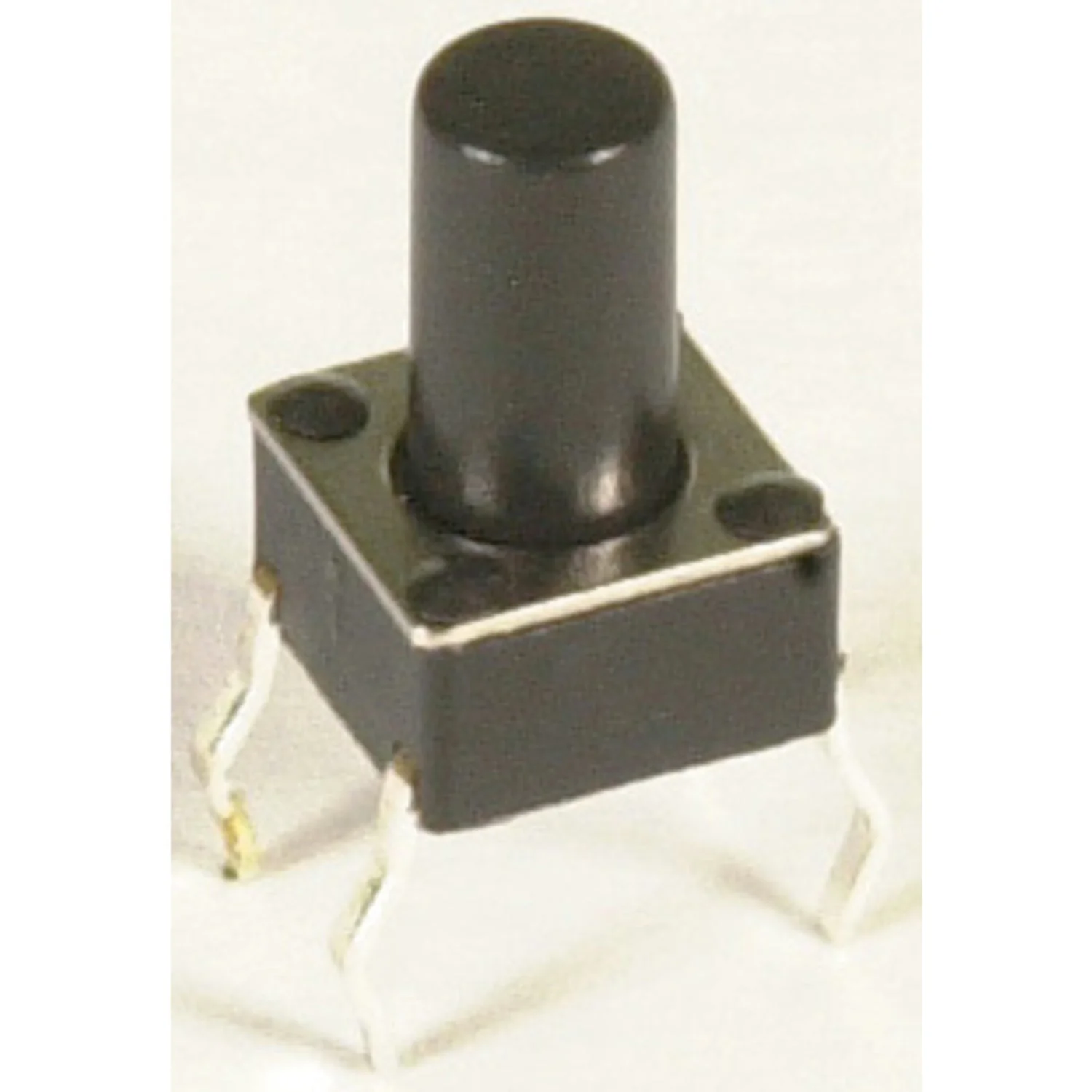

A normally open SPST micro tactile switch in a compact 6×6mm package. This single-action momentary push button is designed for PCB mounting and is suitable for a wide range of electronics projects and prototyping applications.

Specifications

• Switch Type: Tactile push button
• Configuration: SPST, normally open
• Function: Single-action momentary
• DC Voltage: 12V
• DC Current Rating: 50 mA
• Contact Resistance: 100 mΩ
• Insulation Resistance: 100 MΩ
• Dielectric Strength: 100V
• Actuator Diameter: 3.4mm
• Actuator Height: 6mm
• Mounting: PCB pins
• Material: Plastic
• Colour: Black
• Dimensions: 6×6×3.2mm

Ideal For

• PCB prototyping and production
• Arduino and microcontroller input
• General electronics projects
