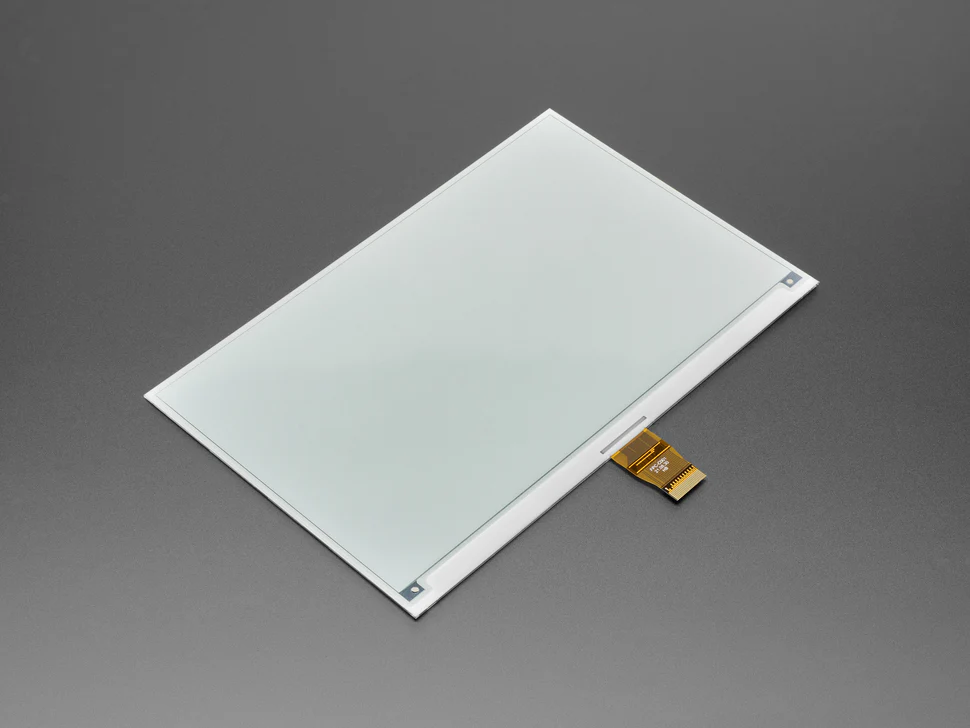

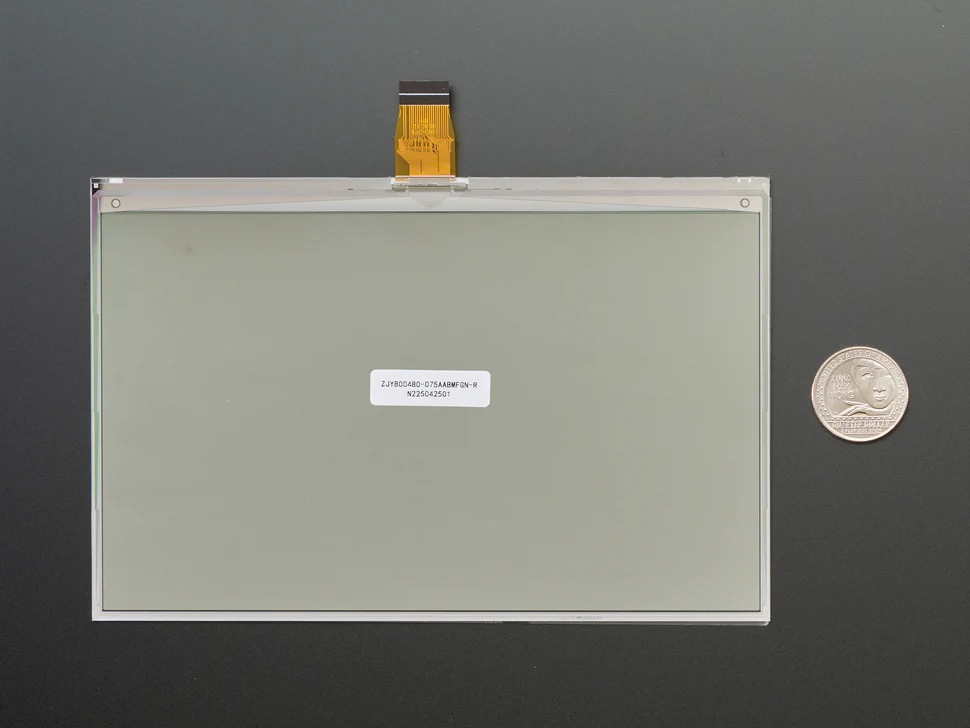

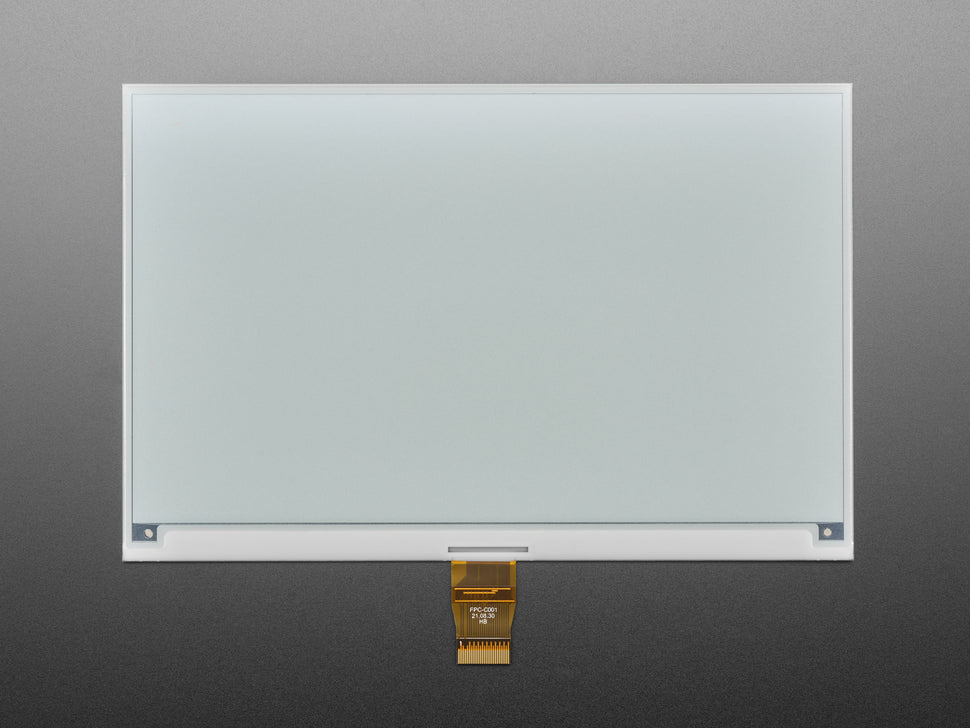

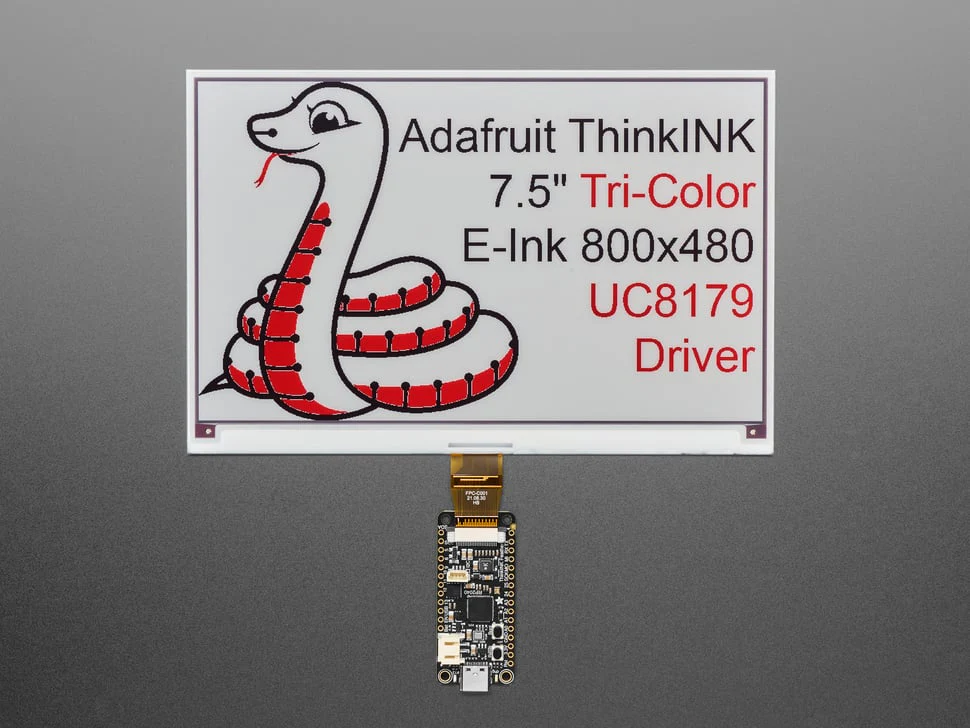

This 7.5" tri-colour e-ink bare display features 800×480 pixels in red, black, and white. E-paper displays are daylight-readable, ultra-low power, and retain their image even when completely depowered — ideal for battery-powered and always-on signage applications.

This is the bare display element with a standard 24-pin FPC e-paper connector. A compatible driver board is required (sold separately) to interface it with your microcontroller or development board. The display uses the UC8179 chipset.

Key Features

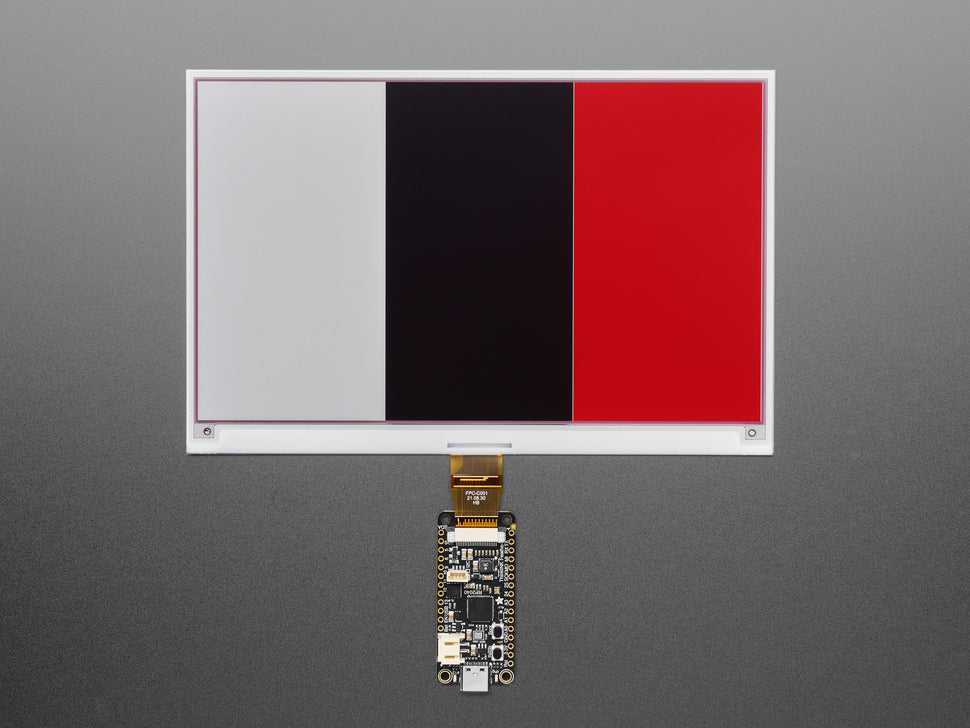

• 7.5" Tri-Colour E-Ink – Red, black, and white pixels on a white background
• 800×480 Resolution – Sharp, detailed text and graphics
• UC8179 Chipset – Ensure your driver firmware supports this chipset
• 24-Pin FPC Connector – Standard e-paper interface for compatible driver boards
• Ultra-Low Power – Image persists without any power draw
• Daylight Readable – No backlight needed; reflective display works in ambient light

Ideal For

• DIY e-ink display projects
• Low-power signage and price tags
• Battery-powered information displays
• Custom e-paper installations

Package Contents

• 1× 7.5" 800×480 Tri-Colour eInk / ePaper Bare Display

Resources

• Adafruit Guide – Preparing Graphics for E-Ink Displays
• Adafruit EPD Arduino Library (GitHub)
