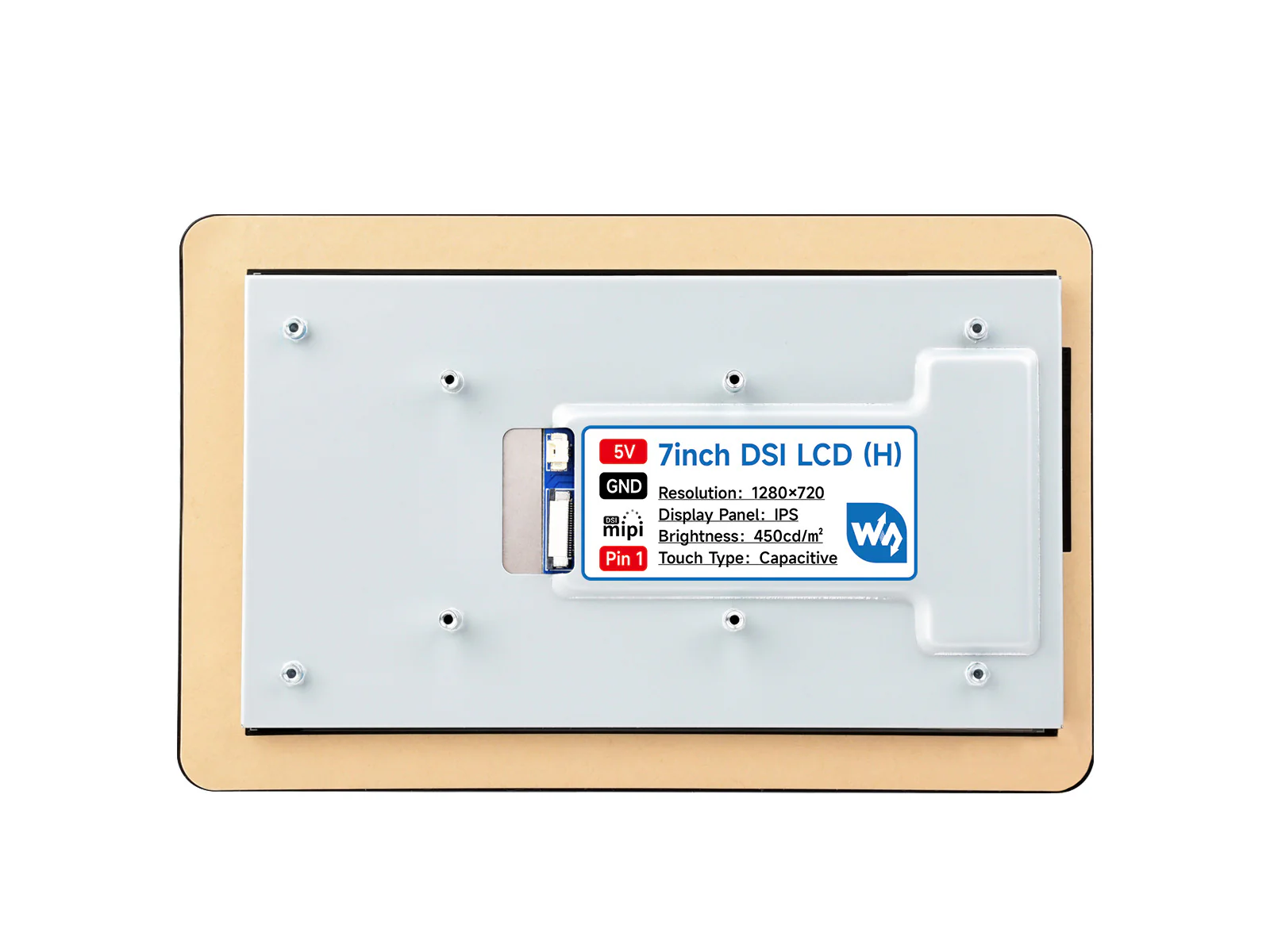

This 7" DSI capacitive touchscreen from Waveshare features a 1280×720 IPS panel with 10-point multi-touch, toughened glass with optical bonding, and an anti-fingerprint coating. The integrated driver circuitry connects via a single FPC cable, resulting in a slim 9.3 mm total thickness.

Compatible with Raspberry Pi (via MIPI-DSI), ESP32-P4, RK3506, and RK3576 platforms, the display supports Raspberry Pi OS, LVGL GUI programs, Buildroot, Ubuntu, Debian, and Android. Software-controlled backlight adjustment lets you set brightness to suit ambient conditions.

Key Features

• 1280×720 IPS Panel – Vivid colours with 170° wide viewing angle
• 10-Point Capacitive Touch – Smooth multi-touch gesture support
• Toughened Glass – Optically bonded, scratch-resistant, and dustproof
• Anti-Fingerprint Coating – Resists smudges for a clean appearance
• 450 cd/m² Brightness – Clearly visible in well-lit environments
• Software Backlight Control – Adjustable brightness via software
• Slim Profile – Just 9.3 mm total thickness with integrated driver circuitry
• DSI Interface – Direct connection to Raspberry Pi and compatible boards

Compatibility

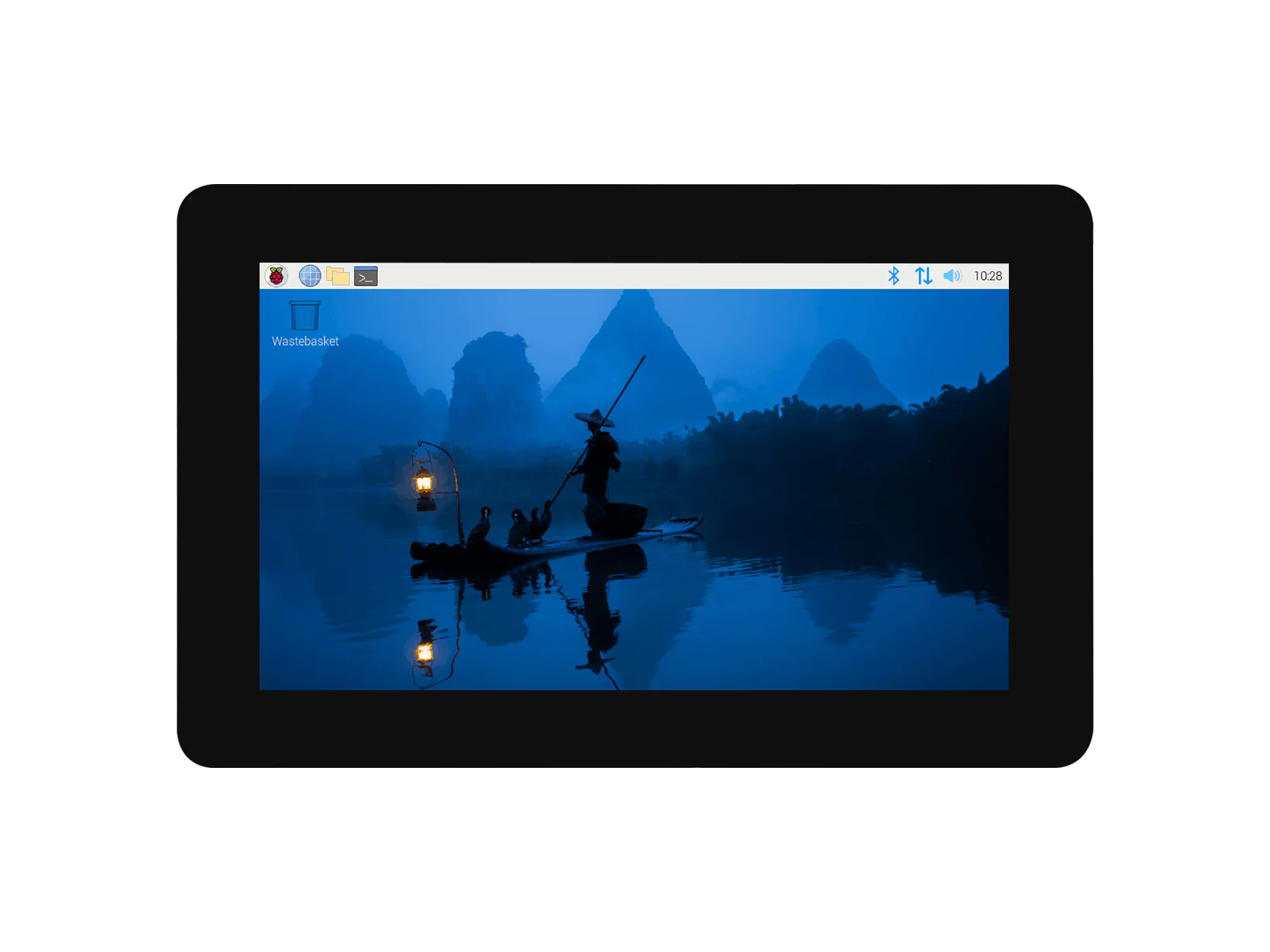

• Raspberry Pi – Various versions of Raspberry Pi OS

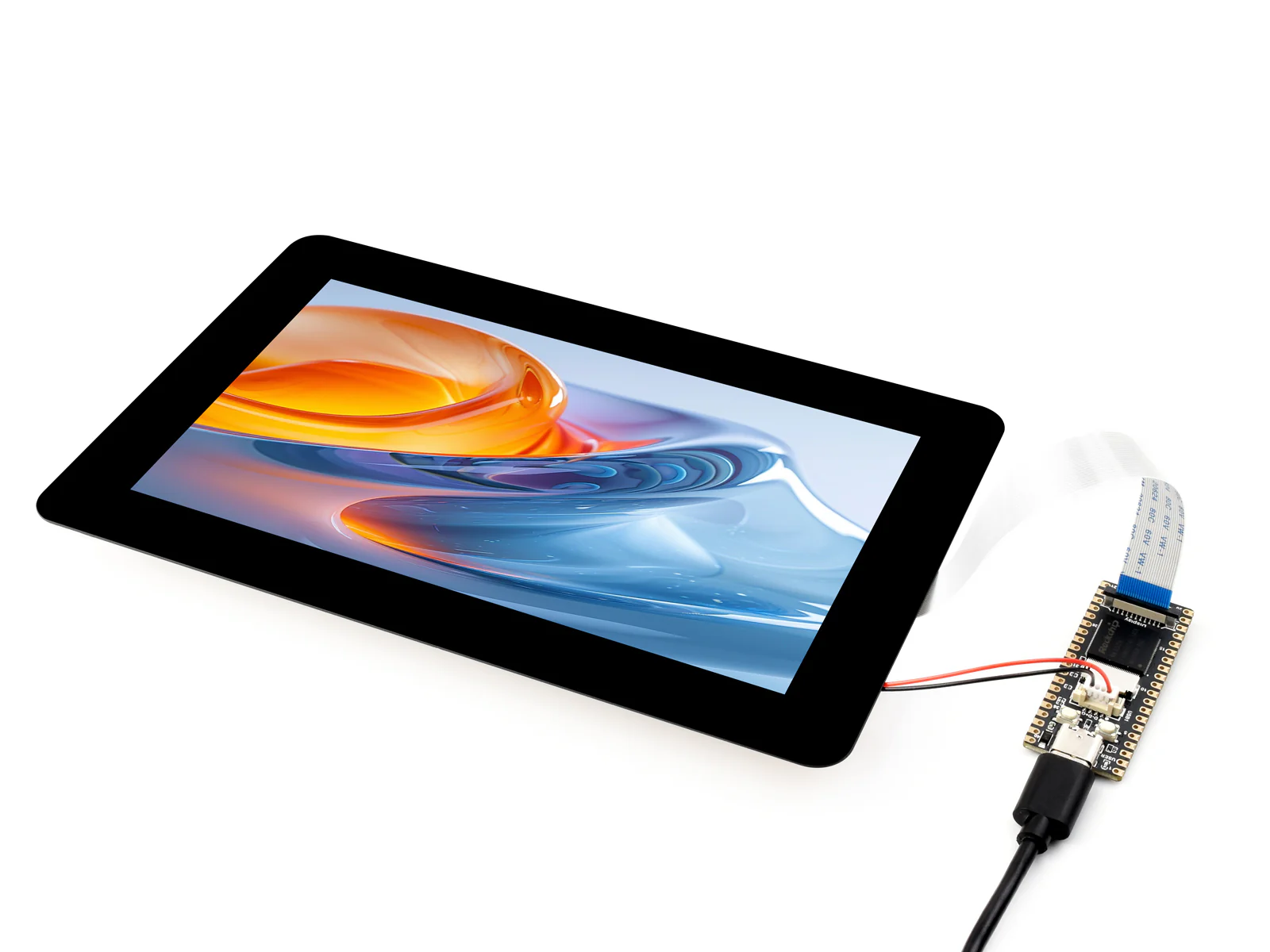

• ESP32-P4 – LVGL GUI programs
• RK3506 / RK3576 – Buildroot, Ubuntu, Debian, Android

Ideal For

• Raspberry Pi touchscreen projects and kiosks
• Embedded HMI and industrial interfaces
• IoT display panels
• Portable development setups

Package Contents

• 1× 7" DSI LCD (H)
• 1× 12 cm MIPI-DSI cable
• 1× MX 1.25 2-pin to 2.54 3-pin cable
• 2× FFC 22-pin cables (opposite sides)
• 1× Screw pack

Resources

• Waveshare Wiki – 7" DSI LCD (H)
